Festo CPV14-GE-MP-8 & CPV-14-VI Valve Terminal Block, 24V DC

Compact Performance pneumatic valve terminal with multi-pin electrical connection

Overview

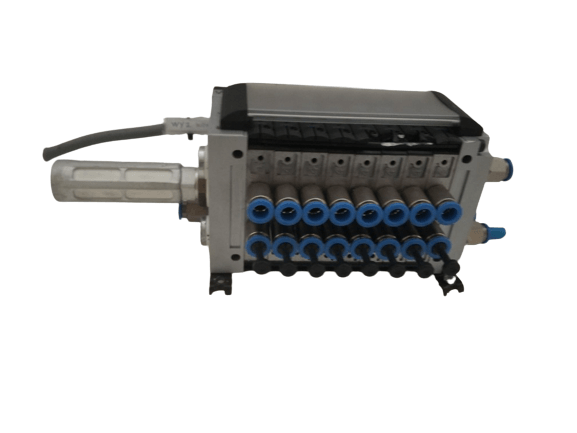

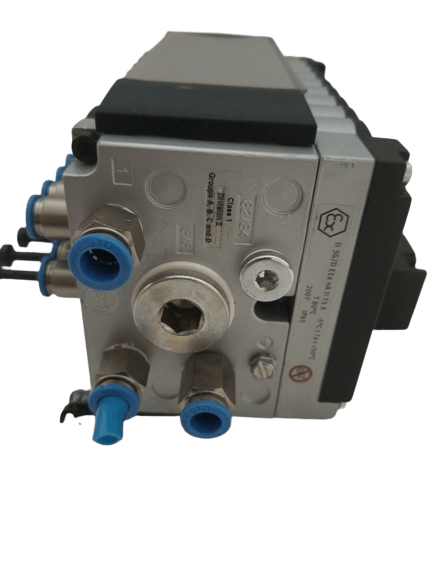

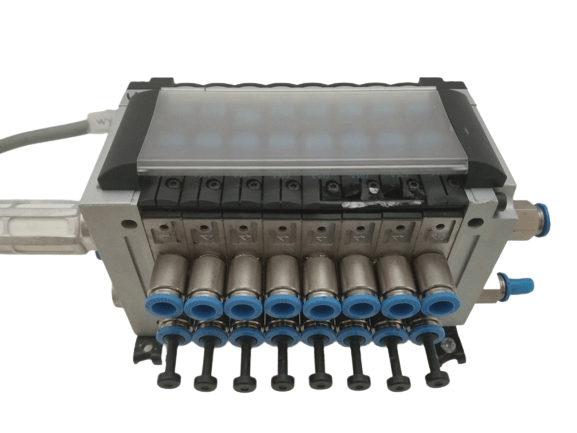

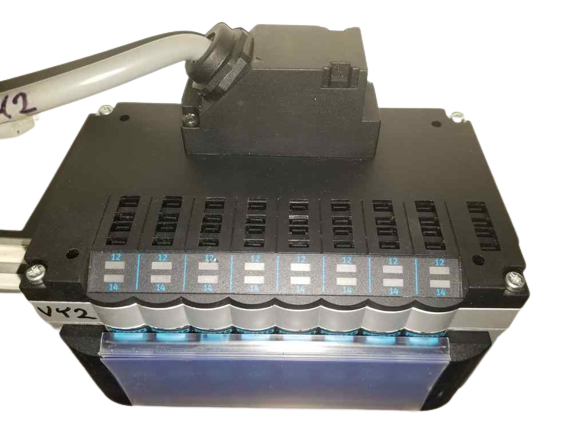

This is a Festo CPV14-GE-MP-8 valve terminal (paired with the CPV-14-VI base, part no. 18210), part of Festo's CPV Compact Performance valve terminal series. Built around electromagnetically actuated piston spool valves in valve size 14 mm, this terminal supports up to 8 valve positions and 16 valve functions across up to 2 pressure zones, connected via a multi-pin Sub-D plug for combined electrical and pneumatic integration. Rated IP65, it's designed for demanding pneumatic control applications in industrial automation.

Key Features

  • Up to 8 valve positions: Supports up to 16 solenoid coils / valve functions across up to 2 pressure zones.
  • Multi-pin plug connection: Sub-D 25-pin plug integrates electrical and pneumatic connections via a single cable, IP65 protected.
  • Robust IP65 housing: Sealed construction suited to demanding industrial environments.
  • Wide pressure range: Operating pressure -0.9 to 10 bar; pilot pressure 3 to 80 bar.
  • Internal or external pilot air supply: Flexible configuration to match system design.
  • 100% duty cycle: Rated for continuous operation without derating.

What's Included

Model Function Qty
CPV14-GE-MP-8 8-position valve terminal, multi-pin connection 1
CPV-14-VI Base/valve terminal type 10 assembly 1

Part No.: CPV-14-VI 18210. Note: onboard solenoid valve type configuration may vary by unit.

Technical Specifications

Operating voltage: 24 V DC (+10/-15%).

Electrical power consumption: 1.5 W (0.95 W at 21V).

Residual ripple: 4 Vss; duty cycle 100%.

Operating medium: Compressed air per ISO 8573-1:2010 [7:4:4].

Operating pressure: -0.9 to 10 bar (-0.09 to 1 MPa).

Pilot pressure: 3 to 80 bar (0.3 to 8 MPa).

Max. valve positions / functions / pressure zones: 8 positions / 16 functions / 2 zones.

Actuation: Electric; sealing principle soft; valve size 14 mm.

Protection: IP65.

Media / ambient temperature: -5°C to 50°C; storage -20°C to 40°C.

Electrical connection: 25-pin Sub-D multi-pin plug (KMP cable compatible).

Compatibility & Applications

Part of Festo's CPV Compact Performance valve terminal range, this unit is well suited to industrial pneumatic control applications needing compact, multi-valve actuation with simplified electrical/pneumatic cabling, such as automated machinery, assembly lines, and process automation systems.
