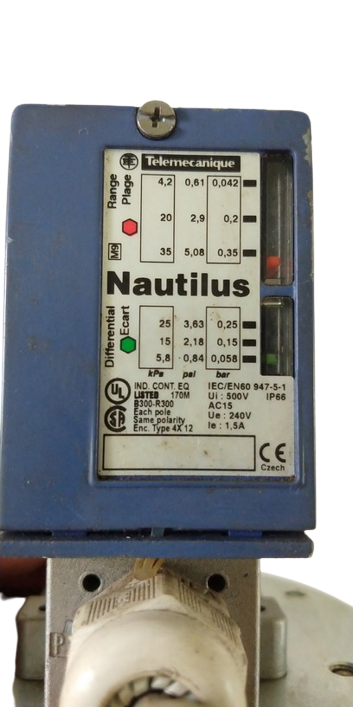

Telemecanique Nautilus XMLB010A2S13 Pressure Switch — Lot of 3

OsiSense XM electromechanical pressure switch, 10 bar range with adjustable dual thresholds — priced per lot

Overview

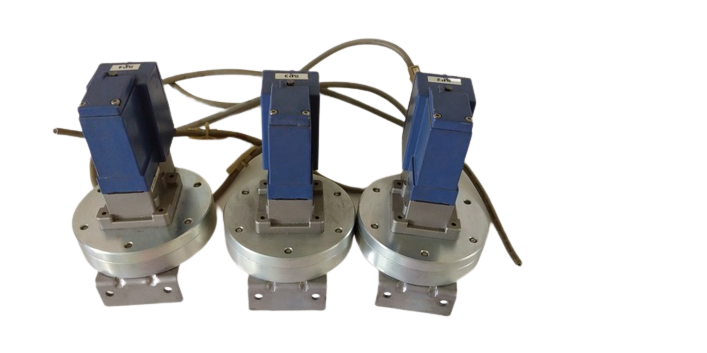

This is a lot of three Telemecanique Nautilus XMLB010A2S13 pressure switches from Schneider Electric's OsiSense XM range. Each unit is an electromechanical pressure sensor with a 10 bar sensing range, adjustable dual thresholds, and a single changeover (1 C/O) contact. Rated IP66 and housed in a zinc alloy enclosure, these switches are built for demanding industrial environments requiring reliable pressure-based switching. Priced and sold as one complete lot.

Key Features

  • Dual adjustable thresholds: Adjustable scale with 2 thresholds for flexible switching setpoints, using a single changeover (1 C/O) contact.
  • 10 bar sensing range: Rated for a maximum permissible pressure of 12.5 bar per cycle.
  • Robust IP66 enclosure: Zinc alloy housing protects against dust and powerful water jets for demanding industrial environments.
  • High mechanical durability: Rated for 5,000,000 mechanical cycles at up to 120 cycles/minute (0-70°C).
  • Strong vibration and shock resistance: Rated 4gn vibration resistance (30-500 Hz) and 50gn shock resistance per IEC standards.
  • Wide operating temperature range: Rated for ambient air temperatures from -25°C to +70°C.
  • Extensive certifications: CE, CSA, UL 508, EN/IEC 60947-5-1 compliant, with additional Lloyd's Register, EAC, BV, and CCC certifications.

What's Included

Item Function Qty
Telemecanique XMLB010A2S13 Electromechanical pressure switch, 10 bar 3

Brand: Telemecanique (Schneider Electric) | Range: OsiSense XM | Model: XMLB010A2S13

Technical Specifications

Pressure sensor size / max. permissible pressure: 10 bar range; max. 12.5 bar per cycle.

IP protection: IP66.

Dimensions: Width 35mm, Height 113mm, Depth 75mm.

Weight: 0.705 kg (1.55 lb).

Rated insulation voltage [Ui]: 300V (CSA/UL 508), 500V (EN/IEC 60947-1).

Rated impulse withstand voltage [Uimp]: 6 kV per EN/IEC 60947-1.

Mechanical durability: 5,000,000 cycles; operating rate 120 cyc/min at 0-70°C.

Vibration/shock resistance: 4gn (30-500 Hz) per IEC 60068-2-6; 50gn per IEC 60068-2-27.

Electrical connection: Screw-clamp terminals, 1 x 0.5 to 2 x 2.5 mm²; 4-terminal block.

Enclosure material: Zinc alloy; TC protective treatment (standard version).

Differential (min., low/high setting): 0.57 bar (±0.05 bar) low; 0.85 bar (-0.1/+0.15 bar) high.

Ambient operating temperature: -25°C to +70°C.

Compatibility & Applications

This pressure switch is well suited for industrial process control applications requiring reliable pressure-based switching, such as hydraulic and pneumatic systems, compressors, and pump protection circuits. Its robust IP66 rating, high mechanical durability, and marine-grade certifications (Lloyd's Register, BV) also make it a strong fit for marine and offshore equipment, alongside general industrial machinery applications.
