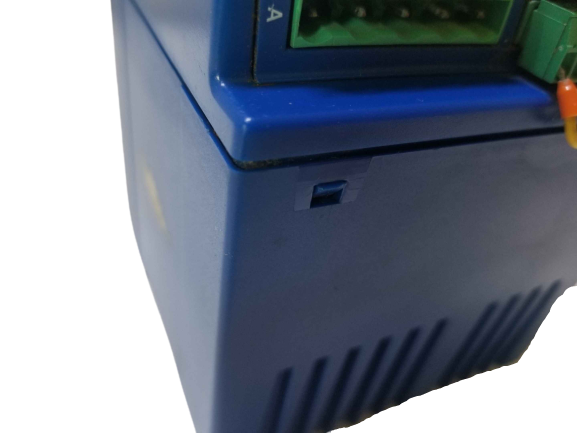

Cedes SafeC 400 400-3C 103-562 Safety Controller

€390,00
€390,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Cedes Safe C 400 400-3C 103-562 Safety ControllerCedes Safe C 400 400-3C 103-562 Safety ControllerCedes Safe C 400 400-3C 103-562 Safety ControllerCedes Safe C 400 400-3C 103-562 Safety ControllerCedes Safe C 400 400-3C 103-562 Safety ControllerCedes Safe C 400 400-3C 103-562 Safety ControllerCedes Safe C 400 400-3C 103-562 Safety ControllerCedes Safe C 400 400-3C 103-562 Safety ControllerCedes Safe C 400 400-3C 103-562 Safety Controller

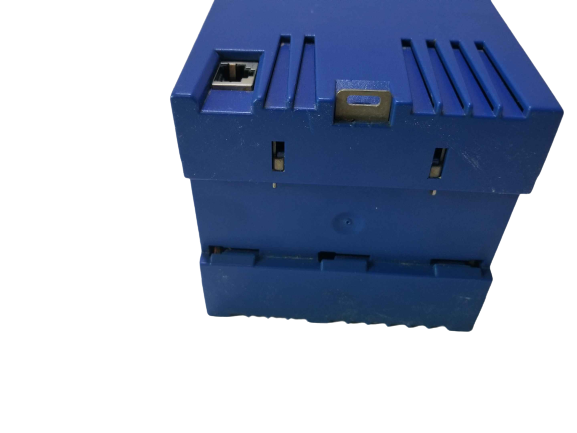

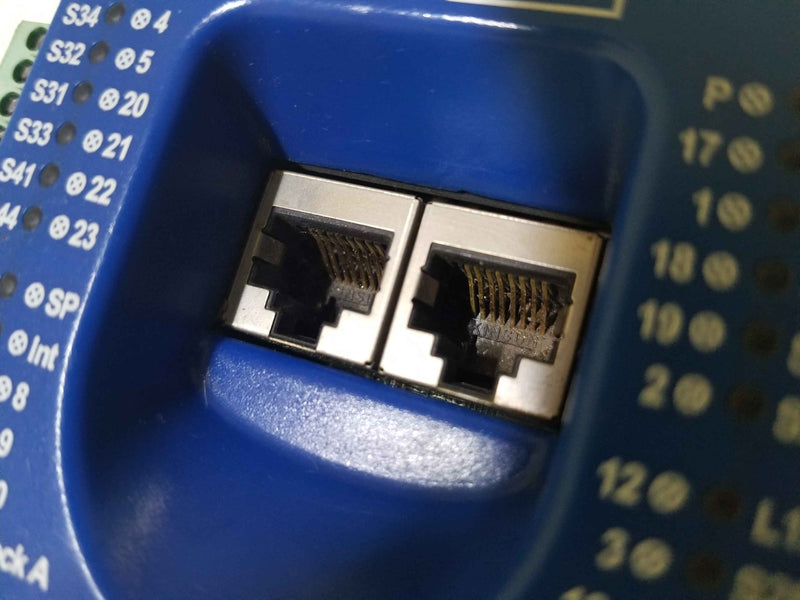

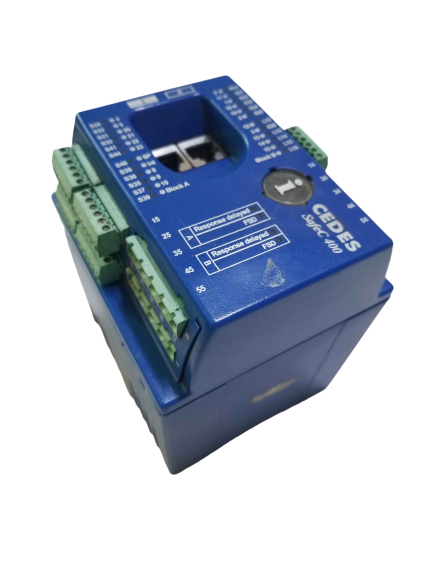

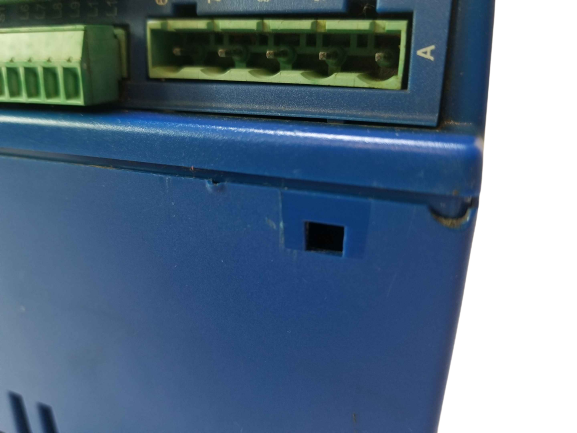

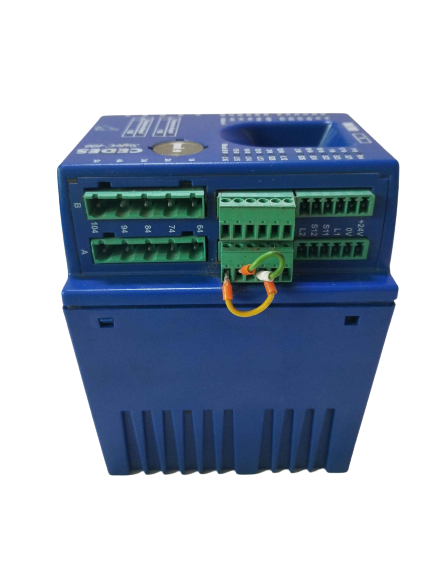

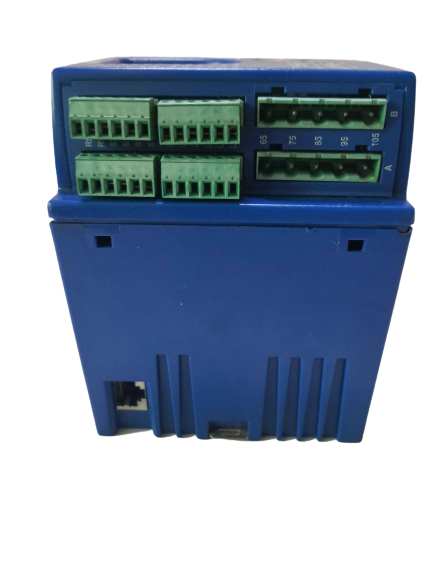

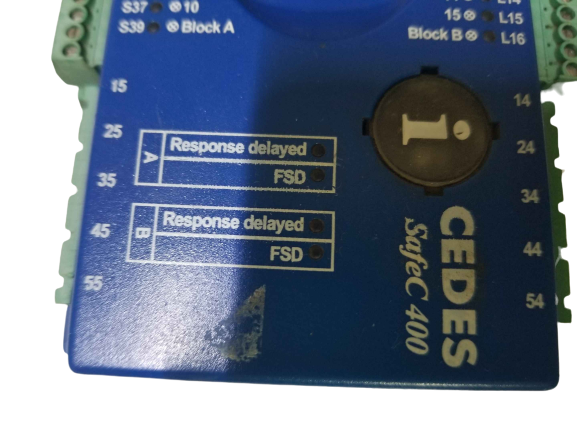

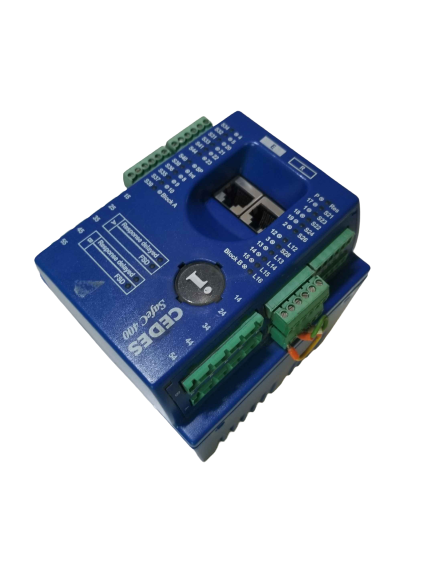

Cedes SafeC 400 (400-3C, 103-562) Safety Controller

Dual-block safety relay controller for light curtain and machine safety applications

Overview

This is a Cedes SafeC 400 Safety Controller (400-3C, part number 103-562), offering two separate safety output blocks with relay, force-guided contacts, designed for machine safety applications such as light curtain monitoring.

Key Features

  • Contacts: Block A: 3 NO contacts; Block B: 5 NO contacts (optional configuration up to 8 NO contacts or 4 PNP).
  • Contact type: Relay, force guide.
  • Outputs: Two separate safety blocks.
  • Response times: Light curtain response ≤32 ms; safety switch response ≤96 ms.
  • Fuse protection: 5 A (slow fuse).

What's Included

Model Function Qty
SafeC 400 (400-3C, 103-562) Safety Controller 1

Brand: Cedes | Part Status: Active

Technical Specifications

Power supply: UN +24 VDC ±20% (IEC 60204-1), with 5% residual ripple 0.85...1.15 UN.

Current consumption: Max. 500 mA (without load).

Inrush current: Max. 1.7 A / 10 ms.

Max. power consumption: 15 W at max. supply voltage.

Max. switching capacity: 1,150 VA / 120 W.

Max. switching current: 5 A.

Max. switching voltage: AC 230/240 V, DC 300 V.

Compatibility & Applications

This safety controller is well suited to machine safety systems requiring dual-block safety switching, such as light curtain and safety switch monitoring circuits. Buyers should confirm the 24 VDC power supply and contact configuration match their existing safety circuit before integration.
