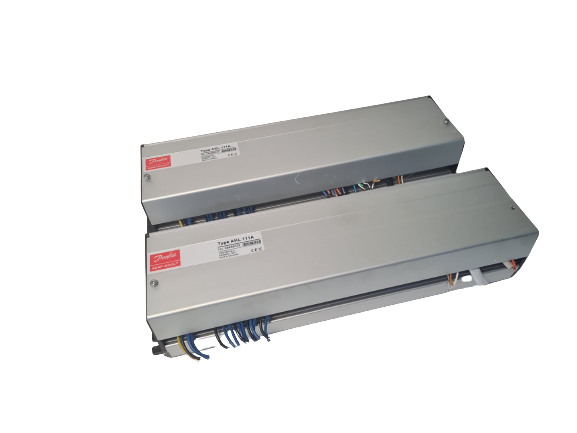

Danfoss ADAP-KOOL AKL 111A Monitoring Controller — 084B6039, Lot of 2

8-input refrigeration monitoring unit with alarm relay and DANBUSS communication — priced per lot

Overview

This is a lot of two Danfoss ADAP-KOOL AKL 111A monitoring units (Code No. 084B6039), designed for use in refrigerating plants to track temperature, voltage, and alarm status across a facility. Each unit is used for refrigerating plant monitoring, operates on a 230/240V AC supply at 50/60 Hz, and draws 5 VA of power consumption. Operation is managed via the AKA 21 PC control panel and AKM/AK Monitor system software. Made in Denmark, these units are well suited for maintaining or expanding existing Danfoss ADAP-KOOL refrigeration monitoring networks. Priced and sold as one complete lot.

Key Features

  • Extensive input capacity: 8 temperature sensor inputs (Pt 1000 ohm, -70 to +160°C) and 4 analog (230V AC) inputs.
  • Pulse counting for energy recording: 2 pulse counter inputs support energy consumption tracking.
  • Alarm relay output: 1 SPST alarm relay rated 12–253V AC, 1.2A, 1.2W, with separate alarm acknowledgment.
  • Standardized data communication: Hardware via RS 485, using the DANBUSS software protocol for integration with Danfoss monitoring systems.
  • Durable enclosure: Anodized aluminum housing rated to IP 30 (32) protection, suitable for wall or DIN rail mounting.
  • Wide operating range: Rated for ambient operating temperatures from -20°C to +55°C.

What's Included

Item Function Qty
Danfoss AKL 111A Monitoring Controller Refrigeration plant monitoring unit 2

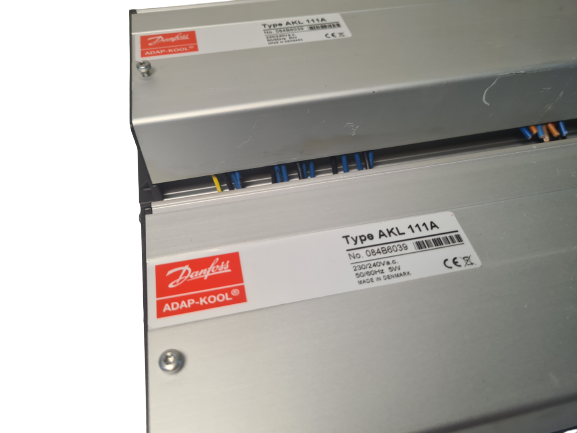

Brand: Danfoss ADAP-KOOL | Model: AKL 111A | Code Number: 084B6039 | Made in Denmark

Technical Specifications

Function: Monitoring unit.

Temperature / ON-OFF inputs: 8.

230V voltage inputs: 4.

Display output / external display option: 1.

Alarm relay outputs: 1, with separate alarm acknowledgment.

Energy recording: 2 pulse counter channels.

Supply voltage / frequency: 230/240V AC, 50/60 Hz; 5 VA power consumption.

Communication: RS 485 hardware; DANBUSS software protocol.

Ambient operating temperature: -20°C to +55°C.

Protection degree: IP 30 (32).

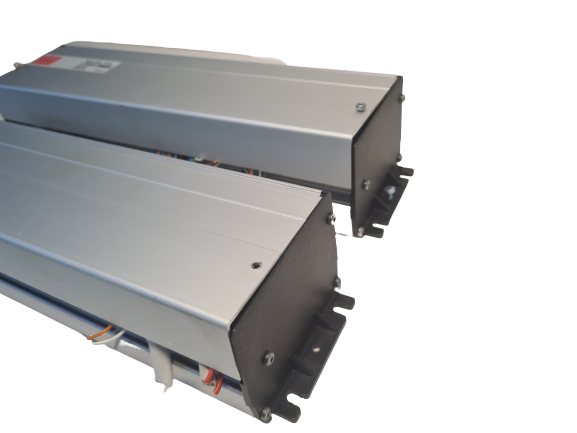

Mounting / material: Wall or DIN rail mount; anodized aluminum housing.

Dimensions: 359 x 93 x 75 mm.

Compatibility & Applications

The AKL 111A is designed for use in commercial and industrial refrigerating plants requiring centralized temperature, voltage, and alarm monitoring. It integrates with the Danfoss AKA 21 control panel and AKM/AK Monitor system software over RS 485/DANBUSS, making it a practical replacement or expansion part for facilities already running a Danfoss ADAP-KOOL supervisory network.
