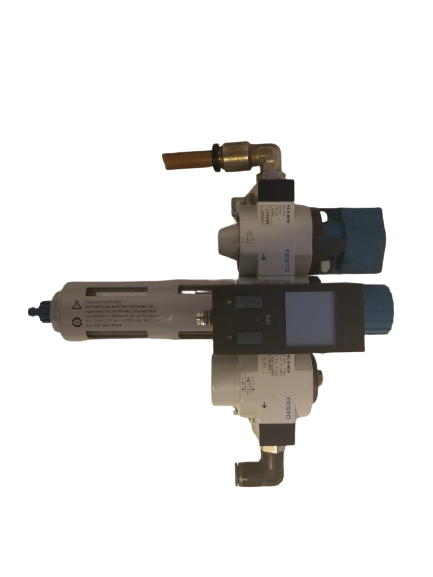

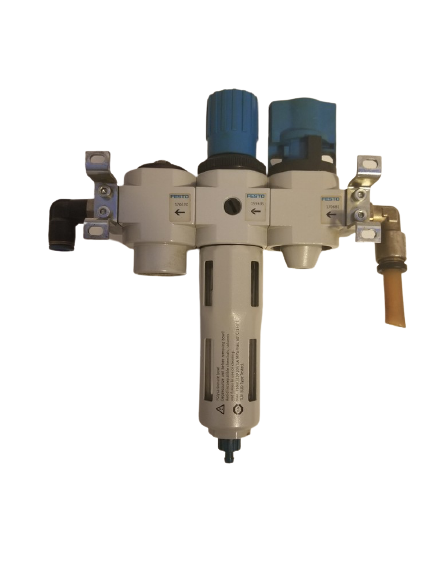

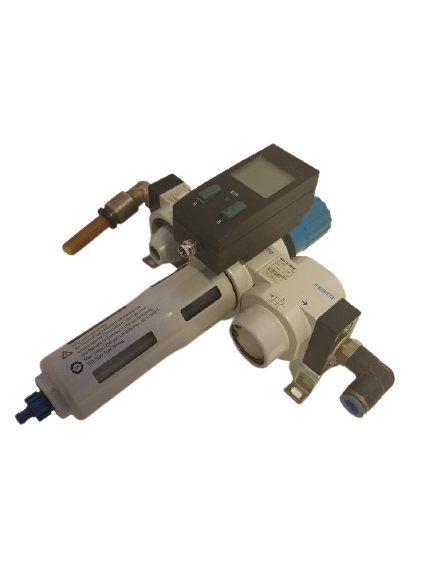

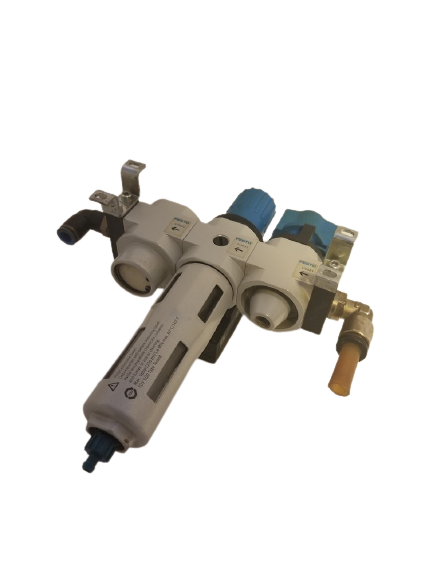

Assembly Festo LFR-D-MINI-A Regulator Standard pressure valve

€249,00
€350,00
€249,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Assembly Festo LFR-D-MINI-A Regulator Standard pressure valveAssembly Festo LFR-D-MINI-A Regulator Standard pressure valveAssembly Festo LFR-D-MINI-A Regulator Standard pressure valveAssembly Festo LFR-D-MINI-A Regulator Standard pressure valveAssembly Festo LFR-D-MINI-A Regulator Standard pressure valveAssembly Festo LFR-D-MINI-A Regulator Standard pressure valveAssembly Festo LFR-D-MINI-A Regulator Standard pressure valveKokoonpano FESTO VakiopaineventtiiliAssembly Festo LFR-D-MINI-A Regulator Standard pressure valveAssembly Festo LFR-D-MINI-A Regulator Standard pressure valve


1x Assembly Festo LFR-D-MINI-A Regulator Standard pressure valve

  • Actuator lockRotary knob with detent
  • Mounting position vertical +/- 5°
  • Grade of filtration40 µm
  • Condensate drain manually rotating
  • Structural design filter regulator with pressure gauge
  • Max. condensate volume22 ml
  • Bowl guard metal bowl guard
  • Pressure gauge with pressure gauge
  • Operating pressure1 bar ... 16 bar
  • Pressure regulation range0.5 bar ... 12 bar
  • Max. pressure hysteresis0.2 bar
  • Standard nominal flow rate750 l/min
  • Operating medium compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
  • Information on operating and pilot media operation with oil lubrication possible (required for further use)
  • Corrosion resistance class (CRC)2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature-10 °C ... 60 °C
  • Air quality class at the output compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas
  • Temperature of medium-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C

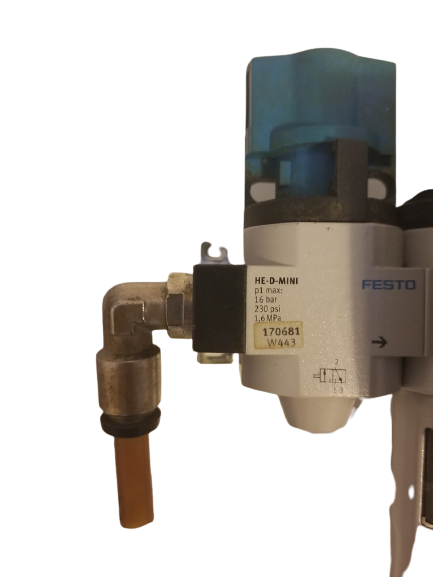

1x FESTO HE-D-MINI Manual Valve

Alternate Mfr Part Number 170681
Flow Type Air ; Gas
Material Aluminum
Number of Ports 3
Operating Pressure 0 to 1.6 MPa
Port Size 0.125 in
Thread Type G
Type Manual Valve

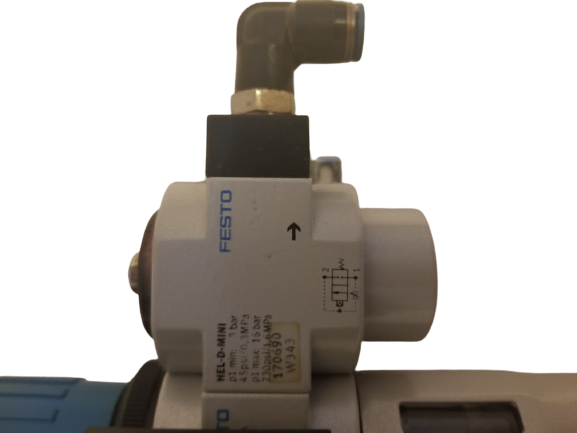

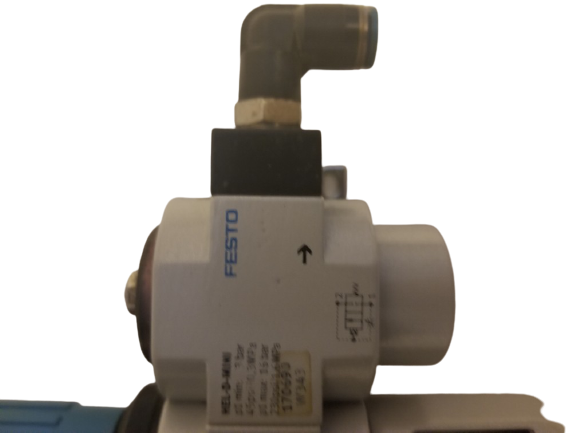

1x FESTO HEL-D-MINI Valve

  • Type of actuationPneumatic
  • Sealing principles of
  • Mounting position optional
  • Manual override one
  • DesignPiston gate valve
  • Type of resetMechanical spring
  • Type of pilotingDirect
  • Flow directionNon-reversible
  • Symbol00991513
  • Valve function2/2-way, closed, monostable
  • Operating pressure3 bar ... 16 bar
  • Operating medium compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
  • Note on operating and pilot mediumLubricated operation possible (in which case the lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Air purity class at output compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Product weight126 g

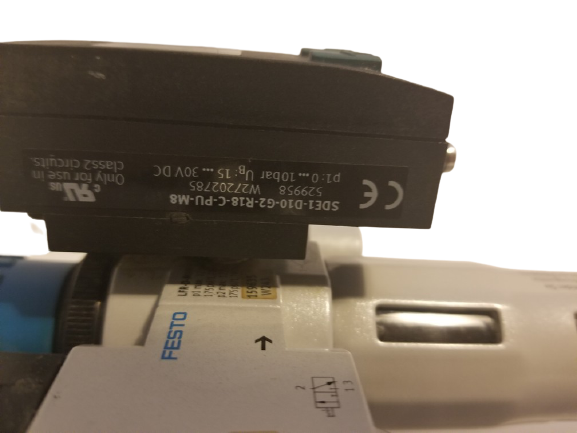

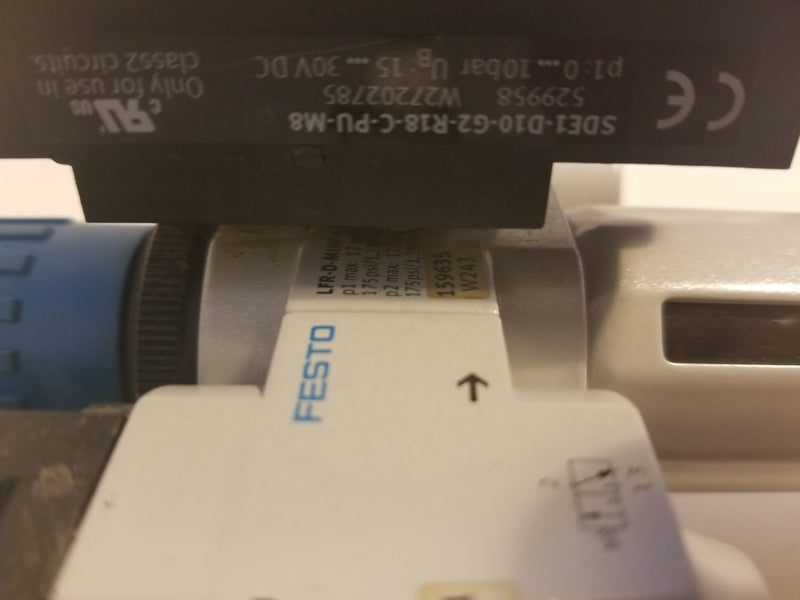

1x FESTO Festo SDE1-D10-G2-R18-C-PU-M8 Pressure Sensor

Pneumatic connection G1/8
Accuracy, FS 2 %
Ambient temp 0 - 50 °C
Assembly position Any
Authorization c UL us - Recognized (OL)
Authorization C-Tick
CE mark (see Declaration of conformity) to EU directive for EMC
Corrosion resistance classification CRC 2
Hysteresis setting range 0 - 90 %
Materials information, housing PA
Materials information, housing POM-reinforced
Materials note Conforms to RoHS
Materials note Free of copper and PTFE
Max. output current 150 mA
Measured variable Relative pressure
Measurement method Piezoresistive pressure sensor with display
Medium temperature 0 - 50 °C
Operating medium Filtered, lubricated compressed air, 40 µm filtration
Operating medium Filtered, unlubricated compressed air, 40 µm filtration
Operating status display LCD
Operating voltage range DC 15 - 30 V
