Lot of 3x Phoenix Contact Solid-state contactor ELR 1- 24DC/600AC-30

€150,00
€150,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Lot of 3x Phoenix Contact Solid-state contactor ELR 1- 24DC/600AC-30Lot Of 3x Phoenix Contact Solid-State Contactor ELR 1- 24DC/600AC-30Lot Of 3x Phoenix Contact Solid-State Contactor ELR 1- 24DC/600AC-30Lot of 3x Phoenix Contact Solid-state contactor ELR 1- 24DC/600AC-30

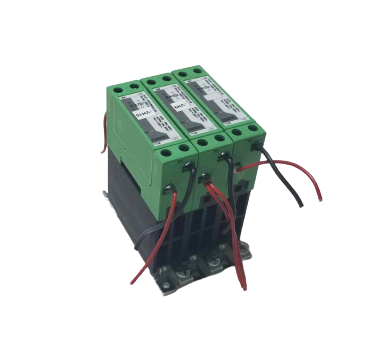

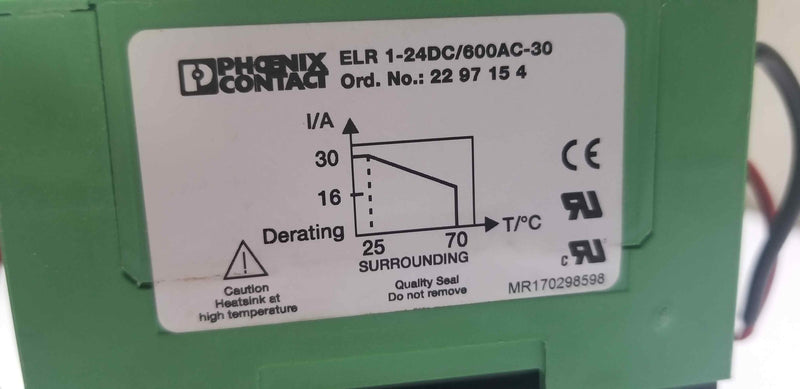

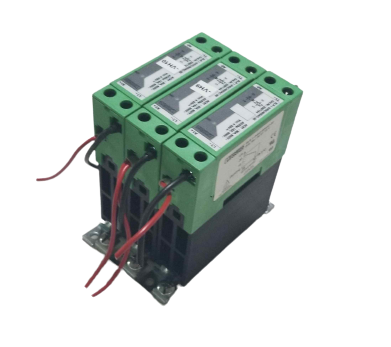

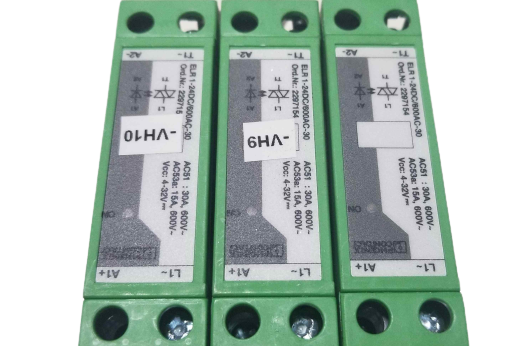

Phoenix Contact ELR 1-24DC/600AC-30 Solid-State Contactor (3-Piece Lot)

DIN rail solid-state contactor for AC load switching from 24 VDC control signal

Overview

This listing is for a lot of 3 Phoenix Contact ELR 1-24DC/600AC-30 Solid-State Contactors, providing 24 VDC controlled switching of single-phase AC loads up to 30 A, suitable for industrial control panel applications.

Key Features

  • Rated actuating voltage: 24 VDC.
  • Triggering voltage range: 4-32 VDC.
  • Number of phases: 1.
  • Rated output operating current at AC-51: 30 A.
  • Rated output operating current at AC-53a: 15 A.
  • Load current range: 150 mA to 30 A.
  • Connection method: Screw connection.

What's Included

Model Function Qty
ELR 1-24DC/600AC-30 Solid-State Contactor 3

Brand: Phoenix Contact | Price shown is per lot (3 pieces total)

Technical Specifications

Maximum power dissipation (nominal condition): 48 W.

Rated actuating current: 12 mA.

Operating output voltage range: 42-660 V AC.

Mains frequency: 45-65 Hz.

Operating temperature: -40°C to 100°C.

Dimensions: 103 x 103 x 22.5 mm.

Compatibility & Applications

This solid-state contactor lot is well suited to industrial control panels requiring 24 VDC controlled switching of AC loads up to 30 A, such as heaters, motors, or lighting circuits. Buyers should confirm the load current and voltage requirements match their application before integration.

A1Customer — Industrial Automation Equipment | Tampere, Finland
