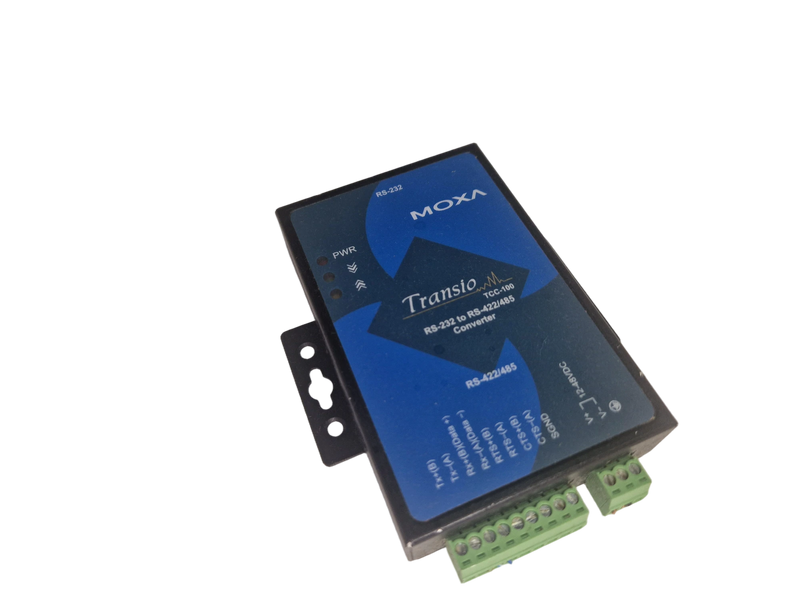

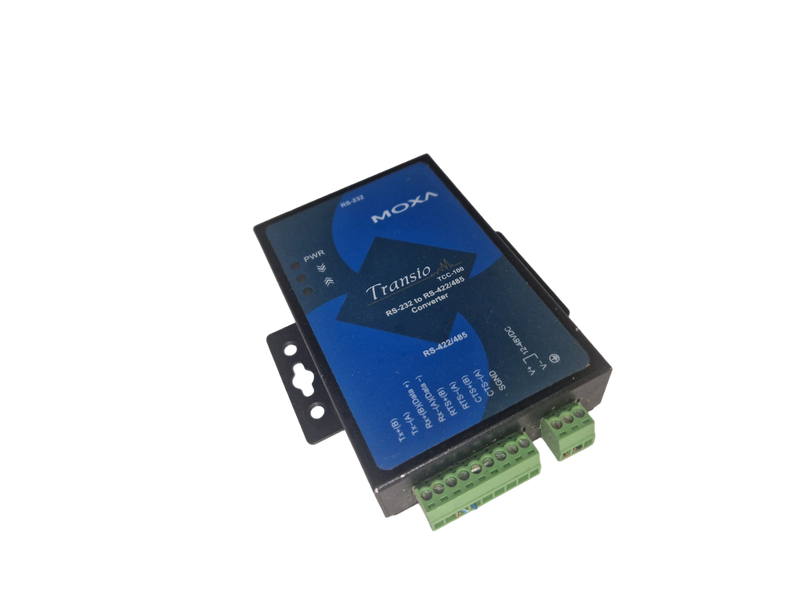

MOXA TCC-100 V2.2 RS-232 to RS-422/485 DIN-Rail Serial Converter

Industrial-grade serial protocol converter with automatic baudrate detection

Overview

This is a MOXA TCC-100 V2.2, a DIN-rail mountable serial converter that bridges RS-232 signals to RS-422 or RS-485, letting devices using different serial standards communicate reliably within an industrial network. Built for demanding automation environments, it combines automatic baudrate detection, a wide operating temperature range, and robust surge and ESD protection, making it a dependable link between legacy RS-232 equipment and modern RS-422/485-based industrial systems.

Key Features

  • RS-232 to RS-422/485 conversion: Bridges RS-232 devices onto RS-422 full-duplex or RS-485 2-wire/4-wire networks.
  • Automatic baudrate detection: Supports data rates from 50 up to 921.6 kbps, automatically adapting without manual configuration.
  • Wide operating temperature range: Rated for -25°C to 75°C operation, suited to unheated cabinets and harsh ambient conditions.
  • Optional isolated model (TCC-100I): Adds 2 kV optical isolation between the RS-232 and RS-422/485 sides for additional protection in noisy electrical environments.
  • Robust surge and ESD protection: Built-in surge protection plus 15 kV ESD protection on the serial lines, guarding against transient damage.
  • Simple DIP-switch configuration: Straightforward wiring and setup via DIP switches, with a removable terminal block for RS-422/485 connections.

What's Included

Model Function Qty
TCC-100 V2.2 RS-232 to RS-422/485 serial converter 1

Technical Specifications

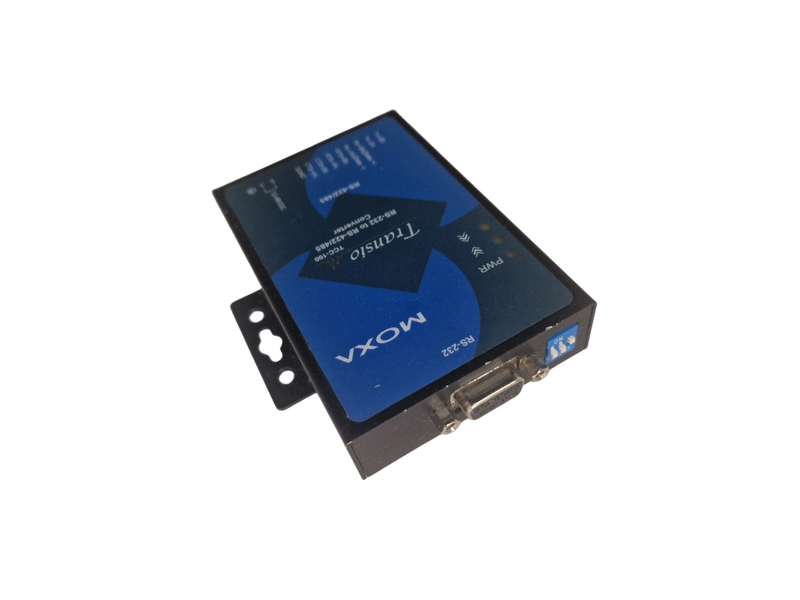

Connectors: RS-232 on DB9 female connector; RS-422/485 on screw-fastened Euroblock terminal block.

Wiring modes: RS-422 full duplex; RS-485 2-wire or 4-wire.

Baud rate: 50 to 921.6 kbps.

Data format: 7 or 8 data bits; 1 or 2 stop bits; parity None, Even, Odd, Space, or Mark.

Power: 12–48 VDC input; 30 mA @ 12 VDC consumption.

Environmental: Operating temperature -25°C to 75°C; storage -40°C to 85°C; humidity 5–95% non-condensing.

Protection: Surge protection and 15 kV ESD protection on serial lines; optional 2 kV optical isolation on the TCC-100I variant.

Compatibility & Applications

The TCC-100 is well suited to industrial automation setups needing to bridge RS-232 equipment — such as legacy PLCs, sensors, or instrumentation — onto RS-422/485 fieldbus networks used by modern controllers and SCADA systems. Its DIN-rail mounting and wide temperature range make it a practical fit for control panels, factory floors, and other environments where reliable, long-distance serial communication is required.
