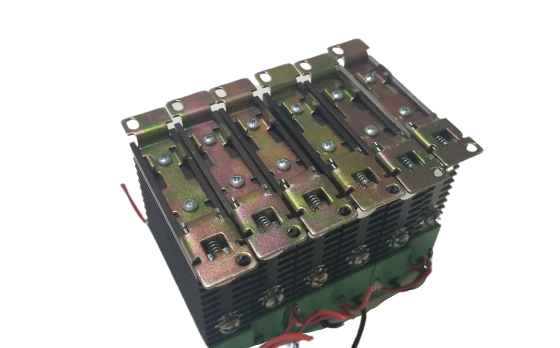

  • Phoenix Contact ELR 1/25-240 load relay

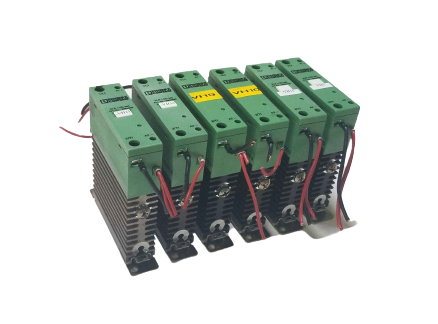

  • Phoenix Contact ELR 1/25-240 load relay

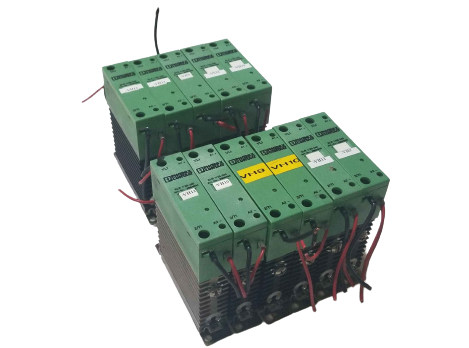

  • Phoenix Contact ELR 1/25-240 load relay

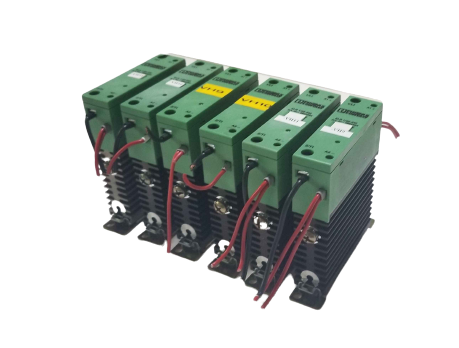

  • Phoenix Contact ELR 1/25-240 load relay

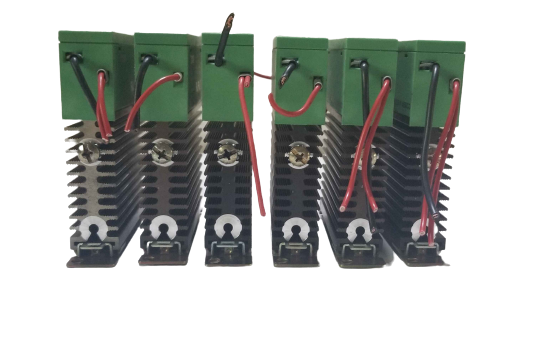

  • Phoenix Contact ELR 1/25-240 load relay

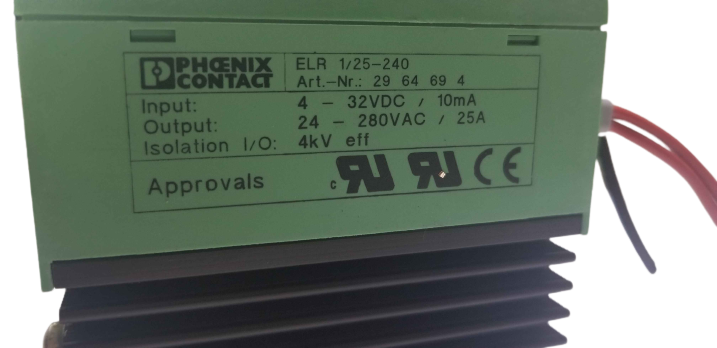

  • Phoenix Contact ELR 1/25-240 load relay
1 7

Phoenix Contact ELR 1/25-240 Load Relay, 25A AC (11-Piece Lot)

€550,00
€550,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Phoenix Contact ELR 1/25-240 load relay Phoenix Contact ELR 1/25-240 load relay Phoenix Contact ELR 1/25-240 load relay Phoenix Contact ELR 1/25-240 load relay Phoenix Contact ELR 1/25-240 load relay Phoenix Contact ELR 1/25-240 load relay

Phoenix Contact ELR 1/25-240 Load Relay, 25A AC (11-Piece Lot)

DIN rail solid state load relay for switching AC loads from 24V DC control

Overview

This listing is for a lot of 11 Phoenix Contact ELR 1/25-240 Load Relays, providing 24V DC controlled switching of AC loads up to 25A continuous current, suitable for industrial control panel applications.

Key Features

  • Input (device supply): Nominal 24 V DC, typical input current at UN 8 mA.
  • Output: Nominal 230 V AC, nominal output voltage range 24 V AC to 280 V AC.
  • Continuous load current: 25 A.
  • Load current (minimum): 100 mA.
  • Response time: Typical 10 ms.
  • Transmission frequency: 30 Hz.

What's Included

Model Function Qty
ELR 1/25-240 Load Relay, 25A 11

Brand: Phoenix Contact | Price shown is per lot (11 pieces total)

Technical Specifications

Switching threshold "0" signal (relative to UN): <0.04.

Switching threshold "1" signal (relative to UN): >0.2.

Periodic peak reverse voltage: 1000 V.

Mains frequency: 50 Hz / 60 Hz.

Leakage current: 3 mA.

Residual voltage: 1.8 V.

Dimensions: Width 22.5 mm, Height 105 mm, Depth 98 mm.

Ambient temperature (operation): -20°C to 80°C.

Compatibility & Applications

This load relay lot is well suited to industrial control panels requiring 24V DC controlled switching of AC loads up to 25A, such as heaters, motors, or lighting circuits. Buyers should confirm the load current and voltage requirements match their application before integration.
