Siemens SIRIUS 3RP1525-1AP30 Multifunctional Time Relay, 300V

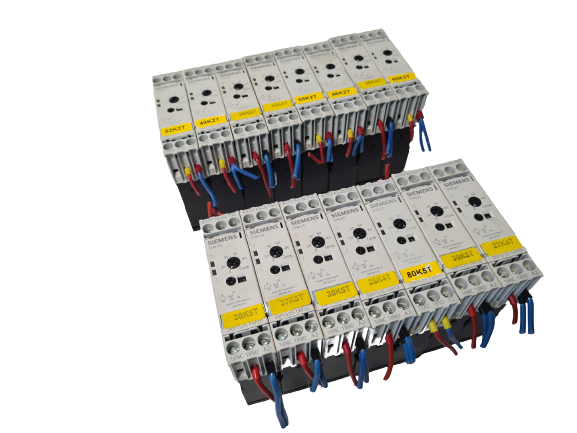

Multifunctional timing relay with adjustable timing and universal control supply — lot of 15

Overview

This lot includes fifteen Siemens SIRIUS 3RP1525-1AP30 Multifunctional Time Relays, designed to provide reliable, adjustable timing control for industrial automation circuits. With a relay output, flexible control supply voltage, and a wide adjustable time range, these units deliver dependable timed switching for a variety of applications.

Key Features

  • Adjustable timing: Adjustable time range of 0.05 to 100 s.
  • Relay output: Standard relay output for switching control.
  • Universal control supply: Accepts AC/DC control voltage, including 24 V AC/DC and 200-240 V AC.
  • High accuracy: Relative setting accuracy of 5% of full-scale value; relative repeat accuracy of 1%.
  • Long service life: Typical mechanical service life of 10,000,000 operating cycles.
  • Durable protection: IP20 protection class with 4,000 V rated surge voltage resistance.

What's Included

Model Function Qty
3RP1525-1AP30 (SIRIUS 3RP15) Multifunctional timing relay 15

Brand: Siemens | Series: SIRIUS 3RP15 | Degree of Protection: IP20 | Price: Per lot

Technical Specifications

Product designation: Timing relay.

Product type designation: 3RP15.

General Technical Data

Relay output: Yes.

Power loss: Max. 2 W.

Test voltage for isolation test: 2 kV.

Degree of pollution: 3.

Rated surge voltage resistance: 4,000 V.

Protection class: IP20.

Shock resistance: 15 ms.

Vibration resistance: 10-55 Hz / 0.35 mm.

Mechanical service life (typical): 10,000,000 operating cycles.

Electrical endurance (typical, AC-15 at 230 V): 100,000 operating cycles.

Adjustable time: 0.05 to 100 s.

Relative setting accuracy: 5% of full-scale value.

Thermal current: 5 A.

Recovery time: 150 ms.

Relative repeat accuracy: 1%.

Influence of surrounding temperature: ±5%.

Power supply influence: ±1%.

Control Circuit / Control

Type of control supply voltage: AC/DC.

Control supply voltage 1 (AC, rated): 24 V at 50 Hz and 60 Hz.

Control supply voltage 2 (AC): 200-240 V at 50 Hz and 60 Hz.

Control supply voltage frequency 1: 50-60 Hz.

Control supply voltage 1 (DC, rated): 24 V.

Compatibility & Applications

This time relay is well suited to industrial automation control circuits requiring adjustable, reliable timed switching. Buyers should confirm the control supply voltage and relay output configuration match their circuit requirements before installation.
