SIEMENS Analog Input/Output 6ES7 332-5HD01-0AB0

€250,00
€250,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
SIEMENS Analog Input/Output 6ES7 332-5HD01-0AB0Siemens 6ES7 331-7KF02-0AB0 PLC Analogue Input Module SIEMENS Analog Input/Output 6ES7 332-5HD01-0AB0SIEMENS Analog Input/Output 6ES7 332-5HD01-0AB0SIEMENS Analog Input/Output 6ES7 332-5HD01-0AB0SIEMENS Analog Input/Output 6ES7 332-5HD01-0AB0SIEMENS Analog Input/Output 6ES7 332-5HD01-0AB0SIEMENS Analog Input/Output 6ES7 332-5HD01-0AB0

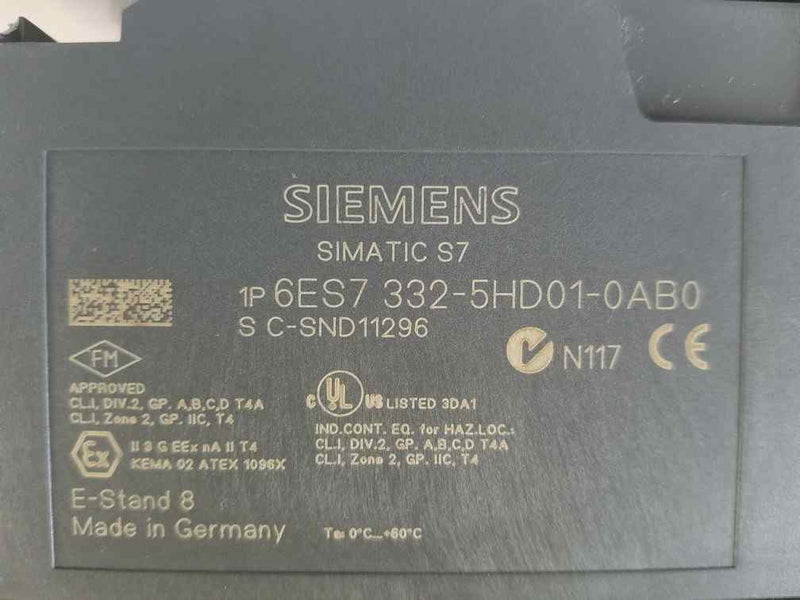

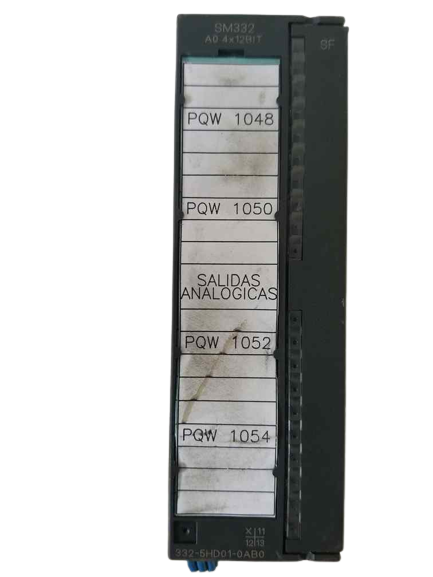

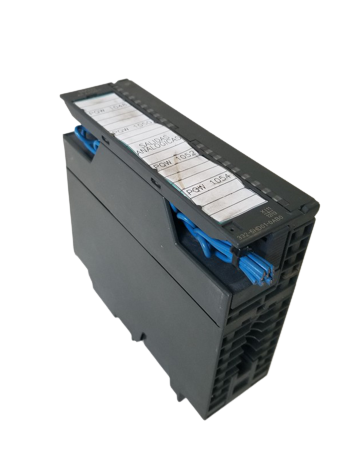

Siemens SIMATIC S7-300 SM 332 Analog Output Module, 4 AO, 24V DC — 6ES7332-5HD01-0AB0 — Lot of 2

Isolated 4-channel analog output module with 11/12-bit resolution

Overview

This lot is 2 units of the Siemens SIMATIC S7-300 SM 332, part no. 6ES7332-5HD01-0AB0, an optically isolated analog output module providing 4 individually configurable output channels for voltage or current signals, at 11/12-bit resolution. It includes programmable diagnostics and diagnostic interrupt functionality, is electrically isolated to the backplane bus interface and load voltage, and supports removing/inserting with an active backplane bus. Manufactured in Germany, each unit weighs approx. 0.2 kg.

Key Features

  • 4 configurable output channels: Each channel individually selectable as voltage or current output.
  • 11/12-bit resolution: Precise analog signal generation for demanding control applications.
  • Programmable diagnostics: Diagnostic interrupt functionality supports proactive fault detection.
  • Electrically isolated: Isolation to the backplane bus interface and load voltage protects against signal interference.
  • Hot-swappable: Supports removing/inserting the module with an active backplane bus.
  • Short-circuit protected voltage output: Max. short-circuit current of 25 mA.

What's Included

Model Function Qty
SM 332 (6ES7332-5HD01-0AB0) Analog output module, 4 AO, isolated 2

HS Code: 8537101190. Country of origin: Germany.

Technical Specifications

Supply voltage: 24V DC (rated).

Input current: From load voltage L+ (without load), max. 240mA; from backplane bus 5V DC, max. 60mA.

Power loss: Typ. 3 W.

Number of analog outputs: 4.

Resolution: 11/12 bits.

Voltage output ranges: 0-10V, 1-5V, -10 to +10V.

Current output ranges: 0-20mA, -20 to +20mA, 4-20mA.

Voltage output short-circuit protection: Yes; max. short-circuit current 25mA.

Current output no-load voltage: Max. 18V.

Permissible load resistance: Voltage output >10 kΩ; current output <600 Ω.

Conversion time: Approx. 2.5 ms per channel.

Isolation: Checked with 500V DC.

Connection: 20-pin front connector (required, not included).

Dimensions / weight: 40 x 11.7 x 12.5 cm; approx. 0.2 kg.

Compatibility & Applications

Part of Siemens' SIMATIC S7-300 SM 332 module family, this analog output module is well suited to industrial automation applications requiring precise, isolated analog signal generation, such as valve positioning, drive speed reference signals, and other closed-loop control tasks across manufacturing and process industries.
