Indramat Bosch Rexroth DKC02 3-016-7-FW ECO Drive

€850,00
€850,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Indramat Bosch Rexroth DKC02 3-016-7-FW ECO Drive Indramat Bosch Rexroth DKC02 3-016-7-FW ECO Drive Indramat Bosch Rexroth DKC02 3-016-7-FW ECO Drive Indramat Bosch Rexroth DKC02 3-016-7-FW ECO Drive Indramat Bosch Rexroth DKC02 3-016-7-FW ECO Drive

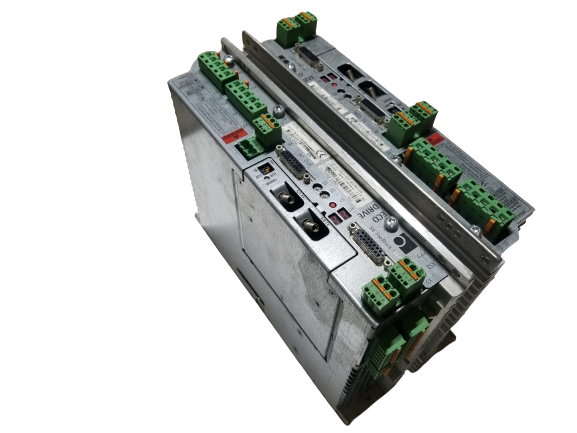

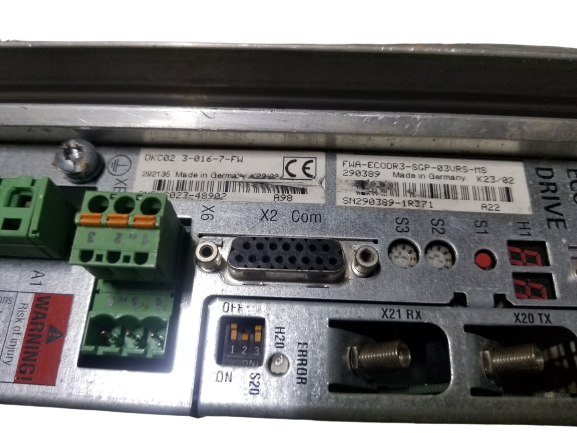

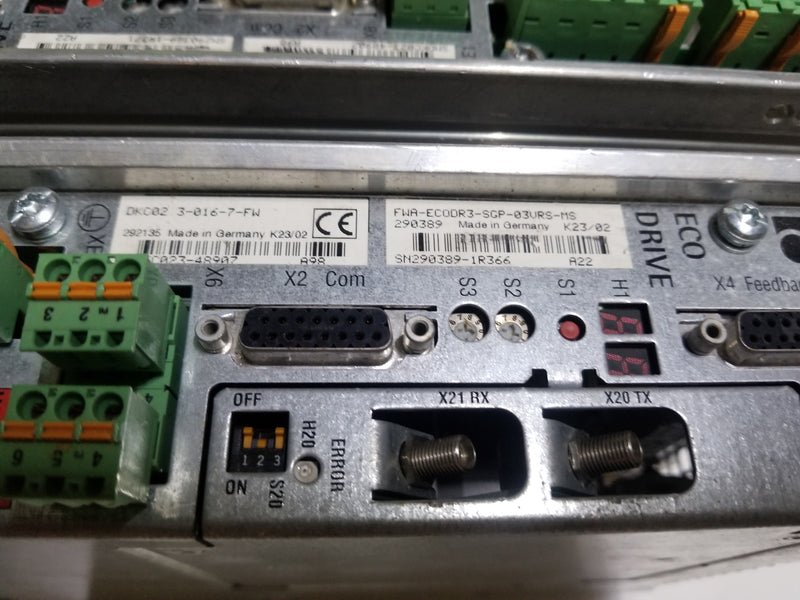

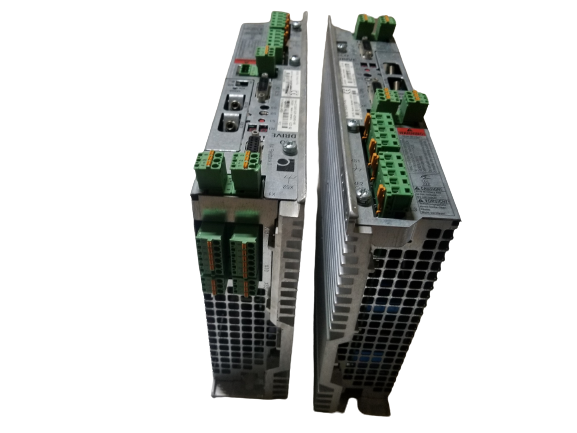

Bosch Rexroth Indramat DKC02.3-016-7-FW ECODRIVE — Lot of 2

AC servo amplifier drive controller with SERCOS interface for precision motion control

Overview

This is a lot of two Bosch Rexroth Indramat DKC02.3-016-7-FW ECODRIVE AC servo amplifier drive controllers. Part of the digital intelligent ECODRIVE03 automation system, this drive offers a cost-effective, highly functional solution for single and multiple axis drive and control tasks, typically used in handling systems, packaging machines, assembly systems, printing machines, and machine tools. The drive carries a rated current of 16A and a 700V DC bus voltage, and features multiple communication interfaces including RS232/485, Analog, and an optional SERCOS interface card for high-speed digital drive control. Manufactured in Germany, these units are well suited for maintaining or expanding existing Indramat/Bosch Rexroth motion control installations. Priced and sold as one complete lot.

Key Features

  • 16A rated servo drive: Delivers 16A rated current with a 700V DC bus nominal voltage for reliable servo motor control.
  • Multiple communication interfaces: Supports RS232/485 and Analog interfaces, with an optional SERCOS interface card for high-speed, precise digital drive control.
  • Wide input frequency support: Accepts 50-60 Hz input frequency with a maximum output frequency of 333.3 Hz.
  • 3-phase input/output: Configured with 3 input phases and 3 output phases for standard industrial motor control setups.
  • Compact form factor: Measures 55mm (W) x 182mm (H) x 170mm (D), weighing approximately 1.8 kg.
  • Versatile application fit: Well suited for handling systems, packaging machines, assembly systems, printing machines, and machine tools.

What's Included

Item Function Qty
Bosch Rexroth Indramat DKC02.3-016-7-FW AC servo amplifier drive controller 2

Brand: Bosch Rexroth (Indramat) | Type Code: DKC02.3-016-7-FW | Country of Manufacture: Germany

Technical Specifications

Rated current: 16A.

DC bus nominal voltage: 700V DC.

Rated input voltage: 200–230V AC; rated control voltage 24V AC.

Input frequency: 50–60 Hz; maximum output frequency 333.3 Hz.

Phases: 3 input phases, 3 output phases.

Communication interfaces: RS232/485, Analog; optional SERCOS interface card (DKC02.3-LK-SCK02).

Ambient temperature: Max. 40°C (nominal data); max. 55°C (reduced/cost-effective data).

Dimensions / weight: 55mm (W) x 182mm (H) x 170mm (D); approx. 1.8 kg net.

Compatibility & Applications

This drive is well suited for precision motion control applications within the Bosch Rexroth Indramat ECODRIVE03 ecosystem, including handling systems, packaging machines, assembly systems, printing machines, and machine tools. It's a practical replacement or spare part for facilities maintaining existing Indramat servo drive installations, particularly those using SERCOS-based communication for multi-axis coordination.
