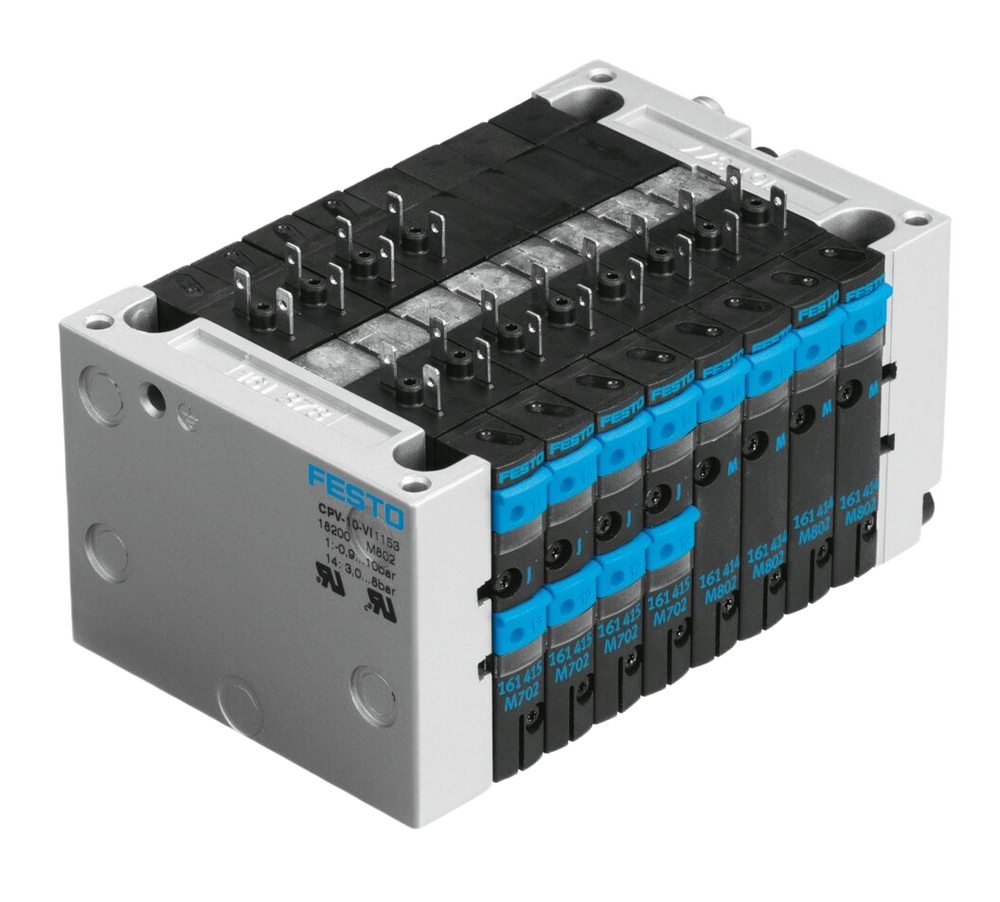

  • Festo-CPV14-VI-Pneumatic-view-1

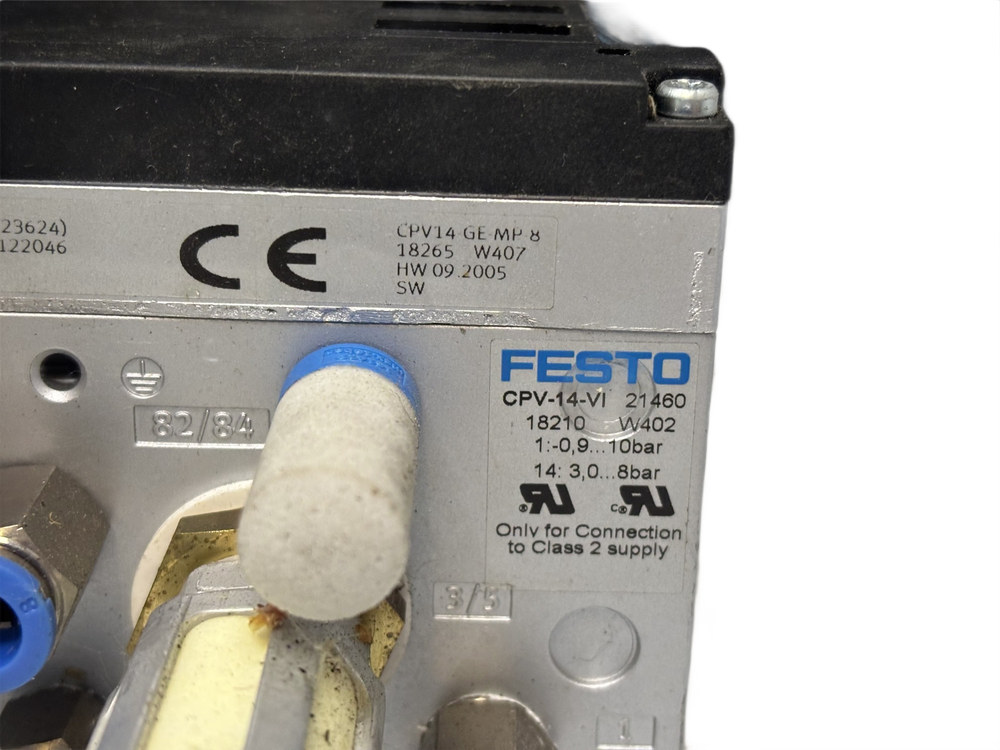

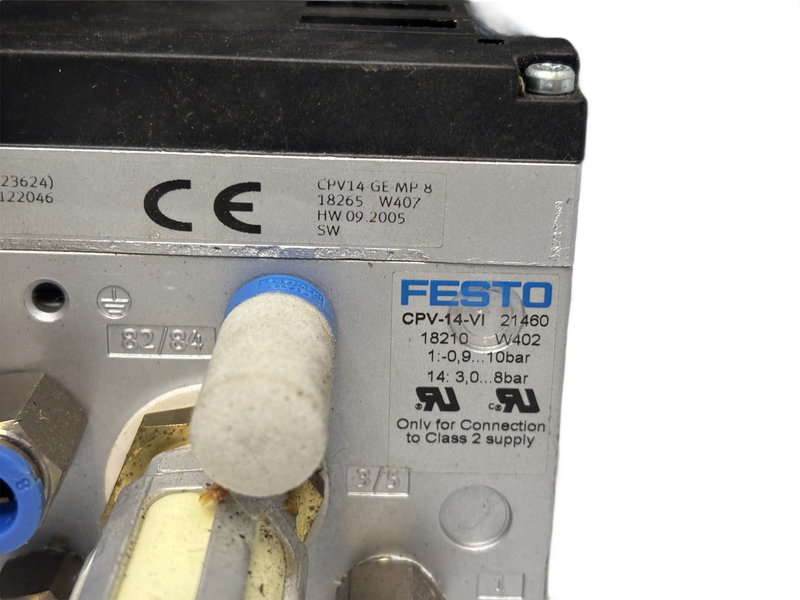

  • Festo-CPV14-VI-Pneumatic-view-2

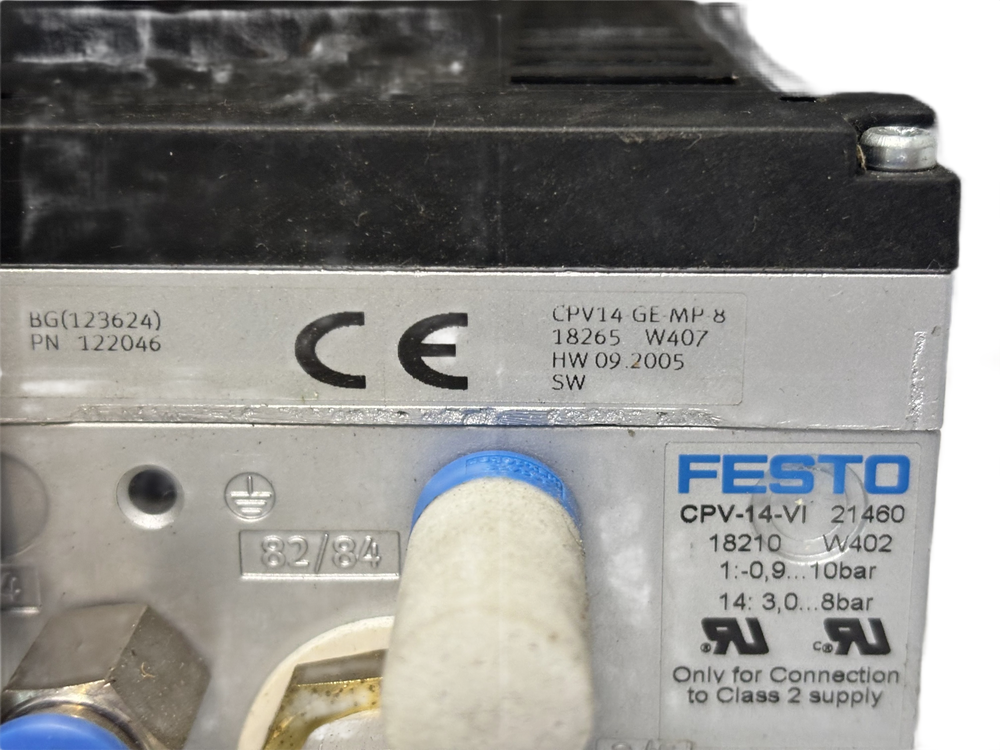

  • Festo-CPV14-VI-Pneumatic-view-3
1 4

Festo CPV14-VI Pneumatic Valve Terminal – 21460, Modular Valve Block

€180,00
€180,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Festo-CPV14-VI-Pneumatic-view-1Festo-CPV14-VI-Pneumatic-view-2Festo-CPV14-VI-Pneumatic-view-3

Festo CPV14-VI Pneumatic Valve Terminal — Modular Valve Block, Part No. 21460

Compact, modular electric valve terminal for pneumatic actuator control

Overview

This is a Festo CPV14-VI, Part No. 21460, a modular pneumatic valve terminal from Festo's CPV Compact Performance series. Valve terminals in the CPV14 range use individual valve slices that mount together into a single manifold block, letting engineers configure an exact combination of directional control functions for a machine's pneumatic actuators while sharing a common compressed-air supply and electrical connection. The "VI" designation indicates individual electrical connection, giving direct, per-valve wiring rather than a fieldbus interface.

Key Features

  • Modular valve slice construction: Individual valve slices assemble into a single terminal block, allowing the exact mix of valve functions needed for the application to be built up on one shared manifold.
  • Electric actuation with soft sealing: Valves are electrically actuated with a soft sealing principle for reliable, low-leakage switching.
  • Individual electrical connection (VI): Each valve position wires directly, suited to applications that don't require fieldbus or multi-pin connector integration.
  • Up to 8 valve positions / 16 valve functions: Supports a wide range of directional control configurations, with up to 2 separate pressure zones on the same terminal for dual-pressure applications.
  • 14 mm valve size: Compact footprint typical of the CPV14 range, suited to space-constrained control cabinets and machine bases.
  • IP65 protection: Sealed housing rated for dusty and wash-down industrial environments.

What's Included

Model Function Qty
CPV14-VI Modular pneumatic valve terminal, individual electrical connection 1

Part No.: 21460

Technical Specifications

Operating pressure (main): −0.9 … 10 bar.

Pilot pressure: 3.0 … 8 bar.

Valve configuration: Max. 8 valve positions, max. 16 valve functions, max. 2 pressure zones.

Valve size: 14 mm.

Actuation / sealing: Electric actuation, soft sealing principle.

Protection / temperature: IP65; ambient/media temperature −5 °C to 50 °C; storage temperature −20 °C to 40 °C.

Compliance: CE marked.

Compatibility & Applications

As part of Festo's CPI-compatible CPV valve terminal platform, the CPV14-VI is designed for controlling pneumatic cylinders and actuators in machine automation, and can be extended with additional valve slices or paired with pneumatic interface modules for larger systems. It's commonly used across manufacturing, packaging, and general factory automation applications wherever centralized, modular control of multiple pneumatic actuators is needed from a single compressed-air manifold.
