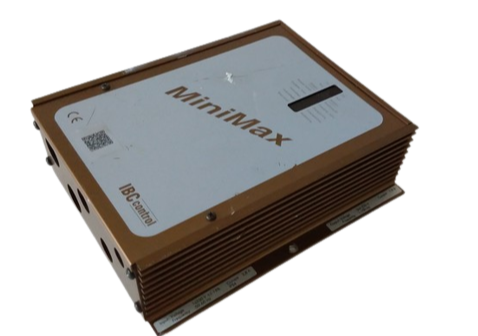

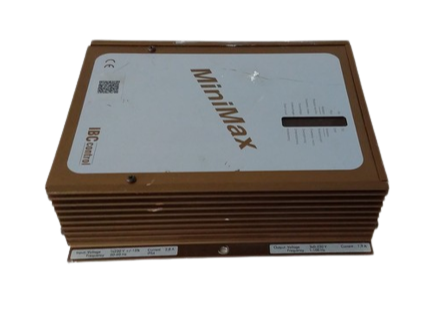

IBC Control MiniMax 0.37kW VFD — Rotary Heat Exchanger Control Unit

Single-phase input variable frequency drive purpose-built for rotor speed control in HVAC heat exchangers

Overview

The IBC Control MiniMax is a purpose-built control unit for rotating heat exchangers, designed so rotor speed remains proportional to an incoming control signal, optimizing heat recovery efficiency. This 0.37kW unit accepts a single-phase 230VAC input and outputs 0-230VAC across a 1-100Hz frequency range, drawing up to 1.9A. It includes features such as torque boost at low RPM, an automatic cleaning function that briefly rotates the rotor after periods of inactivity, and a rotation monitor that trips with an alarm if the rotor stops turning unexpectedly.

Key Features

  • Proportional rotor speed control: Rotor speed tracks the incoming control signal for optimal heat exchanger efficiency.
  • Automatic cleaning function: After 30 minutes of inactivity, the rotor automatically rotates for 10 seconds at 12 RPM to prevent buildup.

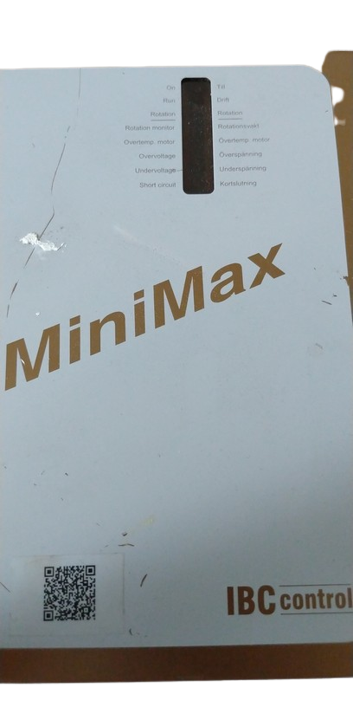

  • Rotation monitoring: Trips and generates an alarm if the rotor stops rotating unexpectedly.
  • Torque boost at low RPM: Improves starting performance and reliability at low speeds.
  • Adjustable threshold value: Configurable stop threshold (0-2V) below which the rotor halts.
  • Comprehensive alarm protection: Trips on over/under-voltage, short-circuit, earth leakage, or thermal switch activation.
  • Single-phase input, wide output range: Accepts 1x230VAC input and delivers a 0-230VAC output across 1-100Hz.

What's Included

Item Function Qty
IBC Control MiniMax VFD Control unit for rotating heat exchangers, 0.37kW 1

Brand: IBC Control | Series: MiniMax

Technical Specifications

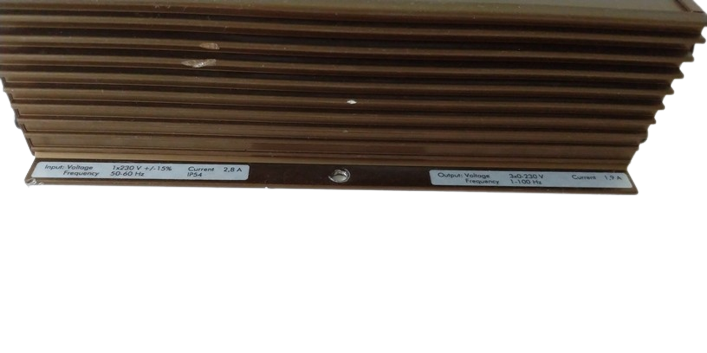

Rated power: 0.37 kW.

Input: Single-phase 1x230VAC.

Output: 0-230VAC, 1-100Hz.

Current: 1.9A.

Compatibility & Applications

This control unit is specifically designed for HVAC applications involving rotating heat exchangers, where precise rotor speed regulation is essential for efficient heat recovery. It's a suitable replacement or spare part for existing IBC Control MiniMax installations in commercial HVAC and ventilation systems requiring reliable rotor speed control and monitoring.
