OMRON Photoelectric Switch Sensor E3JM-R4M4-G Source 24-240V AC 12-240V DC 250V AC 30V DC

€200,00
€200,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
OMRON Photoelectric Switch Sensor E3JM-R4M4-GOMRON Photoelectric Switch Sensor E3JM-R4M4-GOMRON Photoelectric Switch Sensor E3JM-R4M4-GOMRON Photoelectric Switch Sensor E3JM-R4M4-GOMRON Photoelectric Switch Sensor E3JM-R4M4-GOMRON Photoelectric Switch Sensor E3JM-R4M4-G

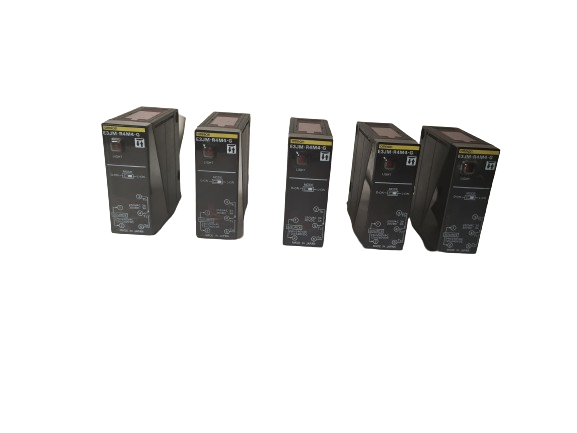

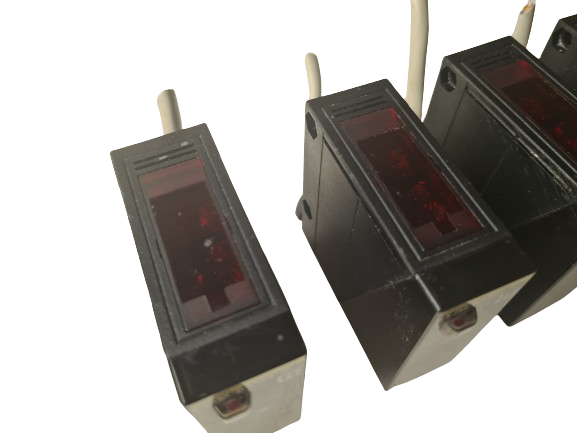

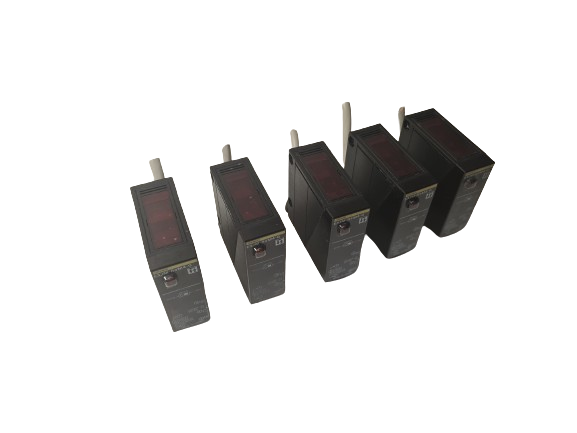

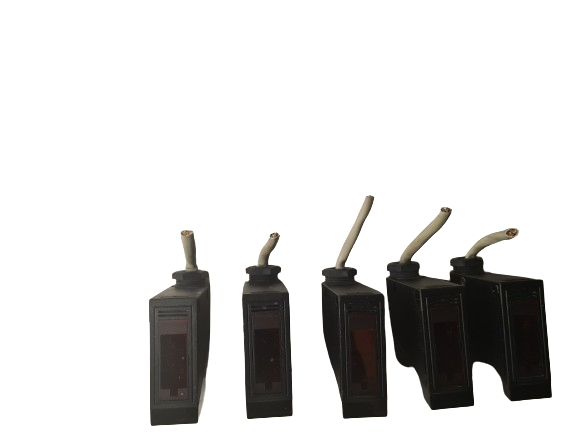

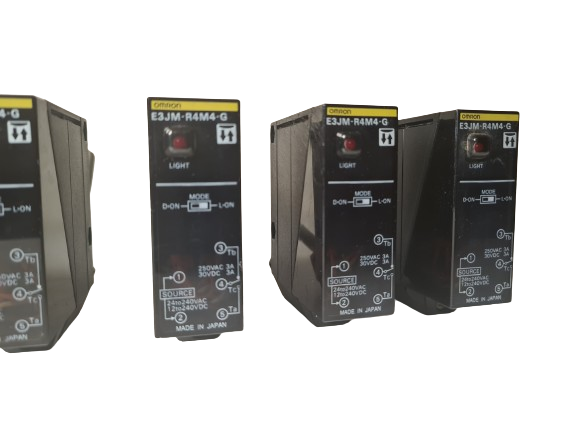

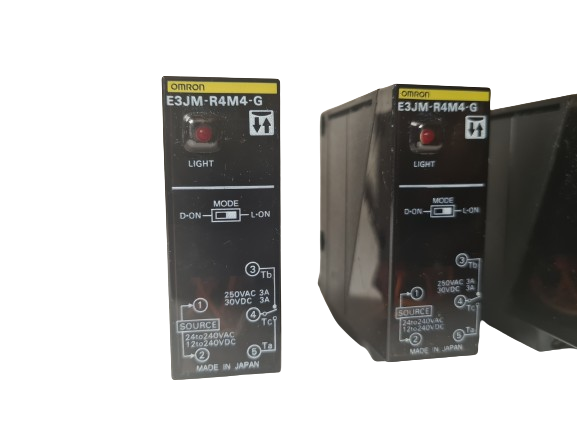

Omron E3JM-R4M4-G Photoelectric Switch Sensor — Retro-Reflective, 4m, Relay Output — Lot of 5

Built-in power supply retro-reflective sensor with M.S.R. function and relay output

Overview

This lot is 5 units of the Omron E3JM-R4M4-G, a retro-reflective photoelectric sensor from the E3JM series with a built-in AC/DC power supply, removing the need for a separate power converter. Featuring M.S.R. (polarized) function to reduce false triggering from shiny objects, and paired with the E39-R1 reflector for a 4m sensing range, it provides reliable object detection with a relay output directly compatible with a wide range of control voltages.

Key Features

  • Built-in AC/DC power supply: Directly accepts 24-240V AC or 12-240V DC, eliminating the need for a separate control-panel power source.
  • Polarized retro-reflective sensing (M.S.R.): Uses polarized light with the included E39-R1 reflector to reduce false triggering from shiny or reflective surfaces, at a 4m sensing range.
  • SPDT relay output: Rated 250V AC, 3A (cosφ=1) max, directly switches loads without additional interface relays; selectable Light-ON/Dark-ON operation.
  • Fast 30ms response time: Suited to standard industrial object detection speeds.
  • Sealed IP66 housing: ABS construction with PG13.5 conduit entry, terminal block connection, rated for demanding industrial environments.
  • Visible red LED indicator light: Simplifies alignment and status confirmation during installation and maintenance.

What's Included (Lot of 5)

Model Function Qty
E3JM-R4M4-G Retro-reflective photoelectric sensor, relay output 5

Technical Specifications

Sensing method: Retro-reflective (polarized, M.S.R.), with E39-R1 reflector, 4m range.

Supply voltage: 24-240V AC or 12-240V DC.

Control output: SPDT relay, 250V AC 3A (cosφ=1) max, 5V DC 10mA min.

Power consumption: 2W.

Response time: 30ms max.

Connection: Terminal block, PG13.5 conduit entry.

Ambient temperature / humidity: Operating -25°C to 55°C, storage -30°C to 70°C; operating humidity 45-85%, storage 35-95% (no condensation).

Protection rating: IP66 (IEC 60529).

Weight: 270g per unit.

Compatibility & Applications

Part of Omron's E3JM built-in power supply photoelectric sensor series, the E3JM-R4M4-G is well suited to industrial object and presence detection applications where a single sensor needs to accept a wide range of AC/DC supply voltages directly, such as conveyor systems, packaging lines, and general machine automation requiring reliable retro-reflective sensing with direct relay switching.
