Schneider Electric EPP302LCD EP Series Differential Pressure Sensor with LCD

Differential pressure sensor with digital display for HVAC duct and filter monitoring — functional unit with cosmetic wear, see condition notice

Overview

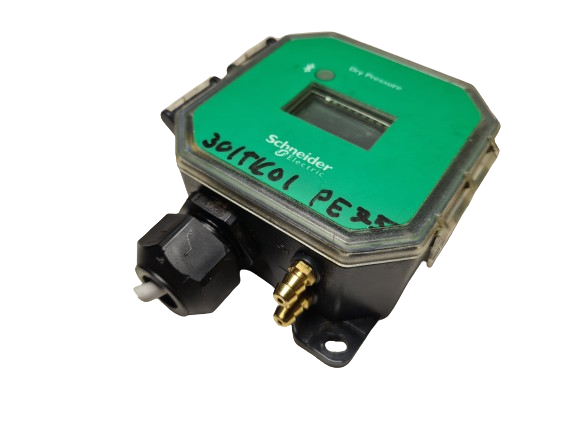

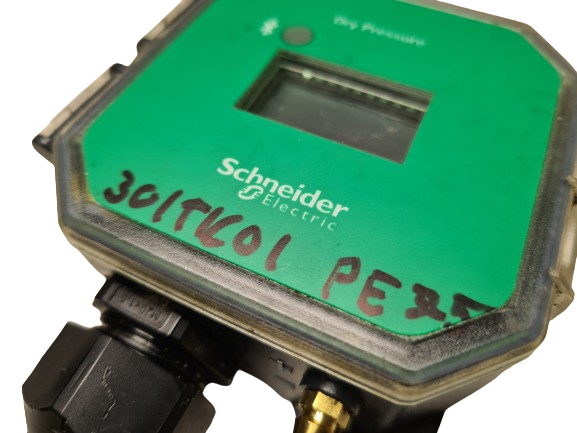

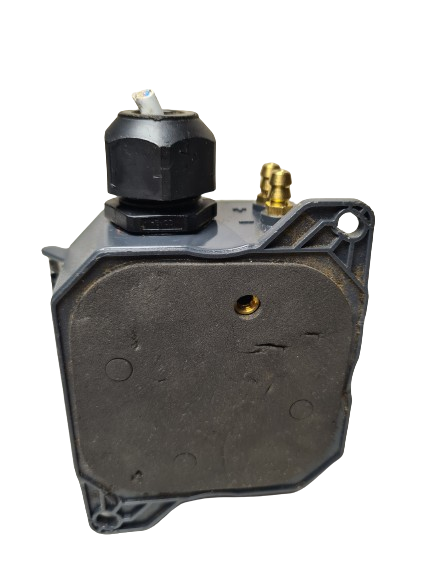

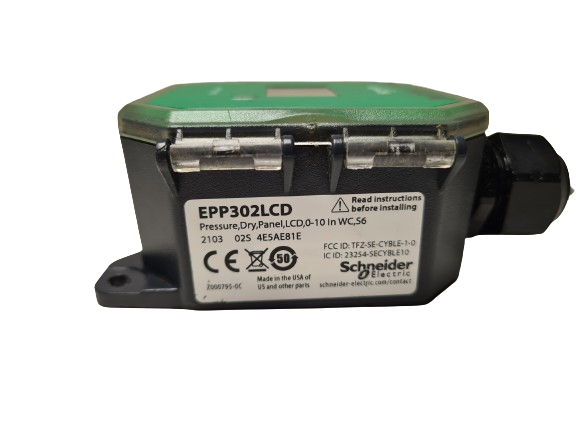

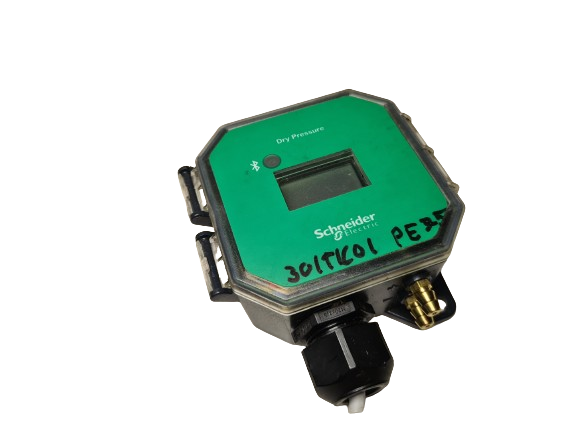

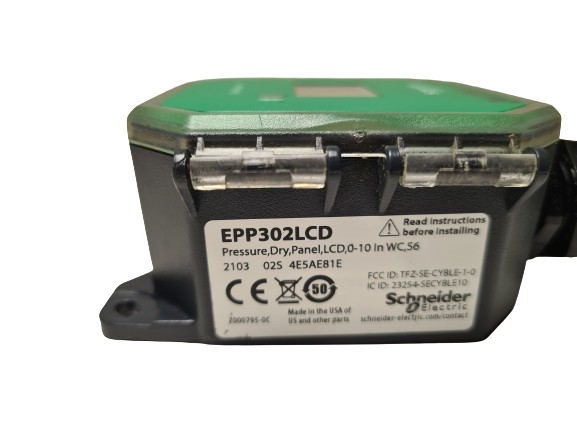

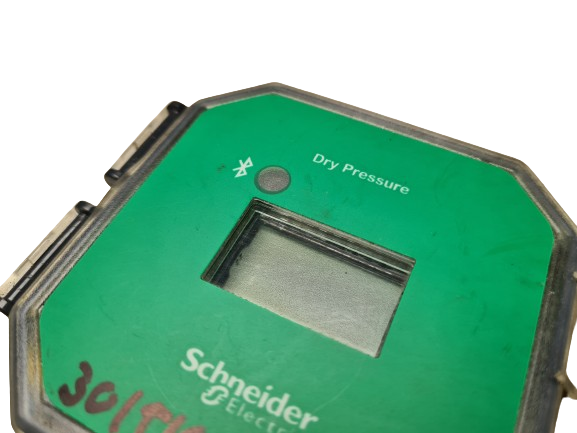

This is a Schneider Electric EPP302LCD, an EP series differential pressure sensor with an integrated LCD display, part of the TAC product range. Designed to measure differential pressure in air and gas systems, it is commonly used for duct pressure monitoring, filter monitoring, fan monitoring, VAV control, and air velocity monitoring in HVAC and building automation applications. This particular unit shows cosmetic wear such as scratches or dents but remains fully functional; please review the listing photos closely before purchase.

Key Features

  • Differential pressure measurement: Measures differential pressure in air or gas systems.
  • Multiple HVAC applications: Suited to duct pressure monitoring, filter monitoring, fan monitoring, VAV control, and air velocity monitoring.
  • Integrated LCD display: Onboard 17 x 28 mm display for local readout of measured values.
  • IP65-rated enclosure: Dust-tight and protected against water jets, suited to demanding installation environments.
  • Flexible power input: Accepts a rated supply of 12-30V DC or 24V AC.
  • Compact, lightweight design: Net weight of just 0.125 kg.

What's Included

Model Function Qty
EPP302LCD EP series differential pressure sensor with LCD 1

Model: EPP302LCD | Brand: Schneider Electric | Product Range: TAC | IP65 Rated | Condition: Functional, cosmetic scratches/dents possible — see photos

Technical Specifications

Product type: EPP302LCD, EP series differential pressure sensor.

Type of measurement: Differential pressure.

Controlled fluid: Air, gas.

Display size: 17 x 28 mm.

Fitting size / type: 6 mm (0.24"), male.

IP degree of protection: IP65.

Dimensions (D x H x W): 42 mm x 112 mm x 88 mm.

Probe diameter / length: 7 mm / 188 mm.

Net weight: 0.125 kg.

Ambient operating temperature: -20°C to 60°C.

Rated supply voltage: 12-30 V DC or 24 V AC.

Compatibility & Applications

This sensor is suited to HVAC and building automation systems requiring differential pressure measurement for duct pressure, filter condition, fan status, VAV control, or air velocity monitoring. Buyers should confirm their power supply falls within the 12-30V DC or 24V AC rating, that the 6 mm male fitting matches their tubing connections, and review the listing photos to assess cosmetic condition before purchase.
