Invertek Drives O/P ODE-2-24400-3KA42 Optidrive E2

€120,99
€120,99
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Invertek Drives O/P ODE-2-24400-3KA42 Optidrive E2Invertek Drives O/P ODE-2-24400-3KA42 Optidrive E2Invertek Drives O/P ODE-2-24400-3KA42 Optidrive E2Invertek Drives O/P ODE-2-24400-3KA42 Optidrive E2Invertek Drives O/P ODE-2-24400-3KA42 Optidrive E2

Invertek Drives Optidrive E2 ODE-2-24400-3KA42

3-phase 4kW variable frequency drive with flexible analog control and keypad/PC programming

Overview

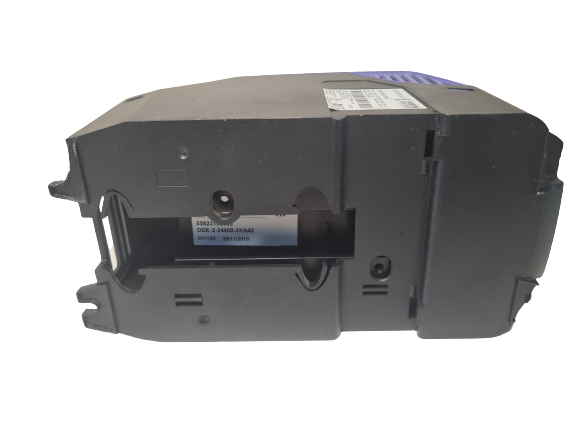

The Invertek Drives Optidrive E2 ODE-2-24400-3KA42 is a 3-phase variable frequency inverter supporting motors up to 4kW, with a 3 x 400V AC output and a 3 x 380-480V AC input voltage range. It offers flexible rotational speed control via 0-10V, 4-20mA, or 0-20mA input signals, and can be programmed via the front keypad or PC software. With a wide output frequency range and multiple analog and digital I/O, this drive is a versatile choice for general industrial motor control applications. This item may have broken or missing parts — please review the provided photos carefully, as the listing reflects the item's exact condition.

Key Features

  • Flexible speed reference input: Accepts 0-10V, 4-20mA, or 0-20mA signals for rotational speed setting.
  • Wide output frequency range: Configurable from 0 to 500Hz for varied motor speed control needs.
  • Adjustable ramp times: Starting and stopping times configurable from 0.1 to 600 seconds.
  • Dual programming methods: Configurable via front-panel keypad or connected PC software.
  • Multiple I/O channels: 4 digital inputs, 1 analog input, 2 digital outputs, and 1 analog output for flexible system integration.
  • Wide operating temperature range: Rated for -10°C to 50°C ambient conditions.
  • IP20 protection: Suitable for standard control cabinet installation.

What's Included

Item Function Qty
Invertek Optidrive E2 ODE-2-24400-3KA42 3-phase variable frequency inverter, 4kW 1

Brand: Invertek Drives | Series: Optidrive E2 | Model: ODE-2-24400-3KA42

Technical Specifications

Max motor power: 4kW.

Output voltage: 3 x 400V AC.

Input voltage range: 3-phase, 380–480V AC.

Speed reference input: 0-10V, 4-20mA, or 0-20mA.

Voltage output: 0-10V.

Programming method: Keypad or PC.

I/O: 4 digital inputs, 1 analog input, 2 digital outputs, 1 analog output.

Output frequency: 0-500Hz.

Ramp times: 0.1-600s (start/stop).

Current rating: 9.5A.

Operating temperature: -10°C to 50°C.

IP rating: IP20.

Compatibility & Applications

This drive is well suited for general industrial motor control applications such as pumps, fans, conveyors, and small production machinery requiring 3-phase 4kW motor drives. Its flexible analog input options and dual programming methods make it a practical fit for integrators standardizing on Invertek Optidrive E2 hardware, whether as a replacement part or as an expansion unit within an existing control system.
