MurrElektronik 85163 MCS-B power supply 1-phase IN 100-265VAC OUT 24V/

  • 85163 MURRELEKTRONIK MCS-B power supply 1-phase IN: 100-265VAC OUT: 24V/5ADC
  • 85163 MURRELEKTRONIK MCS-B power supply 1-phase IN: 100-265VAC OUT: 24V/5ADC - A1 Customer
  • 85163 MURRELEKTRONIK MCS-B power supply 1-phase IN: 100-265VAC OUT: 24V/5ADC - A1 Customer
1 4

MurrElektronik 85163 MCS-B power supply 1-phase IN 100-265VAC OUT 24V/5ADC

€50,00
€50,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
85163 MURRELEKTRONIK MCS-B power supply 1-phase IN: 100-265VAC OUT: 24V/5ADC85163 MURRELEKTRONIK MCS-B power supply 1-phase IN: 100-265VAC OUT: 24V/5ADC - A1 Customer85163 MURRELEKTRONIK MCS-B power supply 1-phase IN: 100-265VAC OUT: 24V/5ADC - A1 Customer

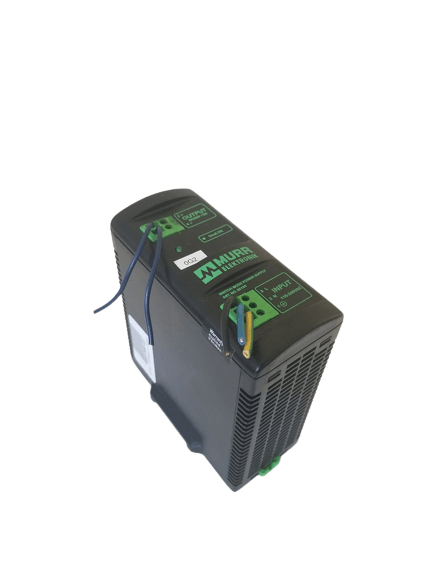

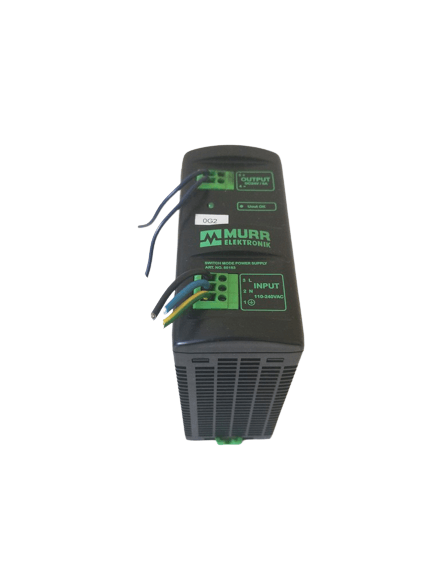

Murrelektronik MCS-B 85163 Power Supply, 24V/5A DC

Single-phase DIN rail power supply with adjustable output for industrial control cabinets

Overview

This is a Murrelektronik MCS-B 85163 power supply, a single-phase unit converting a 100-265V AC input into a regulated, adjustable 24V DC output at up to 5A. Designed for DIN rail mounting, this power supply provides short-circuit and overload protection along with a wide operating temperature range, making it suited to industrial control cabinets requiring reliable, efficient DC power.

Key Features

  • Wide AC input range: Accepts 100-265V AC at 50-60Hz, single-phase.
  • Adjustable 24V DC output: SELV-rated output, ±1% accuracy, adjustable from 22-28V.
  • Temperature-derated output current: Delivers 5A at up to +40°C, or 4A at up to +55°C.
  • Mains failure bridging: Provides at least 10ms bridging at 110V AC or 80ms at 230V AC.
  • Low ripple and spikes: Max. 20 mV eff/rms ripple, max. 100 mV ss/pp spikes.
  • Short-circuit and overload protected: Built-in protection for reliable operation.
  • Parallel/serial operation: Supports up to 5 units in parallel or 2 units in series.
  • LED output indicator: Green LED for output voltage status.
  • High efficiency: 86% at 115V AC, 87% at 230V AC.

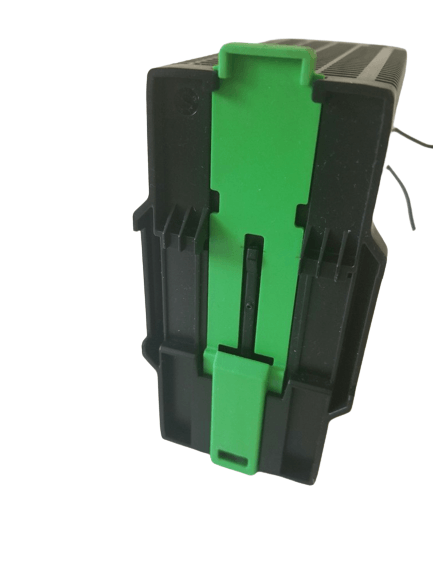

  • DIN rail mounting: TH35 rail mount per EN 60715.

What's Included

Model Function Qty
MCS-B (85163) Single-phase power supply, 24V/5A DC 1

Part No.: 85163 | Brand: Murrelektronik | Mounting: DIN Rail TH35

Technical Specifications

Product type: MCS-B, single-phase power supply.

Input voltage: 100-265 V AC.

Primary fusing (external): Max. 10 A.

Input current: 2 A (110V AC); 1.16 A (230V AC).

Inrush current (after 1ms): Max. 30 A.

Frequency: 50-60 Hz.

Output voltage: 24 V DC (SELV), ±1%; adjustable 22-28V.

LED display: Green LED for output voltage.

Output current: 5 A (+40°C); 4 A (+55°C).

Mains failure bridging time: Min. 10 ms (110V AC); min. 80 ms (230V AC).

Ripple: Max. 20 mV eff/rms.

Spikes: Max. 100 mV ss/pp.

Unit protection: Short-circuit and overload protected.

Parallel/serial usage: Max. 5 units parallel / max. 2 units serial.

Standards: IEC 61010-2-201, EN 61204-3, EN 55011 A.

Mounting method: DIN rail, TH35 (EN 60715).

Temperature range: -25°C to +40°C (derating to +50°C); storage -25°C to +85°C.

Relative humidity: 5-95%, no condensation.

Efficiency: 86% (115V AC); 87% (230V AC).

Dimensions (H x W x D): 115 x 62 x 125 mm.

Compatibility & Applications

This power supply is suited to industrial control cabinets and automation systems requiring a regulated, adjustable 24V DC supply with high efficiency and reliable protection features. Buyers should confirm their AC mains input falls within the 100-265V range and that the output current rating (temperature-dependent) meets their connected load requirements before installation.
