Axis Communications P12 Mk II Main Unit – Network Camera Processor (P/N 0896-001-02)

€70,00
€70,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Axis-Communications-v1Axis-Communications-v2Axis-Communications-v4Axis-Communications-v5Axis-Communications-v6Axis-Communications-v7

Axis Communications P12 Mk II Main Unit — Network Camera Processor (P/N 0896-001-02)

Main processing unit for Axis P12-series modular network camera systems

Overview

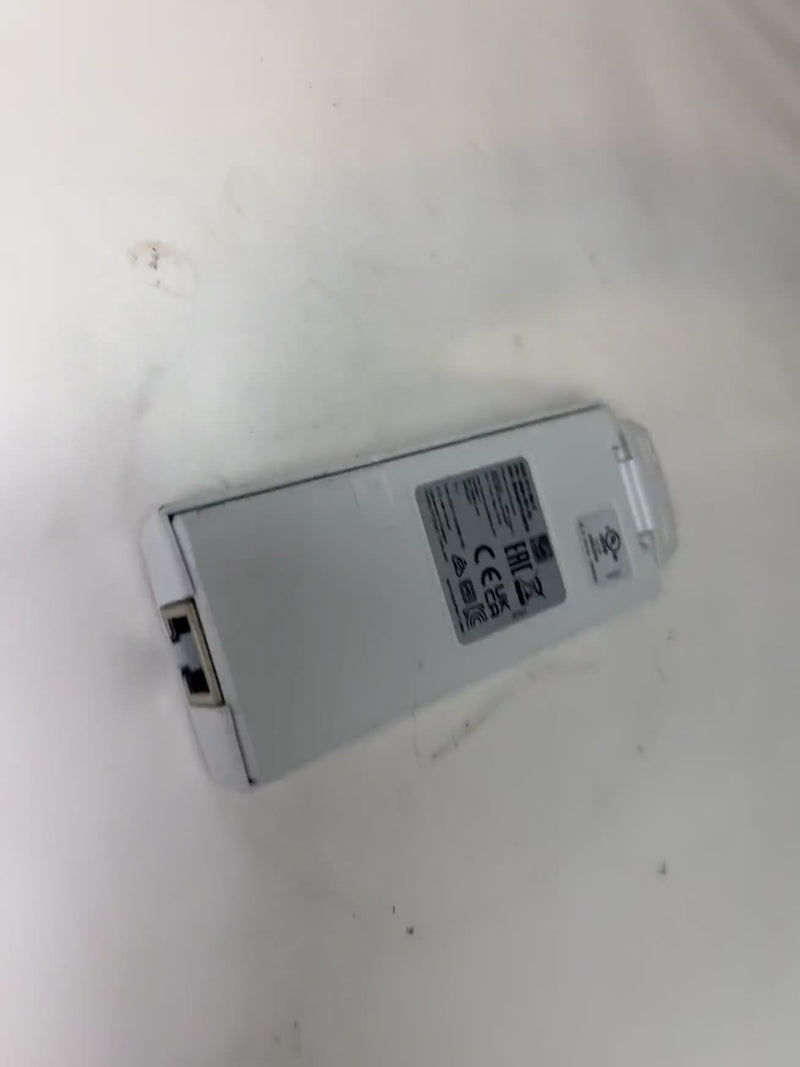

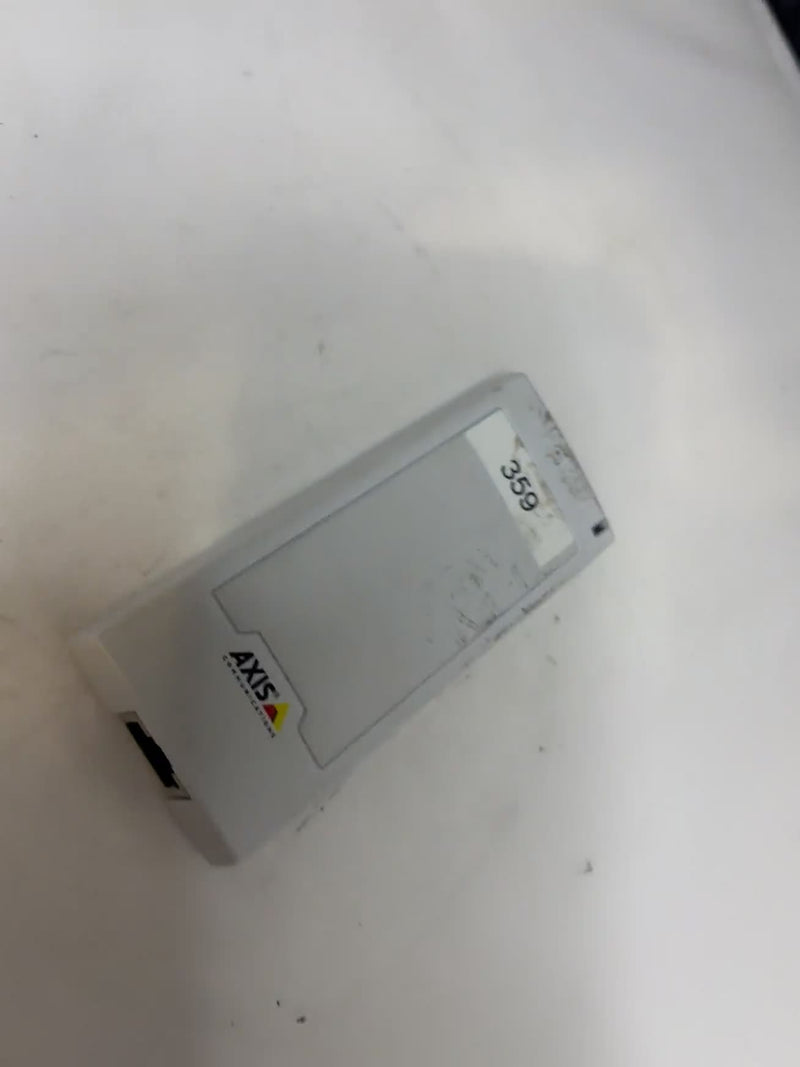

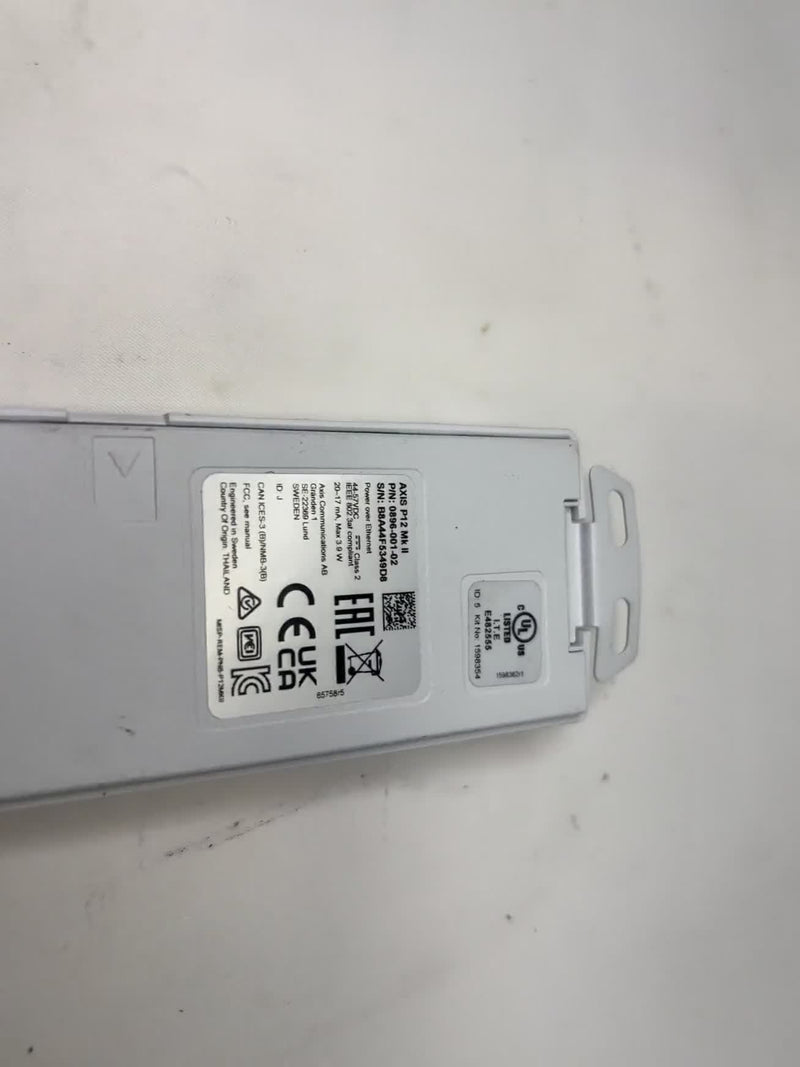

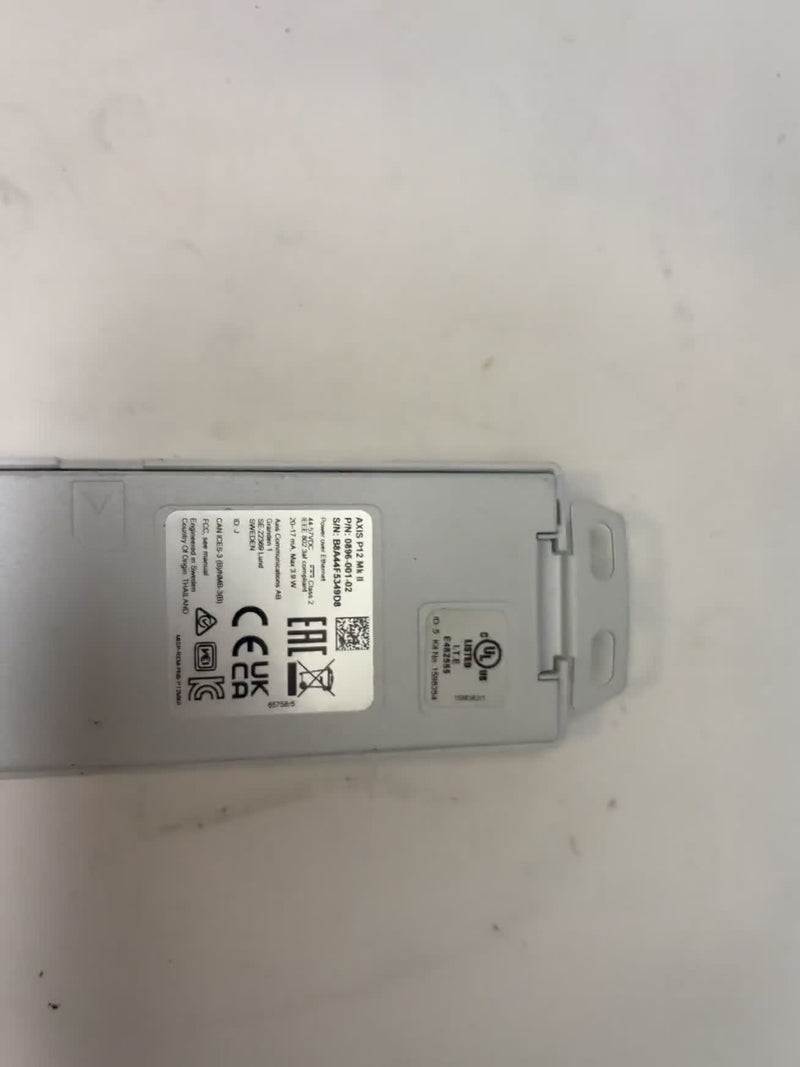

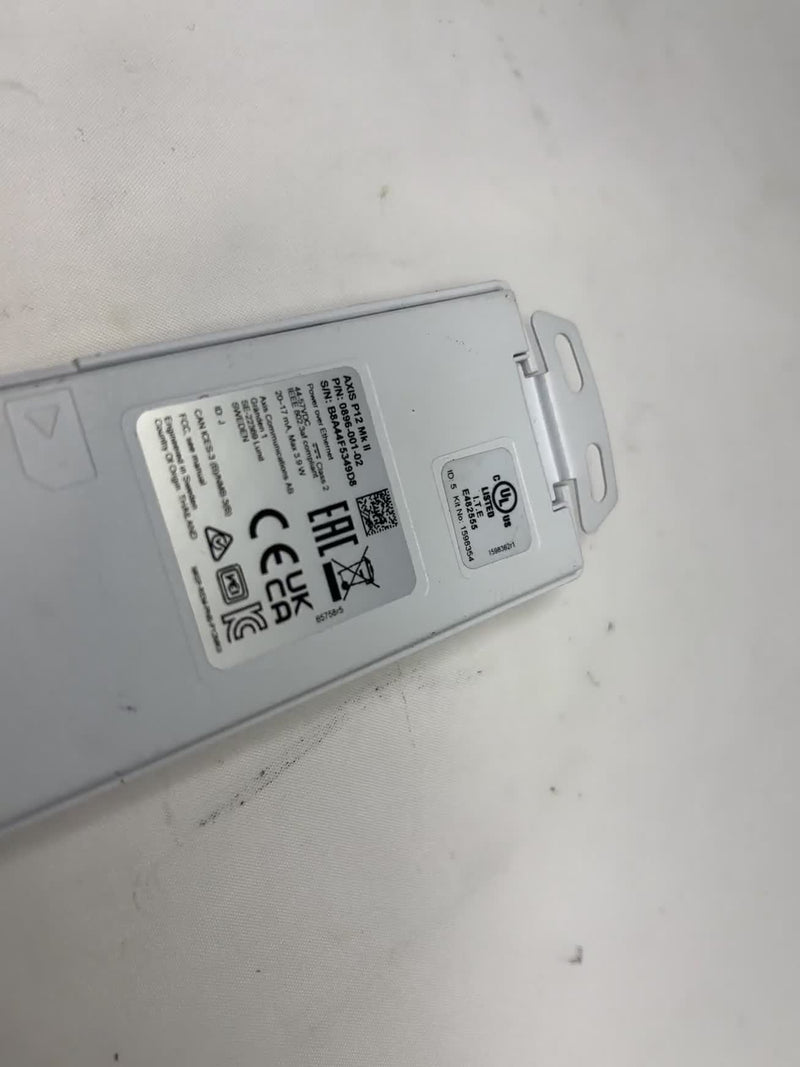

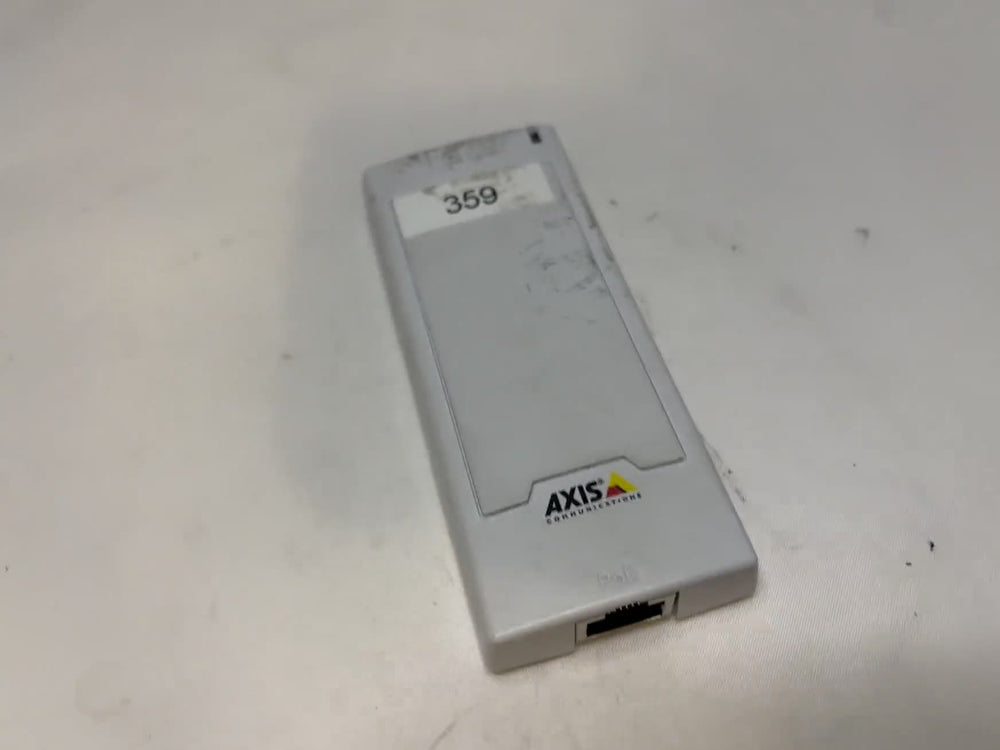

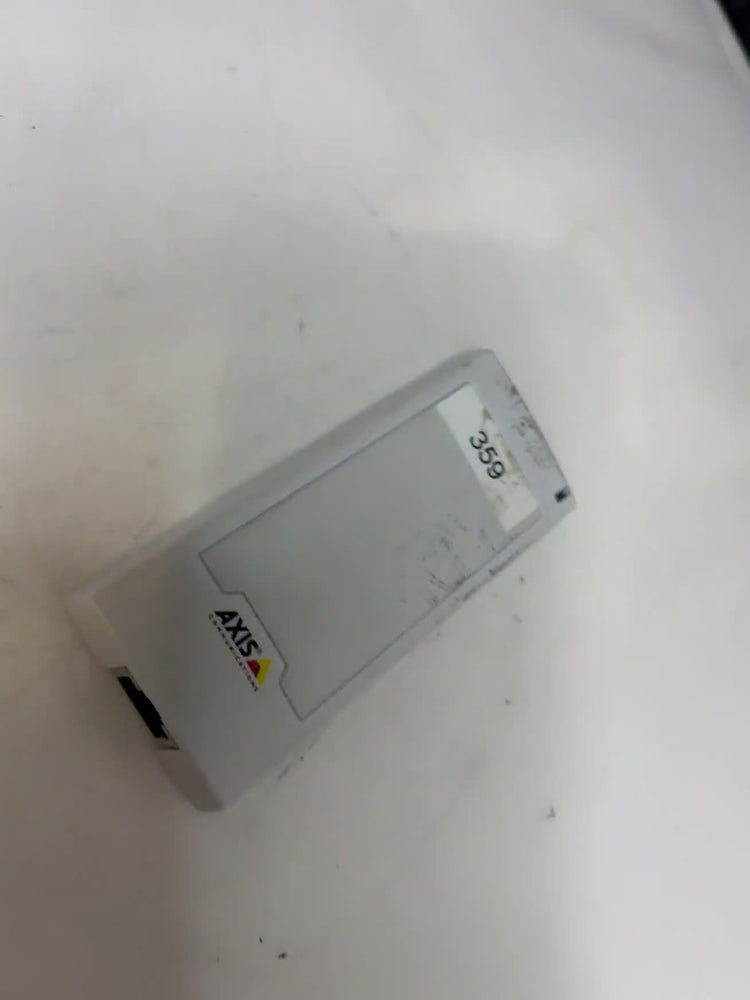

This is an Axis Communications P12 Mk II Main Unit, Part No. 0896-001-02, the processing core of Axis's P12-series modular network camera system. In the modular design, this main unit handles video processing, network communication, and power delivery, while connecting to a separate sensor unit (lens and image sensor) via a detachable cable — allowing the compact sensor to be placed discreetly while the main unit sits elsewhere with more available space. The main unit features a status LED, control button, RJ12 connector for the sensor unit cable, a PoE network connector, and a microSD card slot for local storage.

Key Features

  • Single-cable Power over Ethernet: Powered and networked over a single Ethernet cable via PoE, simplifying installation without a separate power supply run.
  • RJ12 sensor unit connector: Connects to a compatible Axis P12-series sensor unit via a detachable RJ12 cable; the cable can be shortened for tidy installation but should not be extended or otherwise modified.
  • MicroSD card slot: Supports local edge storage for recorded video directly on the main unit.
  • 512 MB RAM / 256 MB Flash memory: Onboard memory typical of the P12 Mk II platform, supporting video processing and analytics workloads.
  • Steel and plastic casing: Durable main unit housing, PVC-free construction.
  • Analytics-ready platform: Depending on the connected sensor unit and firmware, supports Axis analytics applications such as Motion Guard, Fence Guard, and Loitering Guard, plus third-party AXIS Camera Application Platform (ACAP) apps.

What's Included

Item Function Qty
P12 Mk II Main Unit Network camera processing/main unit 1

P/N: 0896-001-02

Technical Specifications

Power over Ethernet: IEEE 802.3af compliant, Class 2.

Power requirements: 44–57V DC, 20–17 mA, max. 3.9W.

Memory: 512 MB RAM, 256 MB Flash.

Connectors: RJ12 (sensor unit), PoE network connector, microSD card slot.

Casing: Steel and plastic, PVC-free.

Compatibility & Applications

The P12 Mk II Main Unit pairs with Axis P12-series sensor units (such as the P1245, P1265, and P1275 Mk II range) to form a complete modular network camera, with the sensor unit mountable up to 15 m away via the detachable RJ12 cable. This modularity suits discreet indoor surveillance in retail, banking, and similar environments where the visible sensor needs to be compact while the main processing unit is installed out of sight.
