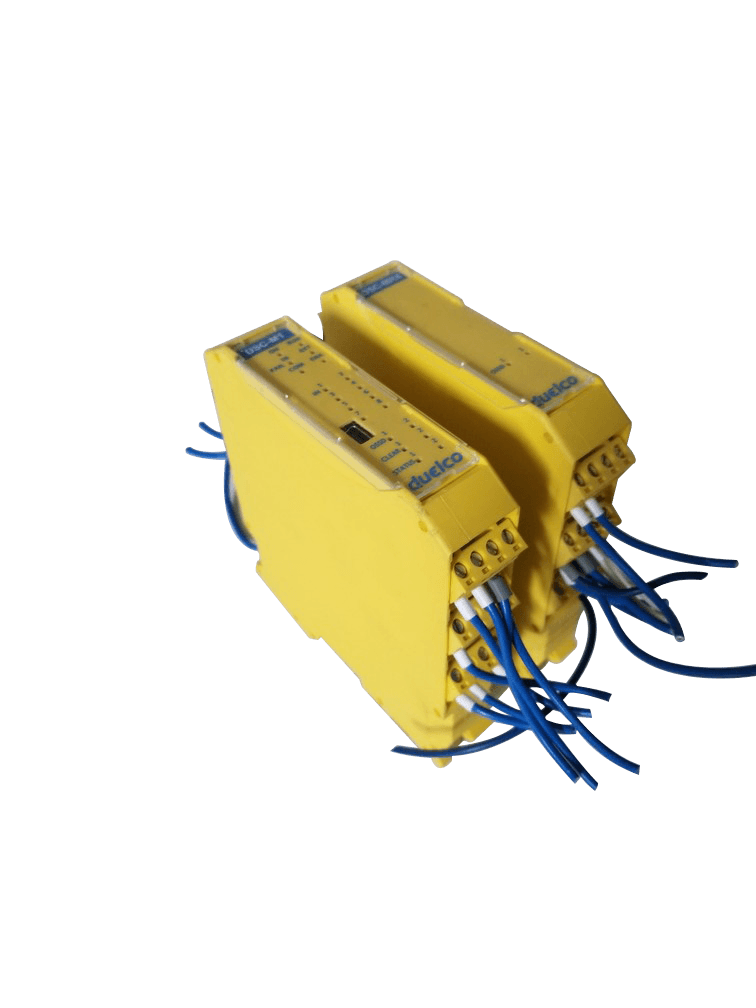

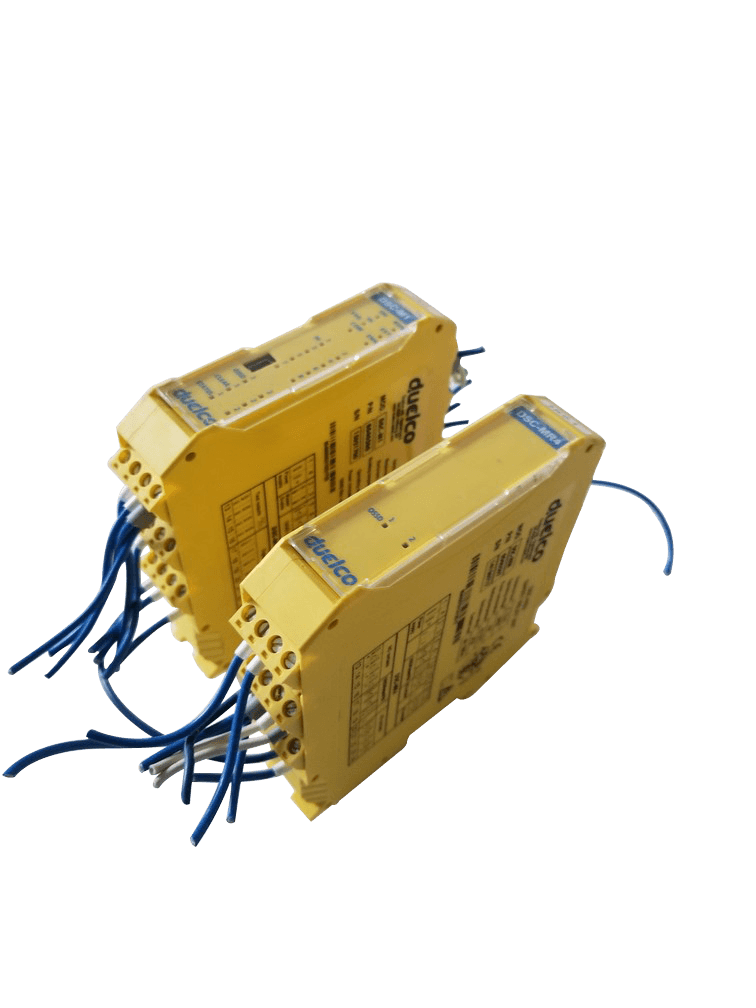

Duelco DSC-M1 Safety Controller + DSC-MR4 Safety Relay

SIL3/PLe programmable safety controller with 4-output relay expansion module — priced per lot

Overview

This lot pairs a Duelco DSC-M1 main safety controller with a DSC-MR4 safety relay output expansion unit, both part of Duelco's DuelcoSC programmable safety controller range. < cite index="35-1">The DSC-M1 can be used as a standalone unit or to monitor expansion units, and is programmable via USB interface using the included Duelco Safety Designer software, offering 8 digital inputs, 2 OSSD output pairs (400 mA), and 2 programmable signal outputs (100 mA) at Safety Category 4 – PLe – SIL3. The DSC-MR4 expands the system with 4 additional guided-contact safety relay outputs, each providing N.O. and N.C. contacts. Made in Italy, this combination is well suited for machine safety systems requiring configurable, PLC-style safety logic rather than traditional hard-wired relay circuits.

Key Features

  • SIL3/PLe safety rating: Both units meet high safety integrity requirements for demanding machine safety applications.
  • Programmable safety logic: Configurable via the included Duelco Safety Designer software over USB, reducing wiring complexity compared to traditional relay-based safety circuits.
  • Standalone or expandable: < cite index="35-1">DSC-M1 can operate as a standalone unit or control a series of expansion units, allowing the system to scale as needed.
  • 4-output relay expansion: < cite index="36-1">DSC-MR4 provides four N.O. guided contact safety relay outputs with related external relay feedback.
  • Broad sensor compatibility: < cite index="36-1">The DSC platform monitors optoelectronic sensors (safety light curtains, scanners, safety photocells), mechanical switches, safety mats, emergency stops, and two-hand controls.
  • Fast response times: DSC-M1 responds in 10+32.5ms; DSC-MR4 relay response time of 12ms.
  • Memory card support: Configuration can be transferred between units via MCM memory card for simplified machine maintenance and replacement.

What's Included

Item Function Qty
Duelco DSC-M1 Main programmable safety controller 1
Duelco DSC-MR4 4-output safety relay expansion module 1

Brand: Duelco | Platform: DuelcoSC | Models: DSC-M1, DSC-MR4 | Made in Italy

Technical Specifications

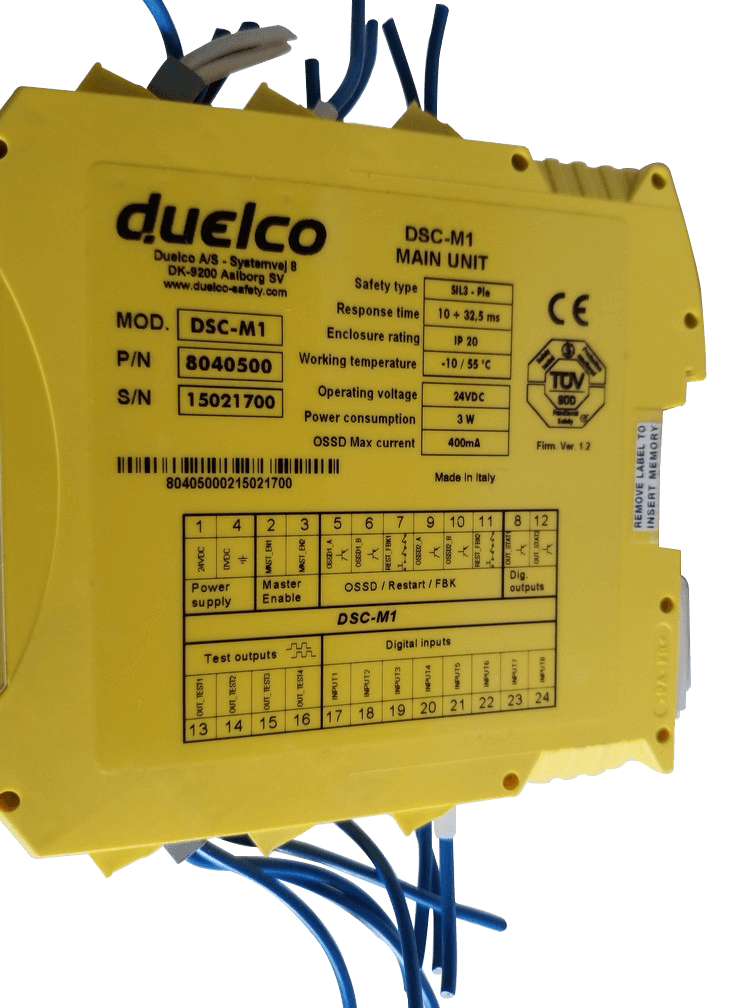

DSC-M1: Safety type SIL3-PLe; response time 10 + 32.5ms; enclosure IP20; working temperature -10°C to 55°C; operating voltage 24VDC; power consumption 3W; OSSD max. current 400mA.

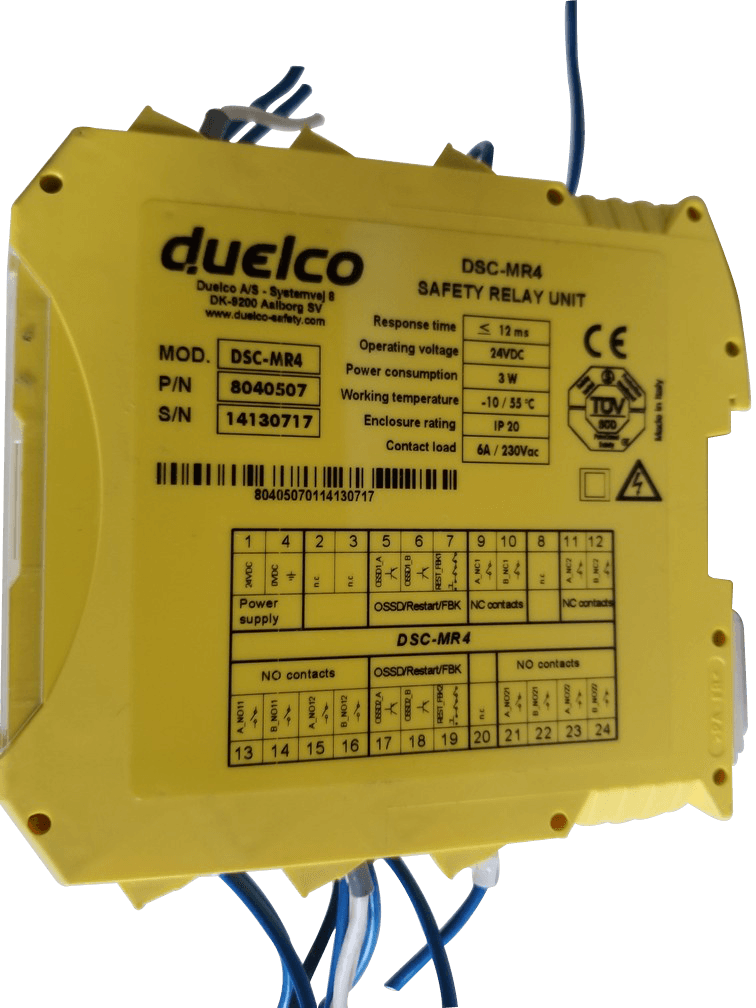

DSC-MR4: Response time 12ms; operating voltage 24VDC; power consumption 3W; working temperature -10°C to 55°C; enclosure IP20; contact load 6A/230V AC.

Compatibility & Applications

This combination is well suited for machine safety systems requiring configurable, multi-input/output safety logic — such as light curtains, safety mats, emergency stops, and two-hand controls — in place of traditional hard-wired relay-based safety circuits. It's a practical fit for integrators standardizing on the Duelco DuelcoSC platform for scalable, software-configurable machine safety.

A1Customer — Industrial Automation Equipment | Tampere, Finland
