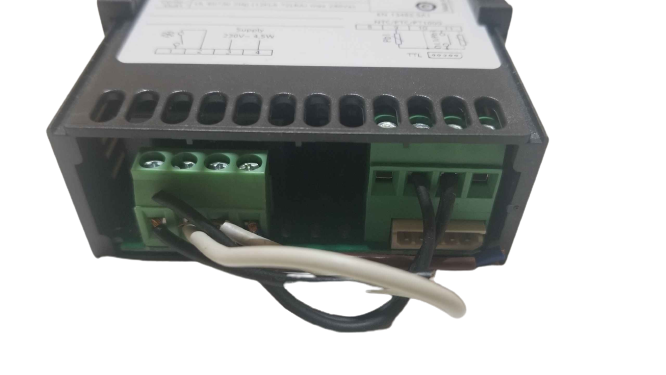

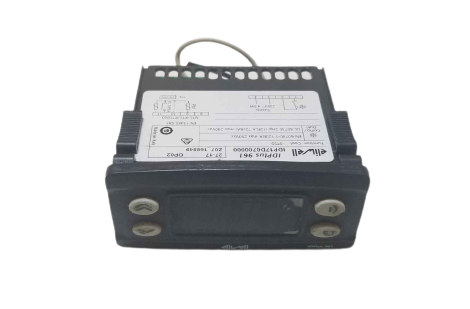

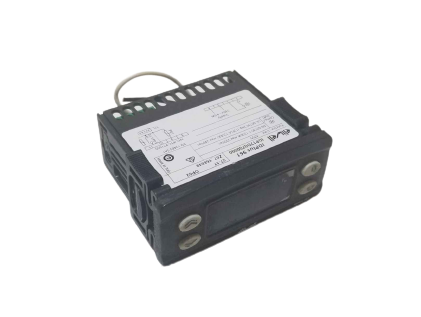

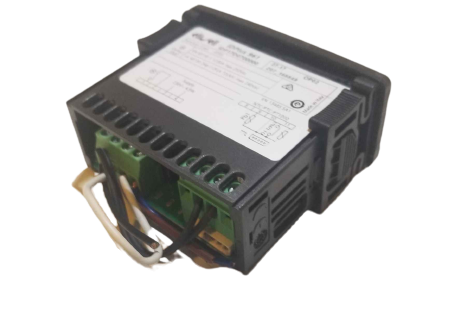

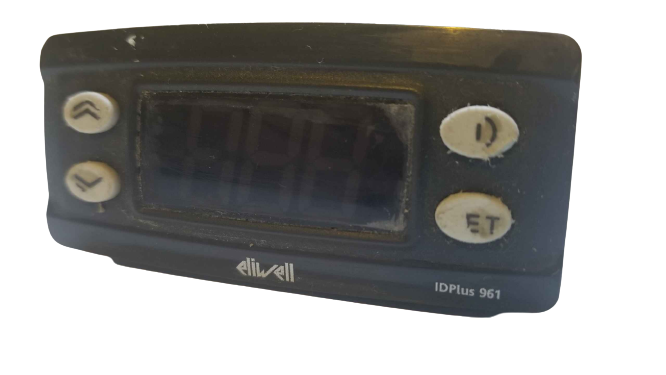

Eliwell ID Plus 961 Digital Temperature Controller

Multi-probe digital temperature controller for refrigeration and process control applications

Overview

This is an Eliwell ID Plus 961 digital temperature controller, a 230V compact controller supporting NTC, PTC, or Pt1000 probe inputs for accurate temperature measurement and control. With a dedicated relay output and configurable auxiliary input, this controller is suited to refrigeration, HVAC, and general process temperature control applications.

Key Features

  • Multi-probe compatibility: Accepts NTC (-50.0 to 110.0°C), PTC (-55.0 to 140.0°C), or Pt1000 (-55.0 to 150.0°C) probe types.
  • Configurable auxiliary input: 1 configurable input, selectable as digital (SELV) or analogue (PTC/NTC/Pt1000).
  • Relay output: 1 SPST relay output rated 2Hp, 12(12)A at 250V~ (N.A. rating).
  • Compact dimensions: 74 x 32 x 59 mm, suited to panel installation.
  • Low power consumption: Maximum 4.5W.
  • Standard AC power supply: 230V~ ±10%, 50/60Hz.
  • UL rated for 240VAC supply: Rated for 250VAC, 8-12A, UL listed at 240VAC supply.

What's Included

Model Function Qty
ID Plus 961 Digital temperature controller 1

Model: ID Plus 961 | Brand: Eliwell

Technical Specifications

Product type: ID Plus 961, digital temperature controller.

Rating: 250VAC, 8-12A; UL listed at 240VAC supply.

Display range — NTC probe: -50.0 to 110.0°C.

Display range — PTC probe: -55.0 to 140.0°C.

Display range — Pt1000 probe: -55.0 to 150.0°C.

Analogue inputs: 1 x PTC/NTC/Pt1000.

Configurable inputs: 1 x digital (SELV) or analogue (PTC/NTC/Pt1000).

Digital outputs: 1 x SPST, 2Hp, 12(12)A, 250V~ (N.A.).

Power consumption: 4.5W max.

Power supply: 230V~ ±10%, 50/60Hz.

Dimensions: 74 x 32 x 59 mm.

Compatibility & Applications

This controller is suited to refrigeration, HVAC, and process control applications requiring accurate temperature measurement with a choice of NTC, PTC, or Pt1000 probe types. Buyers should confirm their probe type and connected load match this controller's input and relay output specifications before installation.
