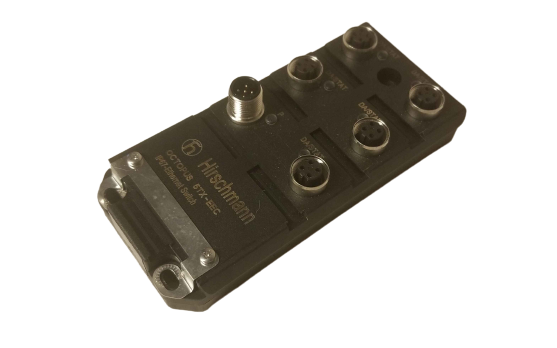

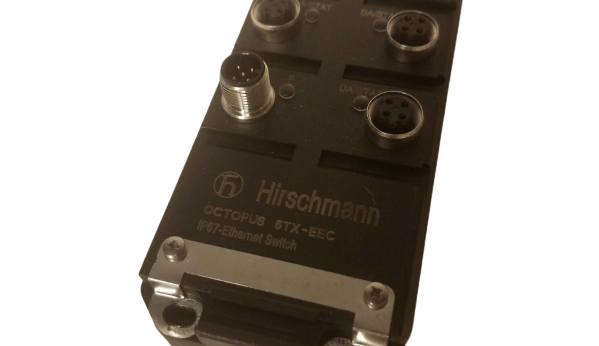

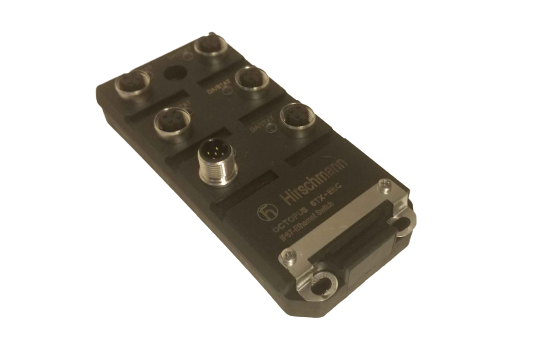

Hirschmann OCTOPUS 5TX-EEC IP67 Industrial Ethernet Switch

5-port, IP67-rated unmanaged Ethernet switch for demanding industrial environments

Overview

This is a Hirschmann OCTOPUS 5TX-EEC Ethernet switch, specially designed for industrial environments and supporting both 10 Mbit/s Ethernet and 100 Mbit/s Fast Ethernet. Conforming to IP67 protection, this switch is dust-tight and protected against the effects of temporary immersion in water, making it suited to direct installation in harsh industrial settings without the need for an additional protective enclosure.

Key Features

  • 10/100 Mbit/s Ethernet support: Compliant with IEEE 802.3 (10BASE-T) and 802.3u (100BASE-TX) standards over copper.
  • Five twisted pair ports: Five 10/100 Mbit/s ports with shielded M12 connectors, supporting connection of up to five DTEs or other TP/TX network segments.
  • Auto-negotiation and auto-crossing: TP ports support auto-negotiation, auto-polarity, and auto-crossing for simplified installation.
  • IP67-rated protection: Dust-tight and protected against the effects of temporary immersion in water.
  • Direct screw-mount installation: Fitted at the installation site using screws, without requiring an additional cabinet.
  • Wide DC power input: Operates from a 9.6-32V DC, Class 2 supply, drawing 0.23-0.075A.

What's Included

Model Function Qty
OCTOPUS 5TX-EEC 5-port industrial Ethernet switch, IP67 1

Brand: Hirschmann | Ports: 5 x M12 (shielded) | IP67 Rated

Technical Specifications

Product type: OCTOPUS 5TX-EEC, industrial Ethernet switch.

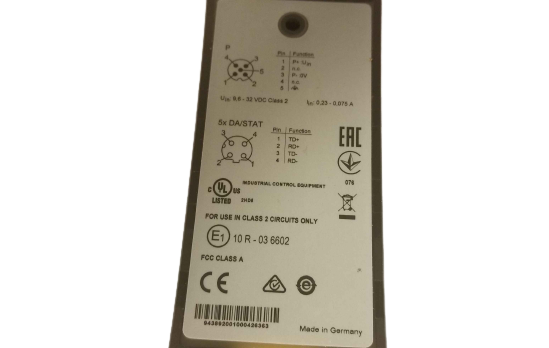

Power supply: 9.6-32 V DC, Class 2, 0.23-0.075 A.

Data rate support: 10 Mbit/s Ethernet and 100 Mbit/s Fast Ethernet.

Standards compliance: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX).

Ports: 5 x 10/100 Mbit/s twisted pair ports, shielded M12 connectors.

Port features: Auto-negotiation, auto-polarity, auto-crossing.

Mounting: Screw-mounted at installation site.

Protection class: IP67 (dust-tight; protected against effects of temporary immersion in water).

Compatibility & Applications

This switch is suited to industrial Ethernet networking applications requiring direct, cabinet-free installation in harsh environments, such as machine-mounted networking or outdoor industrial installations. Buyers should confirm their DC power supply falls within the 9.6-32V range and that their network devices use compatible M12 twisted pair connections before installation.
