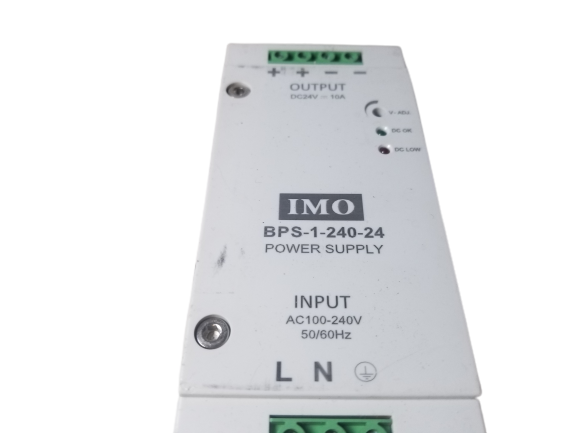

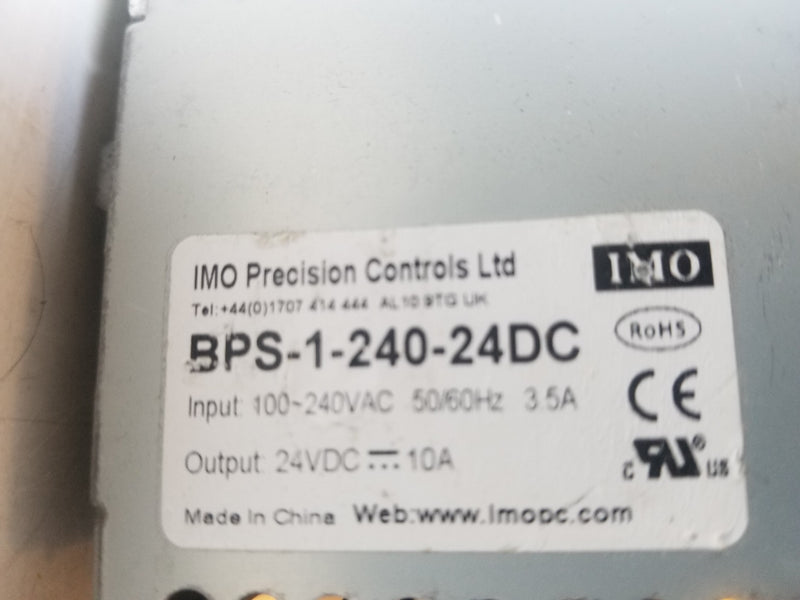

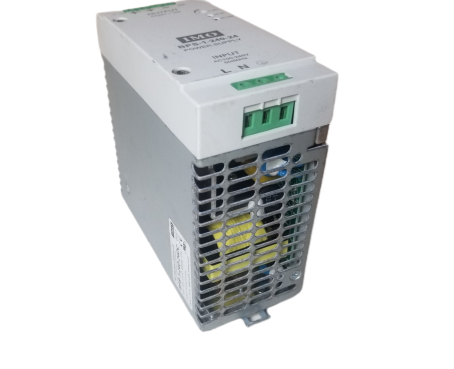

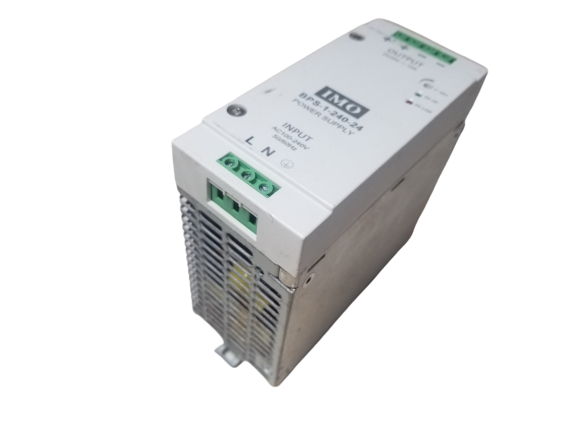

IMO BPS-1-240-24DC Power Supply

240W metal-cased power supply with universal AC input and adjustable 24V DC output

Overview

This is an IMO BPS-1-240-24DC Power Supply, designed to provide reliable AC-to-DC power conversion for industrial control systems. With a durable metal case, universal AC input, and adjustable 24V DC output, it delivers stable power along with built-in overload and overvoltage protection for connected automation equipment.

Key Features

  • High output power: 240W with a rated output current of 10A.
  • Universal AC input: Accepts 90-264VAC at 47-63 Hz.
  • Adjustable output voltage: Range of 22 to 28V.
  • Built-in protection: Rated overload protection at 11A and over voltage protection at 33V.
  • Durable metal case: Suited for robust industrial installation.
  • Wide operating temperature range: Rated from -25°C to +70°C.

What's Included

Model Function Qty
BPS-1-240-24DC Power supply 1

Brand: IMO | Case Material: Metal | Part Status: Active

Technical Specifications

Model: BPS-1-240-24DC.

Output wattage: 240W.

Output current: 10A.

Output voltage adjustment: 22 to 28V.

Rated overload protection: 11A.

Over voltage protection: 33V.

Standby power consumption: 7W/230VAC.

Surge voltage (L-N): 2 kV.

Insulation resistance: 100M max./500VDC.

Input voltage range: 90 to 264VAC.

Input current: 2.6A at 115VAC; 1.3A at 230VAC.

Line frequency: 47 to 63 Hz.

Operating temperature: -25°C to +70°C.

Storage temperature: -40°C to +85°C.

Dimensions (L x W x D): 130 x 60 x 125 mm.

Weight: 1000 g.

Compatibility & Applications

This power supply is well suited to industrial control systems requiring reliable, high-wattage 24V DC power with built-in overload and overvoltage protection. Buyers should confirm the input voltage and output current requirements match their system before installation.
