Keyence LV-11SBP Amplifier Unit, Main Unit, PNP

High-performance PNP amplifier main unit for precision sensing applications

Overview

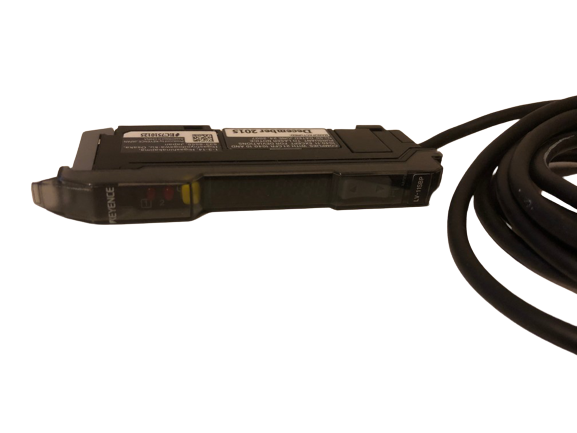

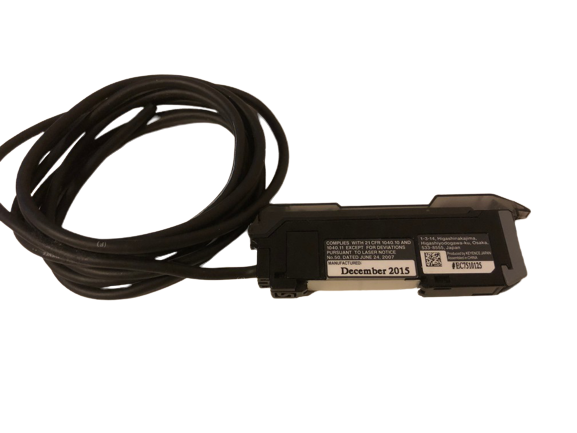

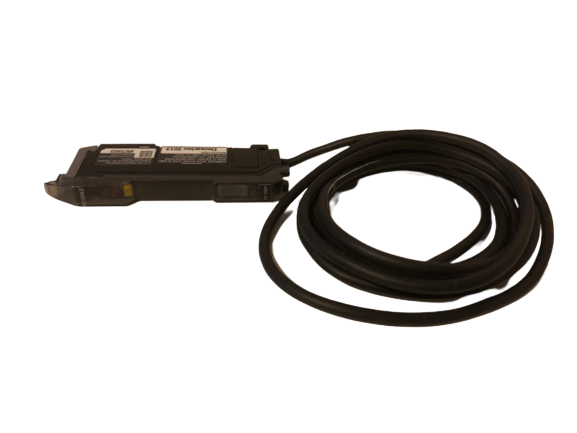

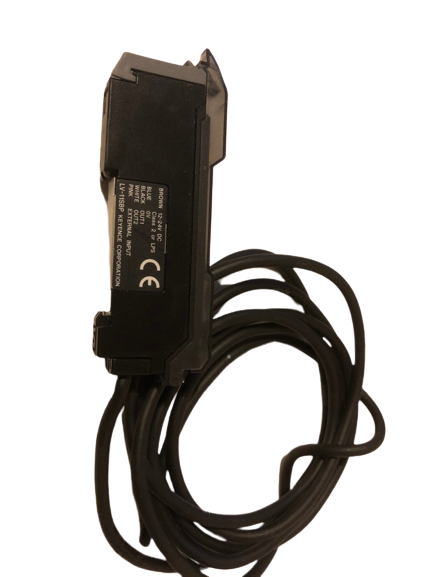

This is a Keyence LV-11SBP Amplifier Unit, a main unit type with PNP output, designed for precision sensing applications with fast response times and expandable unit configuration.

Key Features

  • Output: PNP.
  • Control output: PNP open-collector x 2 channels, 30 VDC max., 100 mA max. per output.
  • Response time (except LV-S31): ULTRA 4 ms, SUPER 2 ms, TURBO 500 µs, FINE 250 µs, HSP 80 µs.
  • Response time (LV-S31 standard mode): 500 µs, SPED2 2 ms, SPED3 8 ms, SPED4 32 ms.
  • Response time (LV-S31 high-speed mode): 250 µs.
  • Control input: Light emission stop input, external calibration, set value bank selection input, or shift input.
  • Interference prevention units: ULTRA 4x2; SUPER/TURBO 2x2; FINE/HSP 0x2.
  • Unit expansion: Up to 16 expansion units can be installed (17 units including the main unit).

What's Included

Model Function Qty
LV-11SBP Amplifier Main Unit, PNP (2m cable included) 1

Brand: Keyence | Part Status: Active

Technical Specifications

Power voltage: 12 to 24 VDC, ripple (P-P) 10% or less, Class 2.

Power consumption: Normal 1.7 W max. (70 mA max. for 24 V); Eco-Half/Eco-All 1.55 W max. (65 mA max. for 24 V).

Ambient temperature: -10 to +55°C (14 to 131°F), no freezing.

Vibration resistance: 10 to 55 Hz, double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z axis.

Material: Main body and cover, polycarbonate.

Weight: Approx. 80 g (including 2 m cable).

Compatibility & Applications

This amplifier unit is well suited to precision sensing applications in automation and control systems, offering scalable expansion for multi-point measurement setups. Buyers should confirm compatibility with their existing Keyence sensor head and control system before integration.
