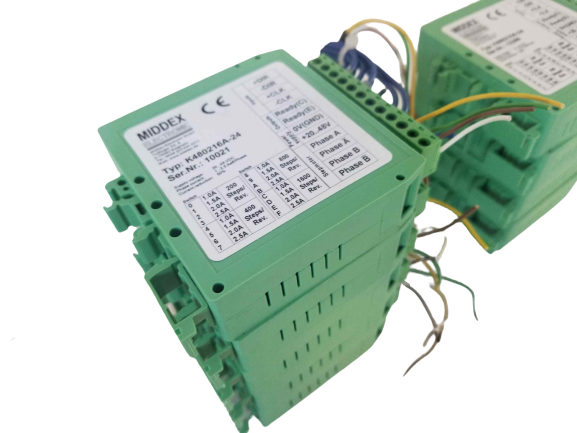

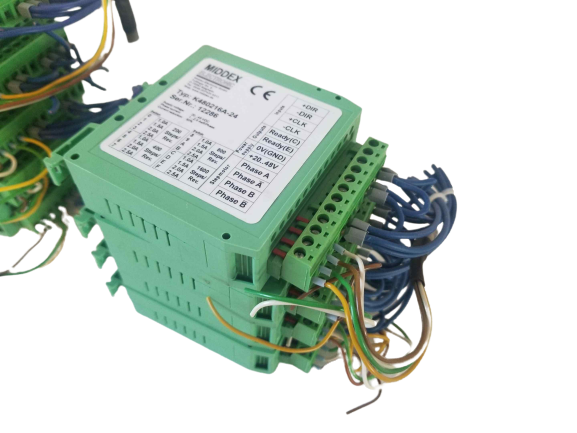

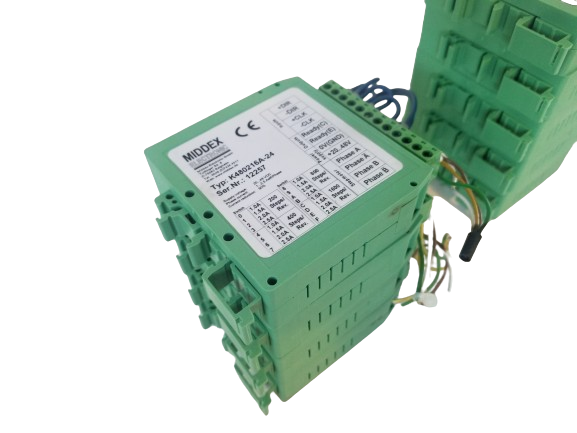

Middex-Electronic K480216A-24 Two-Phase Stepper Motor Drive — Lot of 13

DIN rail mounted stepper motor driver, 20-48VDC, distributed via Phoenix Contact

Overview

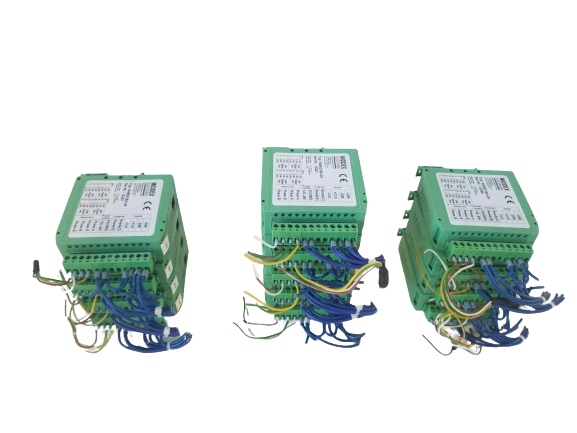

This lot is 13 units of the Middex-Electronic K480216A-24, a two-phase stepper motor driver housed in a compact, DIN rail mounted plastic enclosure. It accepts a wide 20-48VDC supply (momentary up to 52VDC) and drives 2-phase step motors with selectable phase current settings, opto-decoupled pulse/direction signal triggering, and a "Ready" output signal via opto-coupler. Its design generates low heat without requiring forced cooling, making it well suited to compact panel installations.

Key Features

  • Selectable phase current: Configurable at 1.0/1.5/2.0/2.5 Aeff per phase (1.4/2.1/2.8/3.5 A peak).
  • Automatic current reduction: Reduces output current by 50% during idle/standstill periods, minimizing motor and driver heating.
  • Selectable step resolution: 200, 400, 800, or 1600 steps/revolution.
  • Flexible signal voltage input: Opto-decoupled pulse/direction triggering compatible with 5V (low -8, rated 5, max. 8V) or 24V (low -30, rated 24, max. 30V) logic levels.
  • Opto-coupled Ready output: Provides isolated status feedback for integration into higher-level control systems.
  • Compact, low-heat design: Approx. 79 x 25 x 86 mm (H x W x D), 80g, requiring no forced cooling under normal operation.

What's Included

Model Function Qty
K480216A-24 Two-phase stepper motor drive, DIN rail mounted 13

Price listed is per lot (13 units).

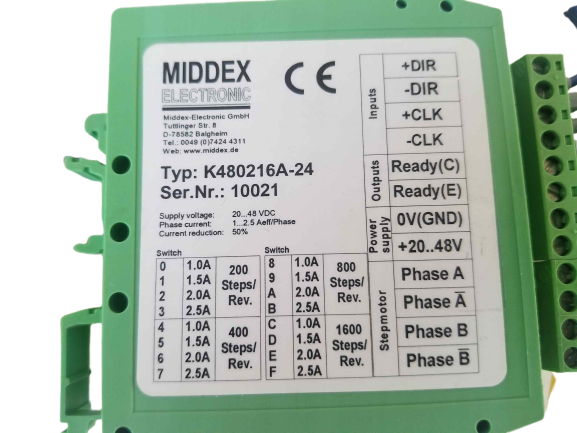

Technical Specifications

Supply voltage: 20-48 VDC (momentary up to 52 VDC).

Phase current: 1-2.5 Aeff/phase (selectable 1.0/1.5/2.0/2.5 Aeff; 1.4/2.1/2.8/3.5 A peak).

Current reduction: 50% (idle/standstill).

Step resolution: 200 to 1600 steps/revolution (200/400/800/1600 selectable).

Signal voltage: Low -8, rated 5, max. 8V; or low -30, rated 24, max. 30V.

Signal triggering: Pulse/direction, opto-decoupled.

Output signals: Ready, via opto-coupler.

Mounting / housing: DIN rail, plastic housing.

Dimensions / weight: Approx. 79 x 25 x 86 mm (H x W x D); 80 g.

Compatibility & Applications

Designed for driving 2-phase step motors, this driver is well suited to industrial positioning and motion control applications where compact, DIN rail mounted stepper control with flexible current, resolution, and signal voltage configuration is required.
