Lot of 15pc Omron Analog C200H-AD003 and Digital C200H-ID212 24VDC

€700,00
€1.020,00
€700,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Lot of 15pc Omron Analog C200H-AD003 and Digital C200H-ID212 24VDCLot Of 15pc Omron Analog C200H-AD003 And Digital C200H-ID212 24VDCLot Of 15pc Omron Analog C200H-AD003 And Digital C200H-ID212 24VDCLot Of 15pc Omron Analog C200H-AD003 And Digital C200H-ID212 24VDCLot Of 15pc Omron Analog C200H-AD003 And Digital C200H-ID212 24VDCLot Of 15pc Omron Analog C200H-AD003 And Digital C200H-ID212 24VDCLot Of 15pc Omron Analog C200H-AD003 And Digital C200H-ID212 24VDCLot Of 15pc Omron Analog C200H-AD003 And Digital C200H-ID212 24VDCLot Of 15pc Omron Analog C200H-AD003 And Digital C200H-ID212 24VDCLot Of 15pc Omron Analog C200H-AD003 And Digital C200H-ID212 24VDC

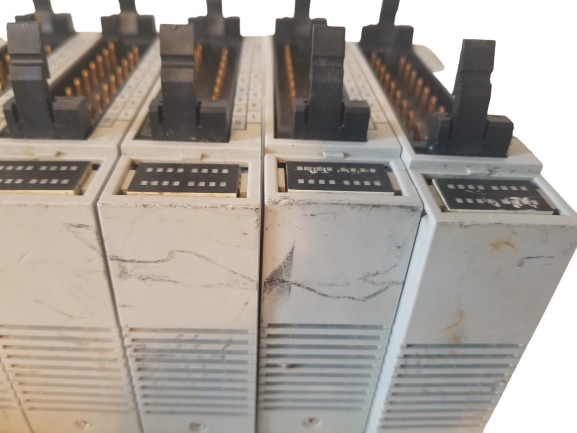

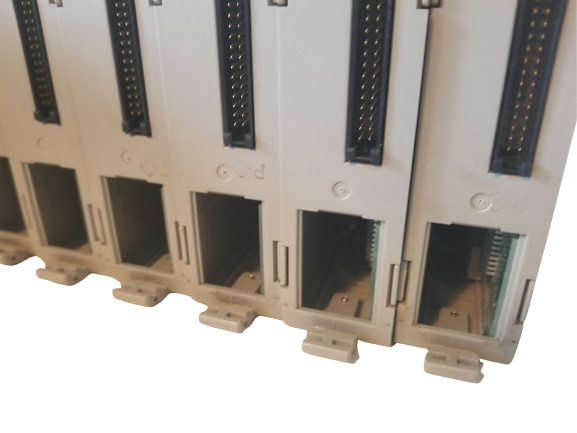

Omron C200H Module Lot — 6x C200H-ID212 Digital Input, 3x C200H-AD003 Analog Input

Digital and analog I/O modules for the SYSMAC C200H programmable controller series

Overview

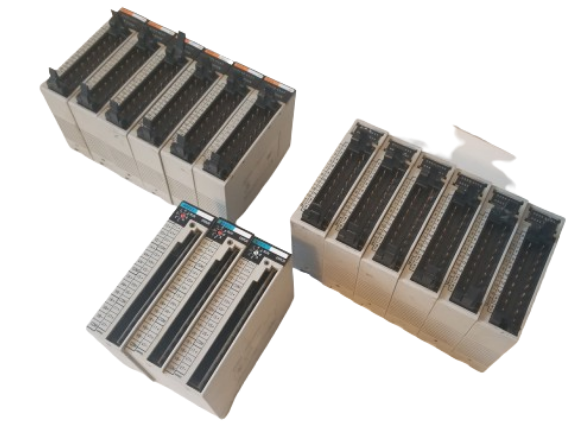

This lot combines two module types from Omron's SYSMAC C200H series: 6x C200H-ID212 16-point digital input modules at 24V DC, and 3x C200H-AD003 8-channel analog input modules. Together, they expand a C200H rack with both discrete sensor/switch signal acquisition and analog process signal monitoring, giving flexible I/O capacity for industrial automation applications.

Key Features

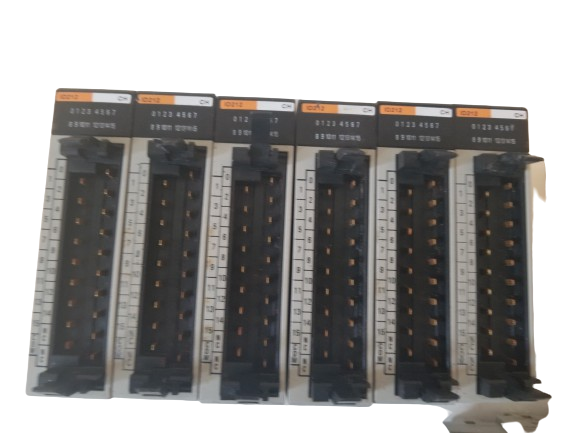

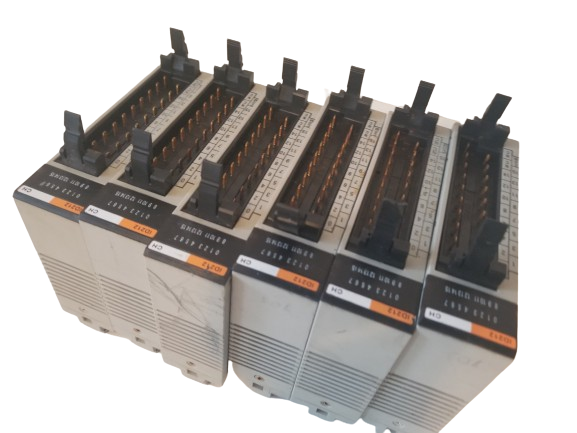

  • C200H-ID212 — 16-point Digital Input: 24V DC sink/source inputs with photocoupler isolation, LED status indicators, and removable terminal blocks for straightforward field wiring.
  • Fast response, adjustable filtering: Response time as fast as 0.1ms, with adjustable input filtering to tailor performance to the specific application.

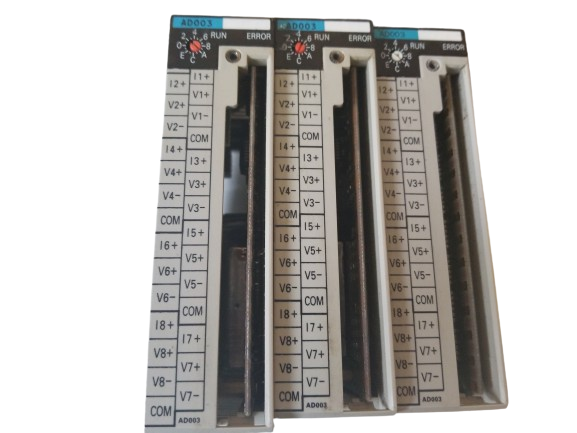

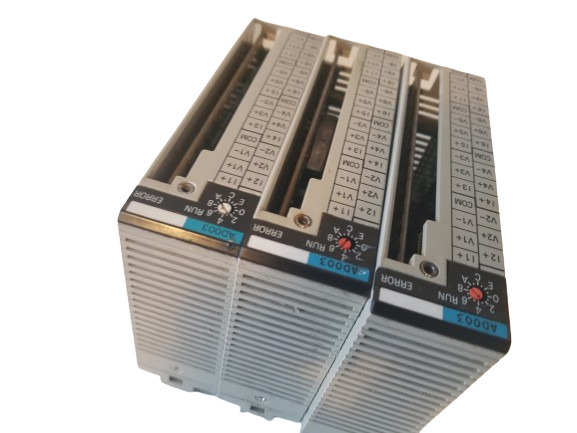

  • C200H-AD003 — 8-channel Analog Input: Accepts -10V to 10V, 0-10V, 1-5V voltage signals, or 4-20mA current signals (channels 3 and 6 dedicated to current, remaining channels to voltage).
  • Versatile high-density configuration: High I/O density per module footprint, suited to space-constrained control panel layouts.
  • Rugged industrial rating: IP30 protection, rated for 0-55°C ambient, with UL, CSA, and CE approvals.

What's Included (9 Modules Total)

Model Function Qty
C200H-ID212 16-point digital input module, 24V DC 6
C200H-AD003 8-channel analog input module 3

Technical Specifications

C200H-ID212: 16 inputs, 24V DC (+10%/-15%); 7mA input current; photocoupler isolation; internal consumption 10mA max.; 130 x 35 x 145 mm.

C200H-AD003: 8 analog input points; range -10 to 10V, 0-10V, 1-5V, or 4-20mA; 34.5 x 130 x 128 mm; approx. 0.45 kg.

Compatibility & Applications

Compatible with Omron's SYSMAC C200H series rack and CPU units, this module lot is well suited to expanding or maintaining existing C200H-based industrial automation systems requiring a mix of digital sensor/switch inputs and analog process signal monitoring.
