Lot of 24 Siemens Landis & Gyr PTM1.2Q250 250VAC PTM1.4D20 PTM1.2C PTM

  • Lot Of 24 Siemens Landis & Gyr PTM1.2Q250 250VAC PTM1.4D20 PTM1.2C PTM1.2R1K Input Output Modules
  • Lot of 24 Siemens Landis & Gyr PTM1.2Q250 250VAC PTM1.4D20 PTM1.2C PTM1.2R1K Input Output Modules
  • Lot Of 24 Siemens Landis & Gyr PTM1.2Q250 250VAC PTM1.4D20 PTM1.2C PTM1.2R1K Input Output Modules
  • Lot Of 24 Siemens Landis & Gyr PTM1.2Q250 250VAC PTM1.4D20 PTM1.2C PTM1.2R1K Input Output Modules
1 5

Lot of 24 Siemens Landis & Gyr PTM1.2Q250 250VAC PTM1.4D20 PTM1.2C PTM1.2R1K Input Output Modules

€950,00
€950,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Lot Of 24 Siemens Landis & Gyr PTM1.2Q250 250VAC PTM1.4D20 PTM1.2C PTM1.2R1K Input Output ModulesLot of 24 Siemens Landis & Gyr PTM1.2Q250 250VAC PTM1.4D20 PTM1.2C PTM1.2R1K Input Output ModulesLot Of 24 Siemens Landis & Gyr PTM1.2Q250 250VAC PTM1.4D20 PTM1.2C PTM1.2R1K Input Output ModulesLot Of 24 Siemens Landis & Gyr PTM1.2Q250 250VAC PTM1.4D20 PTM1.2C PTM1.2R1K Input Output Modules

Siemens Landis & Gyr PTM Input/Output Module Mixed Lot

Mixed lot of 24 PTM1.2Q250, PTM1.4D20, PTM1.2C, and PTM1.2R1K switching and I/O modules

Overview

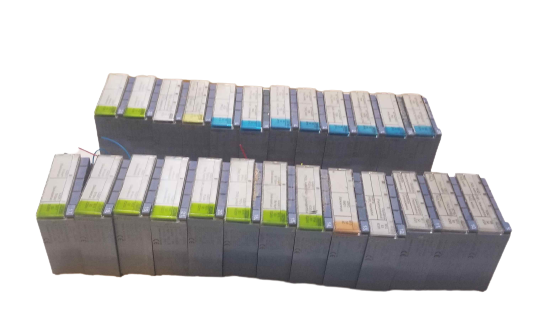

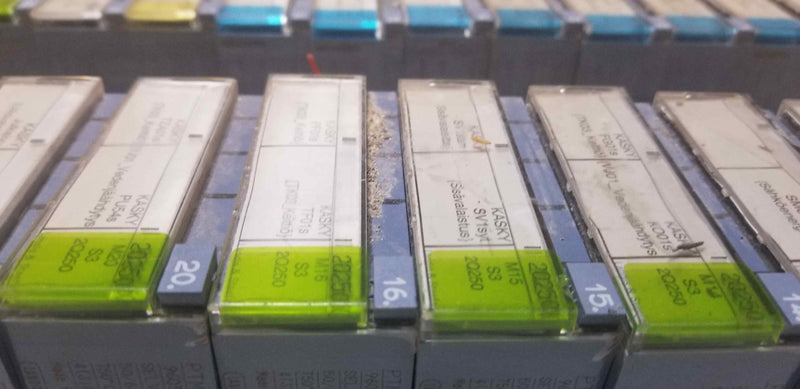

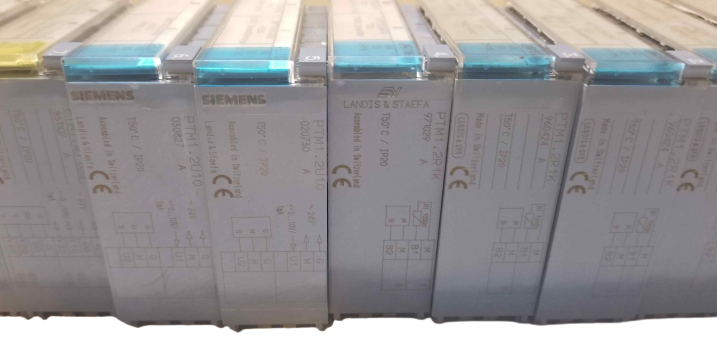

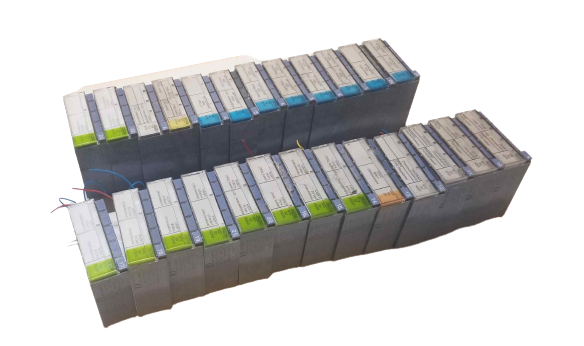

This lot includes 24 Siemens Landis & Gyr PTM Input/Output Modules, a mixed assortment of PTM1.2Q250, PTM1.4D20, PTM1.2C, and PTM1.2R1K switching and I/O modules. These modules are designed for building automation applications, providing switching outputs and I/O functionality via a P-bus connection to a building automation controller.

Key Features

  • P-bus I/O connectivity: Powered via P-bus at 24 V DC for integration with building automation controllers.
  • PTM1.2Q250 switching module: 2 change-over contacts (SPDT), switching capacity 4(3)A at 24-250 VAC.
  • PTM1.4D20 switching module: 4 normally open contacts.
  • Standard 24V AC operation: Both variants operate at 24 V AC ±20%, 50/60 Hz, 3 VA power consumption.
  • Compact enclosure: IP20-rated, suited to standard indoor control panel mounting.

What's Included

Model Function Qty
PTM1.2Q250 / PTM1.4D20 / PTM1.2C / PTM1.2R1K Mixed input/output and switching modules 24 (mixed)

Brand: Siemens (Landis & Gyr) | Degree of Protection: IP20 | Price: Per lot

Technical Specifications

PTM1.2Q250 Switching Module

Operating voltage: 24 V AC ±20%.

Frequency: 50/60 Hz.

Power consumption: 3 VA.

I/O module power supply: Via P-bus, 24 V DC.

Number of switching outputs: 2 change-over contacts (SPDT).

Switching capacity: 4(3)A, 24-250 VAC.

Max. operating temperature: 50°C.

Degree of protection: IP20.

PTM1.4D20 Switching Module

Operating voltage: 24 V AC ±20%.

Frequency: 50/60 Hz.

Power consumption: 3 VA.

Max. operating temperature: +50°C.

Number of switching outputs: 4 normally open contacts.

Degree of protection: IP20.

Compatibility & Applications

These modules are well suited to building automation systems using Siemens Landis & Gyr P-bus I/O modules for switching and control functions. Buyers should confirm compatibility with their existing P-bus controller and note that this lot contains a mix of module types before purchasing.

A1Customer — Industrial Automation Equipment | Tampere, Finland
