2x Produal PEL-N DP transmitter 0-10V 4-20mA 0-1000Pa

€270,00
€270,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Lot of 2x Produal PEL-N DP transmitter 0-10V 4-20mA 0-1000PaLot of 2x Produal PEL-N DP transmitter 0-10V 4-20mA 0-1000PaLot of 2x Produal PEL-N DP transmitter 0-10V 4-20mA 0-1000PaLot of 2x Produal PEL-N DP transmitter 0-10V 4-20mA 0-1000PaLot of 2x Produal PEL-N DP transmitter 0-10V 4-20mA 0-1000Pa

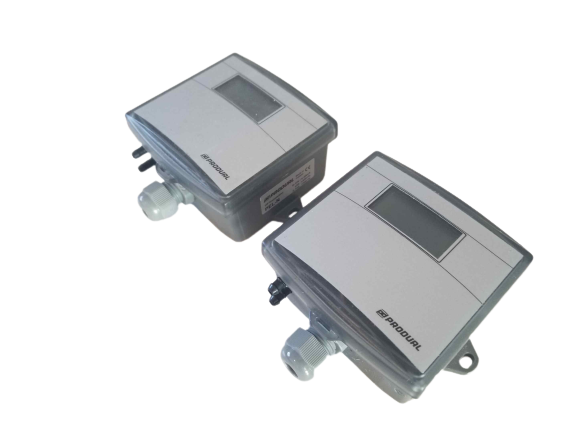

Produal PEL-N Differential Pressure Transmitter with Display, 0-10V / 4-20mA, up to 0-1000Pa — Lot of 2

Temperature-compensated pressure/differential pressure transmitter for air handling systems

Overview

This lot is 2 units of the Produal PEL-N (product no. 1131111), a pressure transmitter with integrated display for measuring pressures and pressure differences in air handling systems. The pressure measurement is temperature compensated according to ambient temperature, and the transmitter uses automatic zeroing to regularly eliminate possible zero point drift, maintaining measurement accuracy over long-term operation.

Key Features

  • Selectable pressure ranges: Configurable across 0-100, 0-200, 0-500, 0-1000, ±50, ±100, ±250, or ±500 Pa.
  • Dual output signal types: Voltage output (0-10V / 2-10V / 0-5V, <2mA) or current output (4-20mA / 0-20mA, 700Ω).
  • Integrated display: Built-in display (the "-N" designation) for local readout of pressure values.
  • Automatic zeroing: Regularly self-corrects to eliminate zero point drift, maintaining long-term measurement accuracy.
  • Temperature-compensated measurement: Pressure readings adjust according to ambient temperature for consistent accuracy.
  • Robust IP54 housing: Suitable for installation with cable routed downward in typical plant environments.

What's Included

Model Function Qty
PEL-N Differential pressure transmitter with display 2

Product No.: 1131111 | EAN: 6419767000620

Technical Specifications

Supply: 24 V AC/DC, <2 VA.

Range: 0-100, 0-200, 0-500, 0-1000, ±50, ±100, ±250, or ±500 Pa.

Time constant: 2 s (or 8 s selectable).

Voltage output: 0-10 V / 2-10 V / 0-5 V, <2 mA.

Current output: 4-20 mA / 0-20 mA, 700 Ω.

Zeroing: Automatic, regularly eliminates zero point drift.

Protection class: IP54 (cable routed downward).

Ambient temperature: 0-45°C.

Cable gland: M16.

Mounting: Screws, external lugs.

Dimensions: 105 x 102 x 46 mm.

Compatibility & Applications

Designed for measuring pressures and pressure differences in air handling systems, the PEL-N is well suited to HVAC monitoring, duct pressure sensing, filter and fan monitoring, and other building automation applications requiring reliable, temperature-compensated differential pressure measurement with local display readout.

A1Customer — Industrial Automation Equipment | Tampere, Finland
