Siemens TX-I/O System — TXI2.OPEN, TXM1.16D, TXM1.6R, TXM1.8U, TXM1.10D, and TXS1.12F10 Power Supply — Set of 7 Modules

Modular I/O system for Siemens Desigo / APOGEE building automation controllers

Overview

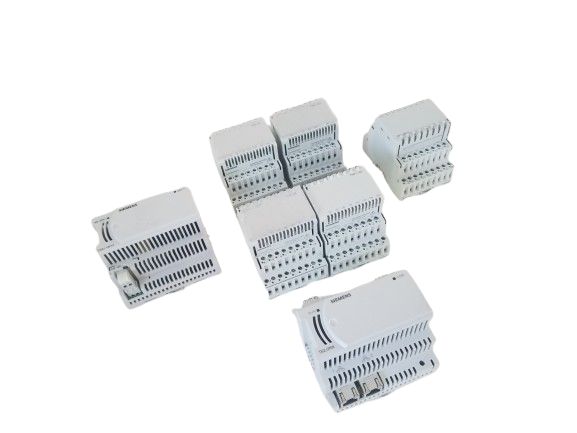

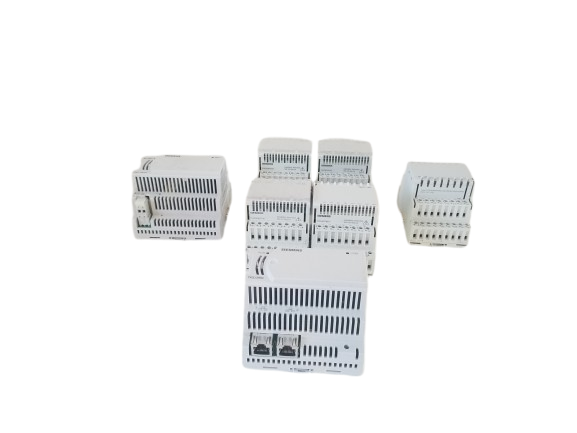

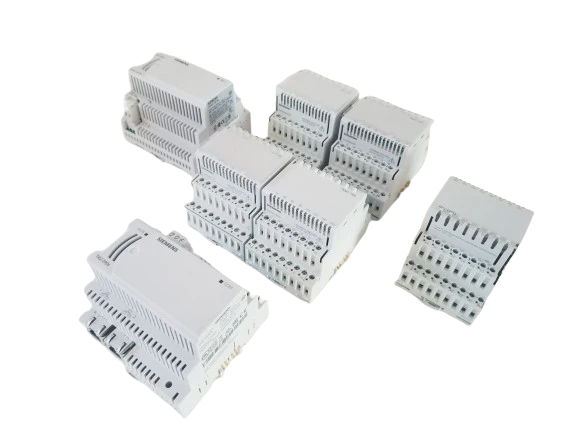

This lot is a set of 7 Siemens TX-I/O modules from the Desigo/APOGEE automation ecosystem, built around a shared island bus. It includes power supply, digital input, digital relay output, universal, and third-party integration modules, allowing a control panel to be assembled with local I/O plus connectivity to non-Siemens devices. The TXS1.12F10 power supply module anchors the I/O row, generating and passing through DC 24V for the TX-I/O modules and field devices while also feeding the bus signal to the rest of the assembly. Price is per unit; the lot totals 7 modules.

Key Features

  • TXI2.OPEN: RS232/RS485 and dual-Ethernet integration module bringing up to 160 data points from third-party systems and devices (e.g. Modbus, M-Bus, G120P, Grundfos/Wilo pumps, Danfoss) into a Desigo system.

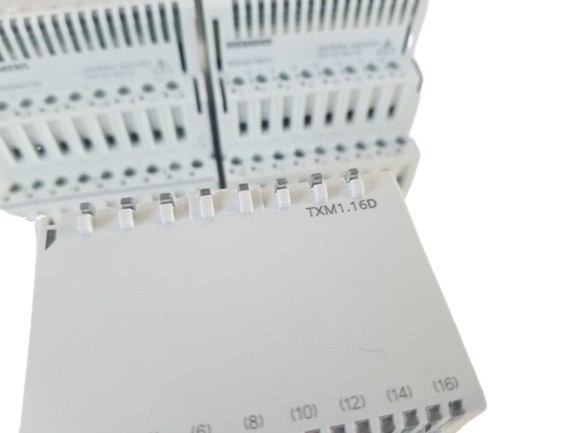

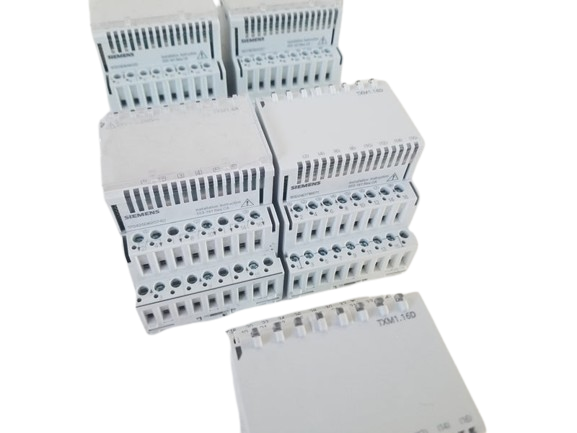

  • TXM1.16D (x2): 16-channel digital input module with static NC/NO contact inputs, each individually configurable for status signals, status pulses, or counter pulses, with a green status LED per channel.

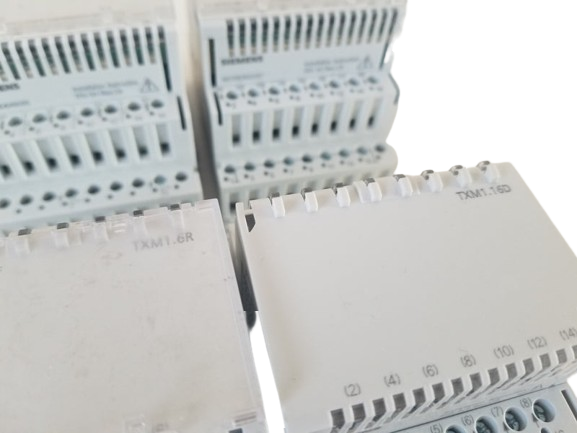

  • TXM1.6R: 6-channel digital relay output module for switching field loads directly from the I/O bus.

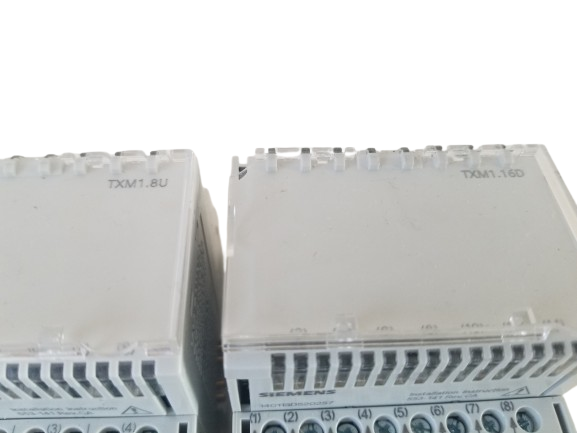

  • TXM1.8U: 8-channel universal I/O module, individually configurable per point as analog or digital input/output.
  • TXM1.10D: Additional digital input module from the TX-I/O family, sharing the same island-bus architecture as the other DI modules in this set.
  • TXS1.12F10 power supply: Generates/passes through DC 24V at 1.2A for TX-I/O modules and field devices, with a 10A field-supply fuse and status LEDs for supply health.
  • Direct field wiring: All I/O terminals are located directly on each module, allowing field devices to be wired without extra terminal strips.

What's Included (7 Modules Total)

Model Function Qty
TXI2.OPEN Third-party integration module, up to 160 data points 1
TXM1.16D 16-channel digital input module (static NC/NO) 2
TXM1.6R 6-channel digital relay output module 1
TXM1.8U 8-channel universal analog/digital I/O module 1
TXM1.10D Digital input module 1
TXS1.12F10 TX-I/O power supply module, 24V DC, 1.2A / 10A fuse 1

Price listed is per unit.

Technical Specifications

TXI2.OPEN: RS232/RS485 interface, two Ethernet ports, power from island bus (DC 24V), supports predefined applications for Modbus, M-Bus, G120P, Grundfos/Wilo pumps, Danfoss; compact DIN 43880 housing with plug-in screw terminals.

TXM1.16D: 16 digital inputs, static contact (NC/NO), individually configurable as status signals, status pulses, or counter pulses (up to 10 Hz); green LED per channel; power consumption 1.4 W.

TXM1.6R: 6 relay digital outputs, Class 1 relay rated max. 8A (slow) / max. 10A per EN 60898 characteristics B, C, D; power consumption 1.7 W.

TXM1.8U: 8 universal points, individually configurable analog/digital I/O; power consumption 1.5 W.

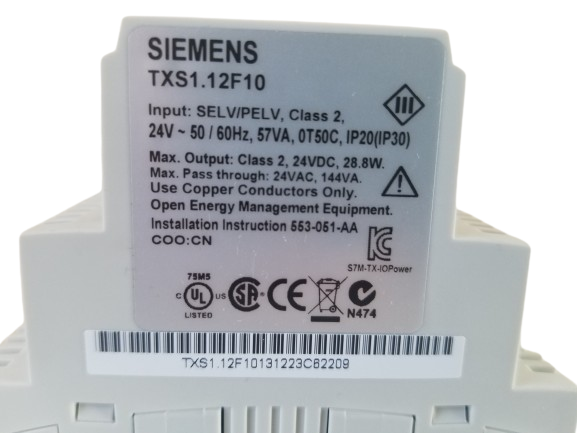

TXS1.12F10: AC 24V input (-10/+20% tolerance); generates/passes through DC 24V, 1.2A for module and field device supply; 10A fuse for field supply; dimensions 96 x 77.4 x 98 mm; net weight 0.309 kg.

Terminals: I/O terminals accept 20-12 AWG solid / 20-14 AWG stranded wire; power supply, bus connection, and BIM use 2- or 3-position plug-in screw terminal blocks.

Operating temperature: 0°C to 50°C (32°F to 122°F); storage -25°C to 70°C (-13°F to 158°F).

Relative humidity: 5 to 93% RH, non-condensing.

Compatibility & Applications

All modules are part of Siemens' TX-I/O product range, designed for use within the Desigo and APOGEE Automation Systems on a shared island bus. This set is well suited to building automation panels needing local digital and universal I/O alongside third-party system integration, such as HVAC control, energy management, and mixed-vendor building automation networks.
