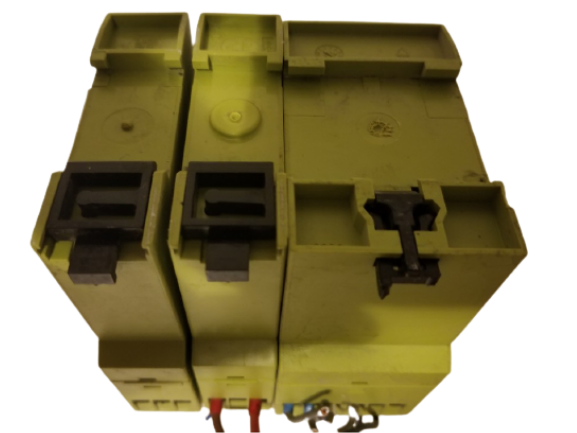

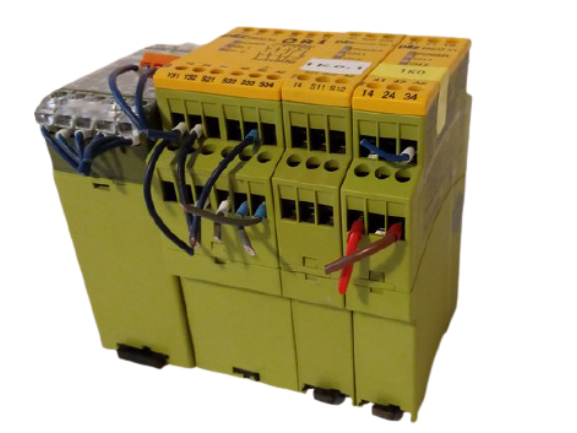

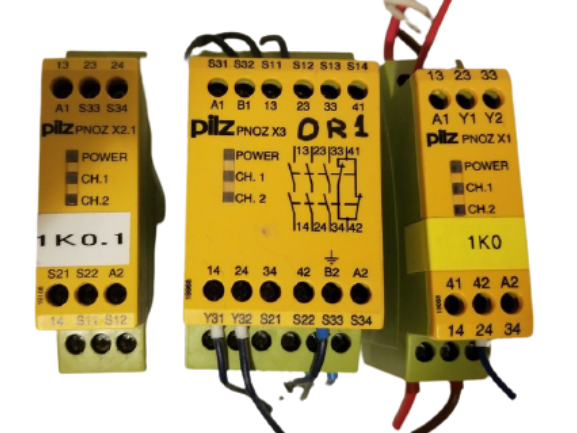

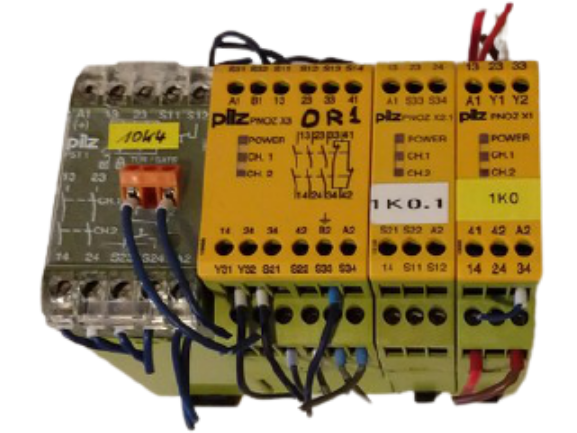

Pilz Safety relays PNOZ X3 ID 774310 and ID 774306 and ID 774300

€110,00
€110,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Pilz Safety relays PNOZ X3 ID 774310 and ID 774306 and ID 774300Pilz Safety relays PNOZ X3 ID 774310 and ID 774306 and ID 774300Pilz Safety relays PNOZ X3 ID 774310 and ID 774306 and ID 774300Pilz Safety relays PNOZ X3 ID 774310 and ID 774306 and ID 774300

1x Pilz PNOZ X3 24VAC 24VDC 3n/o 1n/o 1so ID No: 774310 1025412

Supply Voltage: 24 V AC/DC
Power Consumption: 2.5 W, 5 VA
Frequency: 50-60 Hz
Contact Output: 3 N/O, 1 N/C
Max. Current at DC13 / AC15 : 6 A / 5 A
Terminal Style: fixed
Terminal Type: Screw terminal
Ambient Temperature: -20 … +55 °C
Dimension: 121 X 45 X 87 mm
Weight: 0.375Kg


1x Pilz X2.1 2S Ident. Nr: 774306 24VAC 2VA / 24DV 2W
1x PNOZ X1 24VACDC 3SIO ID No: 774300 4190394

Supply voltage: 24 V
Supply voltage type: AC/DC
Terminal style: fixed
Cat. inst. safe. contacts: 2
A number of instantaneous safety contacts: 3
A number of auxiliary contacts: 1
Stop category: 0
Max. current at DC13 I (6 cycles/min): 5.0 A
Max. current at AC15: 5.0 A
Width dimension: 22.5 mm
Height dimension: 87.0 mm
Depth dimension: 121.0 mm
Gross weight: 199 g
Net weight: 175 g
Ambient temperature: -10 - 55 °C
