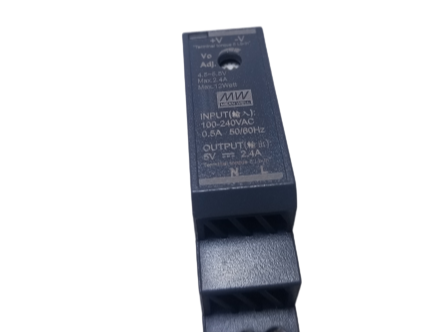

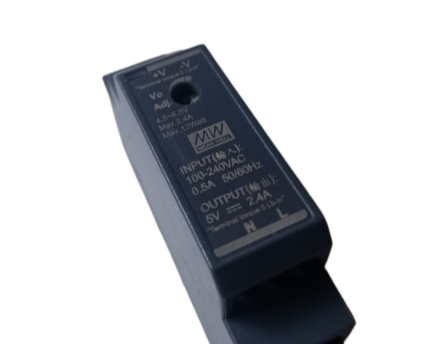

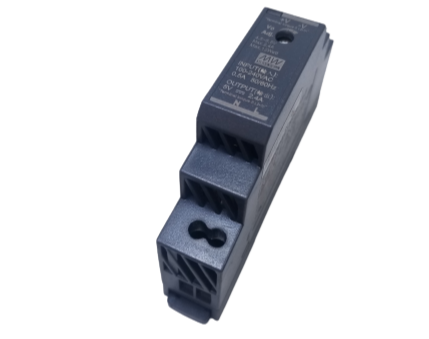

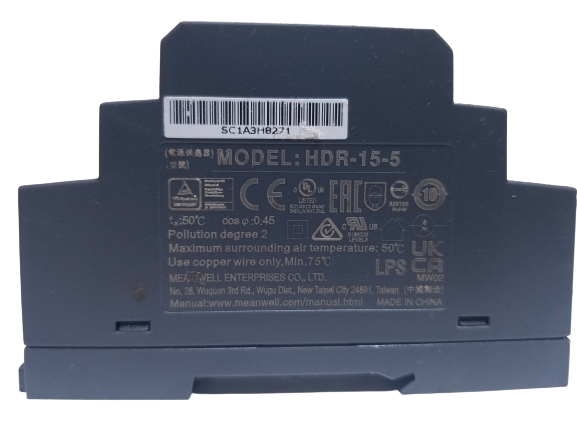

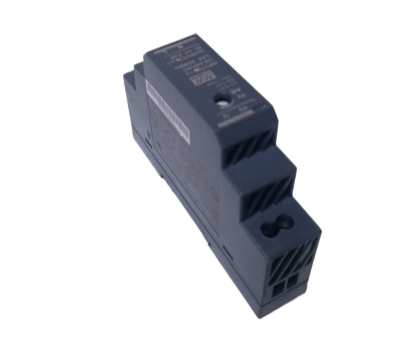

Mean Well HDR-15-5 Switched-Mode DIN Rail Power Supply, 5V DC

Compact switched-mode DIN rail power supply for low-voltage control system applications

Overview

This is a Mean Well HDR-15-5 switched-mode power supply, a compact DIN rail-mounted unit that converts a wide-range AC or DC input into a regulated 5V DC output at up to 2.4A. Designed for control cabinet installation, this power supply provides efficient, low-power DC power for logic circuits, sensors, and other low-voltage electronics in industrial and automation systems.

Key Features

  • Switched-mode DIN rail power supply: Compact, efficient design suited to standard control cabinet mounting.
  • Wide AC/DC input compatibility: Accepts 85-264V AC or 120-370V DC input.
  • Adjustable output range: Nominal 5V DC output, adjustable within a 4.5-5.5V DC range.
  • Low no-load power consumption: Draws less than 0.3W when unloaded, contributing to energy efficiency.
  • Wide operating temperature range: Rated for -30°C to 70°C operation.
  • Compact, lightweight design: Dimensions of 17.5 x 90 x 54 mm and a weight of just 78.5 g.

What's Included

Model Function Qty
HDR-15-5 Switched-mode DIN rail power supply, 5V DC 1

Brand: Mean Well | Mounting: DIN Rail | Output: 5V DC / 2.4A

Technical Specifications

Product type: HDR-15-5, switched-mode power supply.

Kind of power supply: For DIN rail.

Power: 12W.

Output voltage: 5V DC (adjustable 4.5-5.5V DC).

Output current: 2.4A.

Number of outputs: 1.

Electrical connection: Terminal block.

Mounting: DIN rail.

Body dimensions: 17.5 x 90 x 54 mm.

Operating temperature: -30°C to 70°C.

Power consumption (without load): <0.3W.

Supply voltage: 85-264V AC or 120-370V DC.

Weight: 78.5 g.

Compatibility & Applications

This power supply is suited to industrial control cabinets and automation systems requiring a compact, regulated 5V DC power source for low-voltage electronics. Buyers should confirm their available input supply (AC or DC) falls within the rated ranges and that the 2.4A output capacity meets their connected load requirements before installation.
