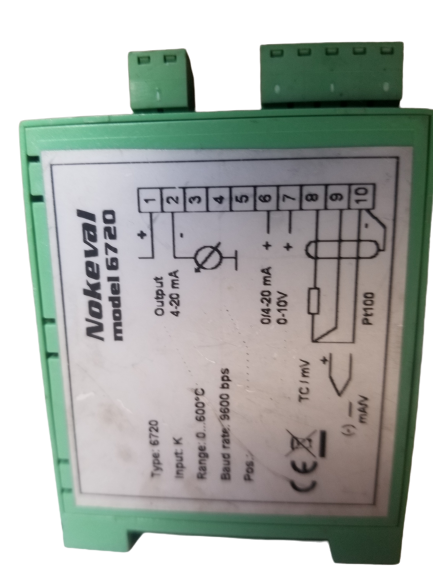

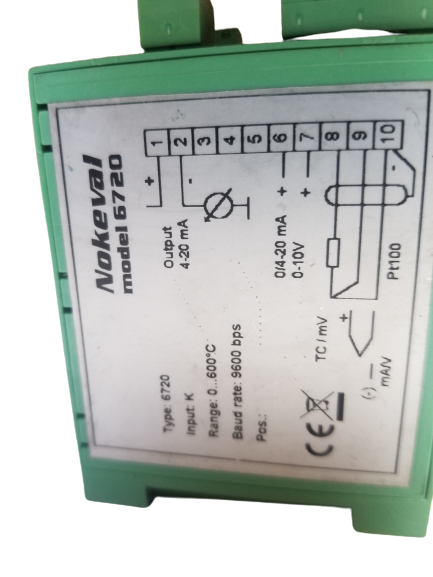

Nokeval 6720 Galvanically Isolated 2-Wire Transmitter

Precision 4-20 mA signal isolator/transmitter with sensor break monitoring — lot of 2

Overview

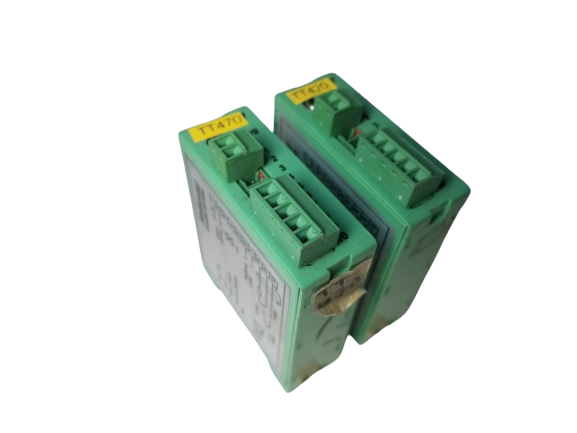

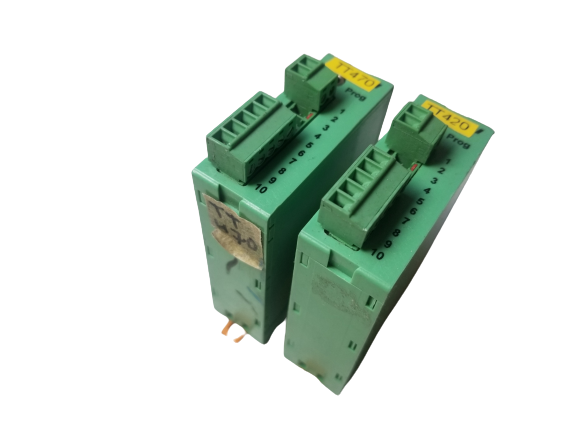

This lot includes two Nokeval 6720 Galvanically Isolated 2-Wire Transmitters, designed to provide accurate, isolated 4-20 mA signal transmission for industrial process instrumentation. With high resolution, sensor break monitoring, and configurable serial communication, these units offer reliable signal isolation and conditioning for a range of measurement applications.

Key Features

  • 2-wire 4-20 mA output: Supports straight and reversed 4-20 mA / 20-4 mA operation.
  • High resolution: Better than 0.03% of span.
  • Output limiter: 24 mA limit for signal protection.
  • Sensor break monitoring: Configurable at 3.5 or 24 mA.
  • Strong galvanic isolation: 2000 VDC for 1 minute.
  • Configurable via serial connection: RS232 at 1200 or 9600 bps using Meku 1 protocol.
  • High-resolution conversion: 16-bit A/D converter and 12-bit output DAC.

What's Included

Model Function Qty
6720 Galvanically isolated 2-wire transmitter 2

Brand: Nokeval | Price: Per lot

Technical Specifications

Output: 2-wire 4-20 mA, straight and reversed 4-20 mA / 20-4 mA.

Resolution: Less than 0.03% of span.

Output limiter: 24 mA.

Sensor break monitoring: 3.5 or 24 mA.

Connection: 2-pole Nokeval POL connection (transmitter).

Serial data: RS232, 1200 or 9600 bps.

Serial protocol: Meku 1.

Power supply range: 10-32 VDC.

Temperature effects: Less than 0.005%/°C.

Galvanic isolation: 2000 VDC / 1 min.

Measuring rate: 4-5 samples/s.

A/D converter: 16 bit.

Output DAC: 12 bit.

Operating temperature: 0°C to 60°C.

Ambient storage: -20°C to +70°C.

Humidity (non-condensing): 0-95% RH.

Weight: 80 g.

Compatibility & Applications

This transmitter is well suited to industrial process measurement applications requiring isolated, precise 4-20 mA signal transmission with sensor break monitoring. Buyers should confirm the power supply range and loop load requirements match their instrumentation before installation.
