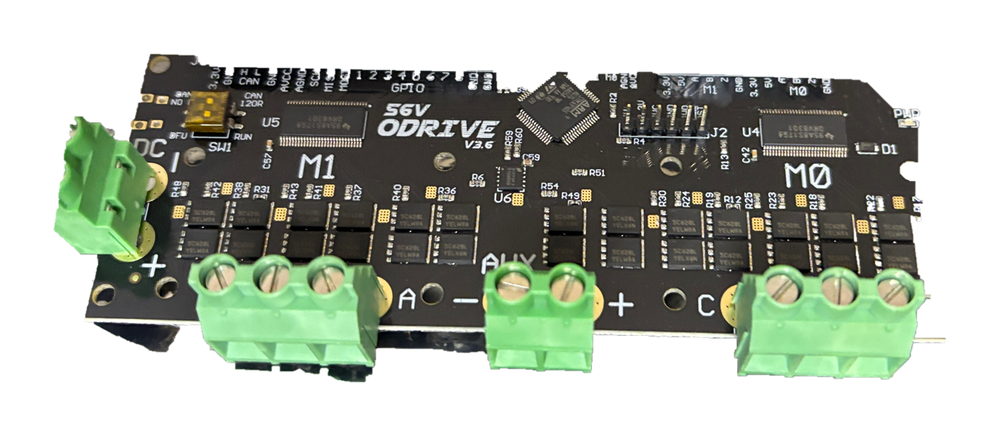

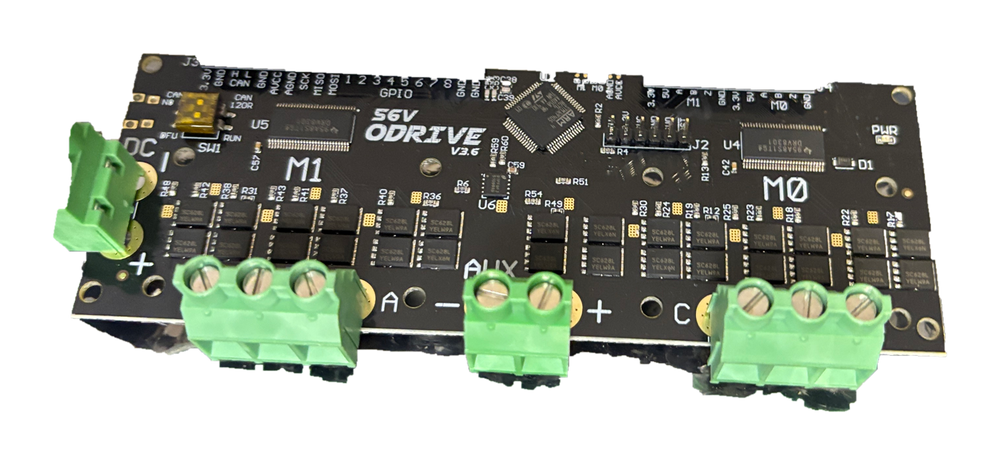

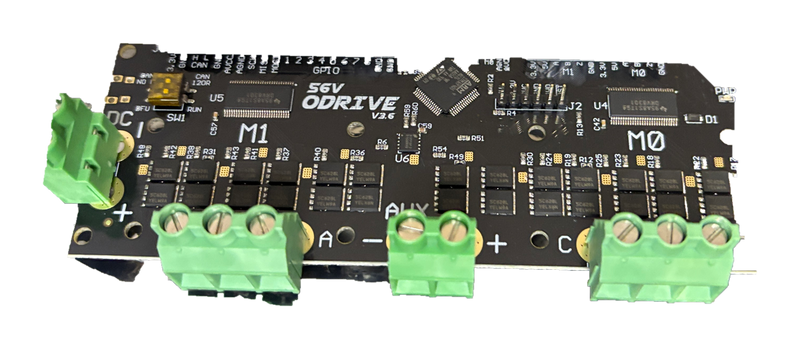

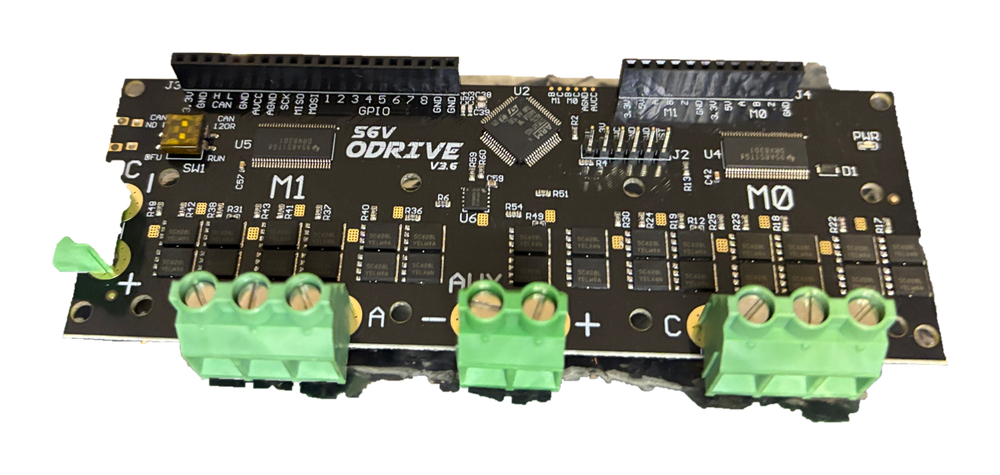

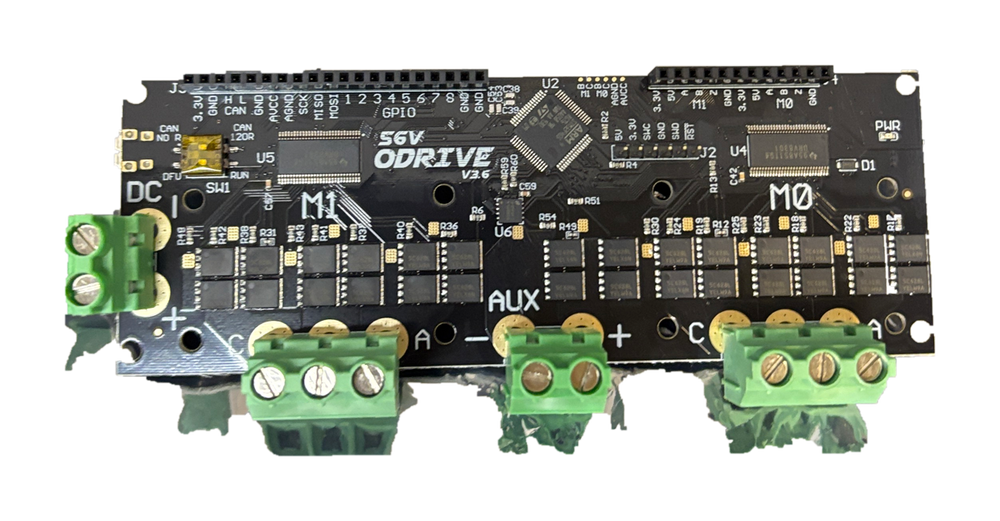

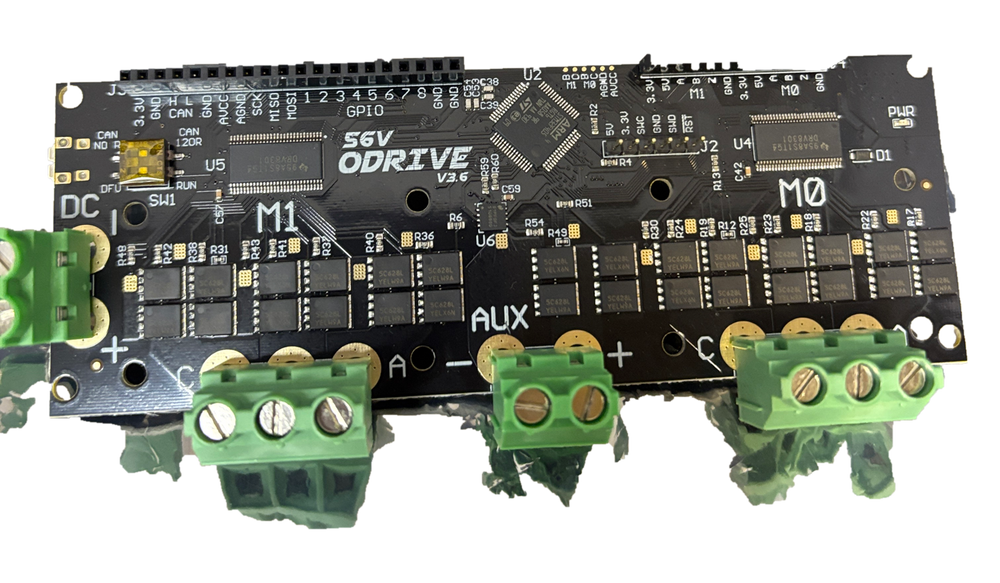

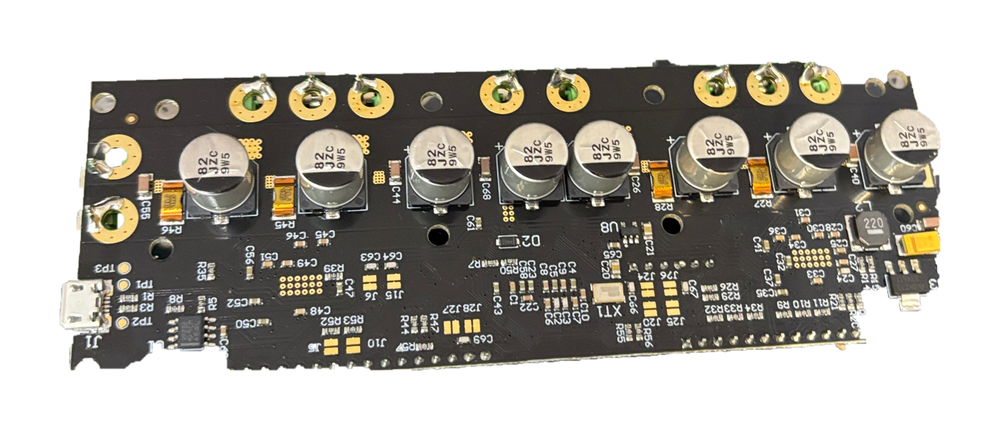

ODrive v3.6 56V Dual BLDC Motor Controller Board

Field-oriented control for two brushless motors – robotics, CNC, motion

Overview

High-performance field-oriented control (FOC) board that drives two brushless motors with encoder feedback, for robotics, CNC and motion projects.

Key Features

  • Dual axis: Drives 2 brushless motors independently (M0, M1).
  • Control modes: Position, velocity and current (torque) control.
  • Auto-tuning: Automatic motor parameter identification (resistance, inductance).
  • Feedback: Incremental encoders with index; Hall-sensor motors supported.
  • Interfaces: USB, UART, CAN, Step/Direction, PWM input, GPIO.
  • Braking: AUX output for a brake resistor.
  • Firmware: Upgradeable over USB.

What's Included

Qty Item
1 ODrive v3.6 56V board with screw terminals fitted (DC, M0, M1, AUX)

Technical Specifications

Specification Value
Input voltage 12–56 V DC
Peak current 120 A per motor
Continuous current Depends on cooling (about 40 A per channel with heatsink in still air)
Controller STM32F405 with DRV8301 gate drivers

No heatsinks, brake resistor or USB cable are included.
