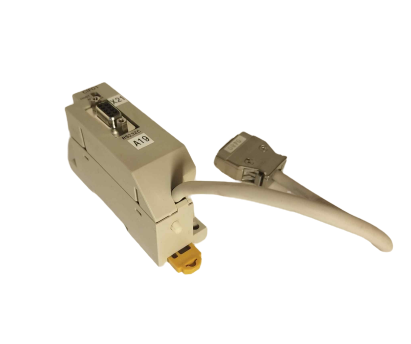

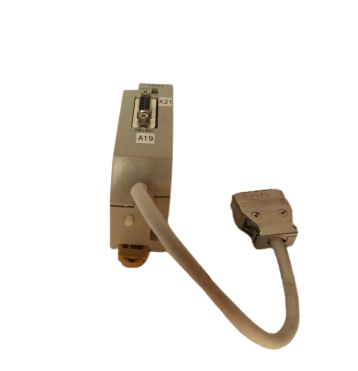

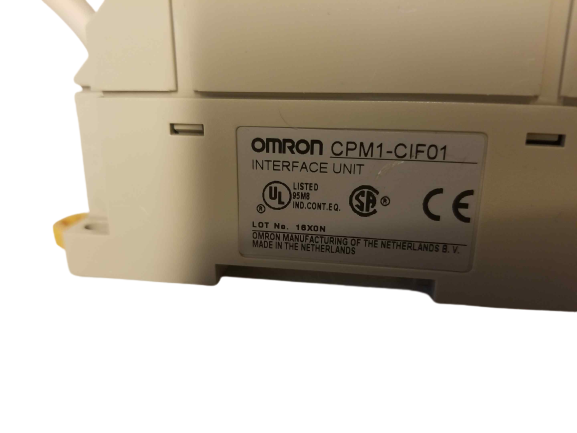

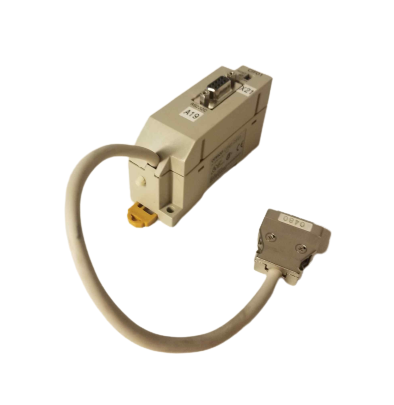

Omron CPM1-CIF01 Serial Communications Adapter (RS-232C)

CMOS-to-RS-232C interface adapter for CPM1/CPM1A programmable controllers

Overview

The Omron CPM1-CIF01 is a serial communications adapter that provides level conversion between CMOS logic on the CPU side and RS-232C on the peripheral device side, with the RS-232C side electrically insulated by a DC/DC converter and photocoupler. It's designed for use with the CPM1A micro programmable controller, enabling connection to a PC for programming via Omron's Syswin software or communication with other RS-232C peripheral devices. The adapter draws its power directly from the CPU, requiring no external power supply, and supports data transmission speeds up to 38.4 Kbits/s.

Key Features

  • CMOS-to-RS-232C conversion: Enables communication between the CPU and RS-232C peripheral devices with electrical isolation via DC/DC converter and photocoupler.
  • High transmission speed: Supports data rates up to 38.4 Kbits/s.
  • CPU-powered operation: Draws power directly from the CPU, no external power supply required.
  • Compact form factor: External dimensions of 90mm (L) x 30mm (W) x 56-85mm (D), suited for space-constrained control panels.
  • Flexible mounting options: Supports both DIN rail and PCB mounting.
  • Industrial durability: Rated for vibration resistance from 10-57Hz and shock resistance of 147 m/s² in X, Y, Z directions.
  • Wide operating temperature range: Operates reliably from 0°C to 55°C.

What's Included

Item Function Qty
Omron CPM1-CIF01 Adapter RS-232C serial communications adapter 1

Brand: Omron | Model: CPM1-CIF01 | For Use With: CPM1A Micro Programmable Controller

Technical Specifications

Function: RS-232C serial communications adapter, CMOS level conversion.

Transmission speed: Up to 38.4 Kbits/s.

Power: CPU-powered, no external supply required; max. power consumption 0.3A.

Dimensions: 90mm (L) x 30mm (W) x 56-85mm (D).

Mounting: DIN rail or PCB.

Vibration resistance: 10-57Hz.

Shock resistance: 147 m/s² in X, Y, Z directions.

Operating temperature: 0°C to 55°C.

Compatibility & Applications

This adapter is designed for use with Omron's CPM1A micro programmable controller series, enabling PC-based programming via Syswin software or general RS-232C peripheral communication. It's a practical maintenance or spare part for facilities maintaining CPM1/CPM1A-based machine control systems requiring serial programming or communication capability.
