Omron E3Z-D81 Compact Photoelectric Sensor with Built-in Amplifier 12-

  • Omron E3Z-D81 Compact Photoelectric Sensor With Built-In Amplifier 12-24 VDC
  • Omron E3Z-D81 Compact Photoelectric Sensor with Built-in Amplifier 12-24 VDC
  • Omron E3Z-D81 Compact Photoelectric Sensor With Built-In Amplifier 12-24 VDC
1 4

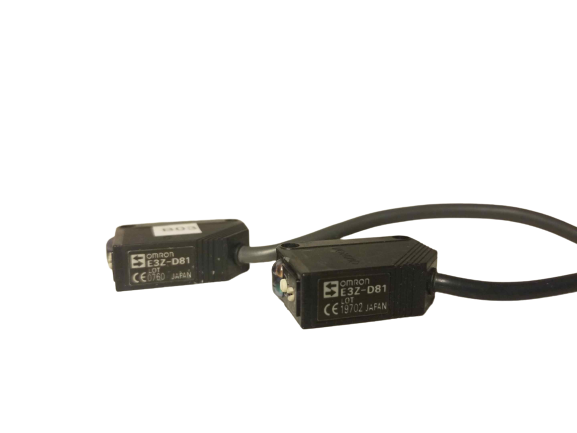

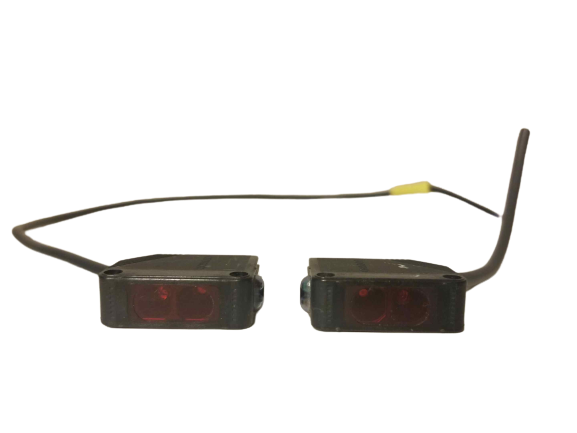

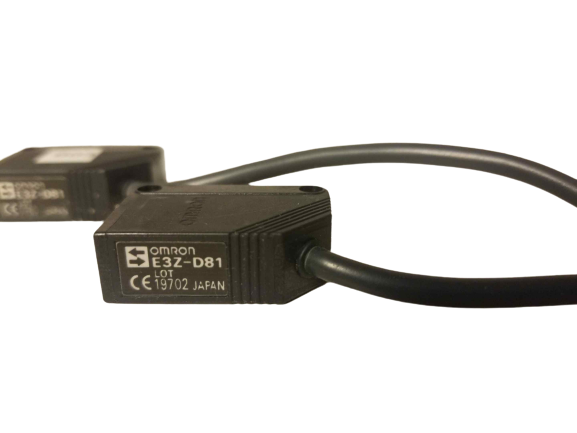

Omron E3Z-D81 Compact Photoelectric Sensor with Built-in Amplifier 12-24 VDC

€55,00
€55,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Omron E3Z-D81 Compact Photoelectric Sensor With Built-In Amplifier 12-24 VDCOmron E3Z-D81 Compact Photoelectric Sensor with Built-in Amplifier 12-24 VDCOmron E3Z-D81 Compact Photoelectric Sensor With Built-In Amplifier 12-24 VDC


1x Omron E3Z-D81 Compact Photoelectric Sensor with Built-in Amplifier 12-24 VDC

Shape Square type
Sensing method Diffuse-reflective
Sensing distance White paper 100 x 100 mm: 100 mm
Differential distance 20% max. of sensing distance
Light source Infrared LED (870 nm)
Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max.
Current consumption 30 mA max.
Control output PNP open collector
26.4 VDC max.
100 mA max.
Residual voltage: 1 V max. (Load current Less than 10 mA)
Residual voltage: 2 V max. (Load current 10 to 100 mA)
Operation mode Light-ON/Dark-ON selectable
Protective circuit Output short-circuit protection, Output reverse polarity protection, Power supply reverse polarity protection
Response time Operate or reset: 1 ms max.
Sensitivity setting Single-turn adjustment
Ambient illuminance Incandescent lamp: 3,000 lx max.
Sunlight: 10,000 lx max.
Ambient temperature range (Operating) -25 to 55 ℃ (with no icing)
Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation)
Ambient humidity range (Operating) 35 to 85 % (with no condensation)
Ambient humidity range (Strage) 35 to 95 % (with no condensation)
Insulation resistance 20 MΩ min. (500 VDC megger)
Dielectric strength 1000 VAC 50/60 Hz 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions
Degree of protection IEC: IP67
Connection method Pre-wired models (Cable length 2 m)
Indicator Operation indicator (orange), Stability indicator (green)
Weight Package: Approx. 65 g
Accessories Instruction manual
Material Case: Polybutylene terephthalate (PBT)
Lens: Denatured Polyarylate
