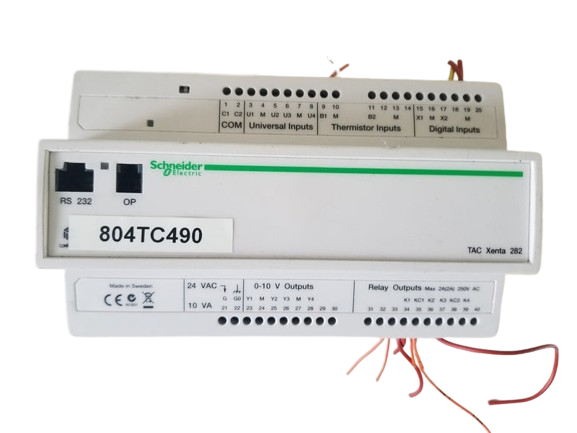

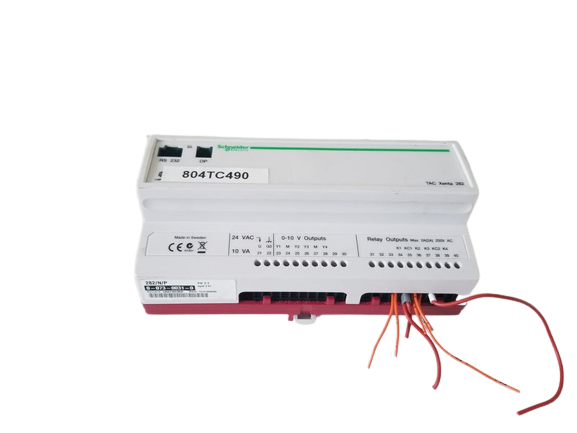

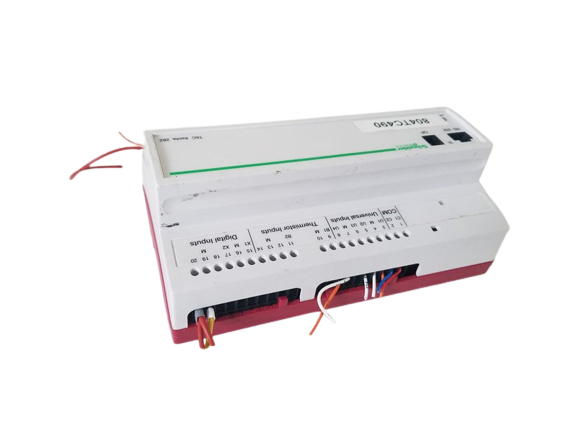

Schneider TAC Xenta 282 Controller

DIN rail building automation controller with digital, universal, and analog I/O for HVAC control

Overview

This is a Schneider TAC Xenta 282 controller, part of the TAC Xenta 280 series, designed for cabinet mounting on a TS 35mm DIN rail (EN 50022). This controller provides a mix of digital, universal, and analog I/O, along with communication interfaces for TAC Menta and TAC Xenta OP, making it suited to HVAC and building automation control applications.

Key Features

  • DIN rail mounting: Cabinet mounted on a TS 35mm Norm rail per EN 50022.
  • Universal inputs: Configurable as digital inputs, 0-10V DC voltage inputs, or TAC thermistor sensor inputs (1.8 kΩ), with a -50°C to 150°C measuring range.
  • Digital outputs: Rated for switching up to 230V AC.
  • Analog outputs: Provides 0-10V DC output for modulating control of connected equipment.
  • Flexible AC/DC power supply: Accepts 24V AC or 19-40V DC.
  • Dual communication interfaces: Supports TAC Menta via modem (9600 bps, RS-232, RJ-45) and TAC Xenta OP via TP/FT-10 modular jack.
  • High timekeeping accuracy: Rated to ±12 minutes per year.
  • Compact, lightweight design: Dimensions of 177 x 104 x 68 mm, weighing 0.32 kg.

What's Included

Model Function Qty
Xenta 282 Building automation controller 1

Brand: Schneider Electric | Series: TAC Xenta 280 | IP20 Rated

Technical Specifications

Product type: Xenta 282, building automation controller.

Mounting: Cabinet mounted, TS 35mm Norm rail (EN 50022).

Supply voltage: 24 V AC or 19-40 V DC.

Digital input: Voltage across open contact 33 V DC; current through closed contact 4 mA.

Universal input: Voltage across open contact 26 V DC; current through closed contact 4 mA; voltage inputs 0-10V DC; TAC thermistor sensor 1.8 kΩ; measuring range -50°C to 150°C.

Digital outputs: Up to 230V AC.

Analog outputs: 0-10V DC.

Dimensions (L x W x H): 177 mm x 104 mm x 68 mm.

Accuracy: ±12 minutes per year.

Communication: TAC Menta via modem (9600 bps, RS-232, RJ-45); TAC Xenta OP via TP/FT-10, modular jack.

Protection class: IP20.

Frequency: 50/60 Hz.

Operating temperature: 0°C to 50°C.

Weight: 0.32 kg.

Compatibility & Applications

This controller is designed for HVAC and building automation applications requiring a mix of digital, universal, and analog I/O within a TAC Xenta network, communicating with TAC Menta or TAC Xenta OP interfaces. Buyers should confirm compatibility with their existing TAC Xenta network and verify the power supply (AC or DC) matches their installation before use.
