Siemens 3RK1402-3CE01-0AA2E11 AS-i SlimLine module

  • Siemens 3RK1402-3CE01-0AA2E11
  • Siemens 3RK1402-3CE01-0AA2E11
  • Siemens 3RK1402-3CE01-0AA2E11
  • Siemens 3RK1402-3CE01-0AA2E11
1 5

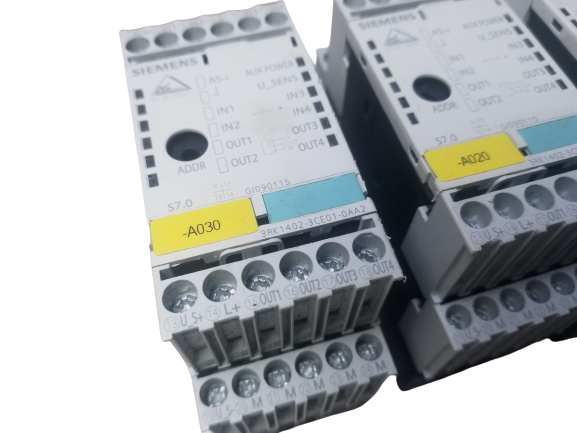

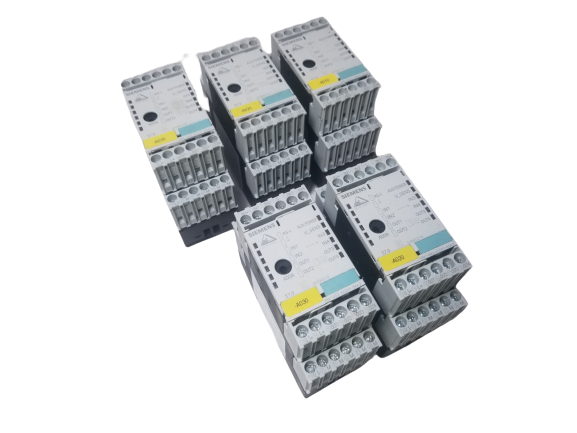

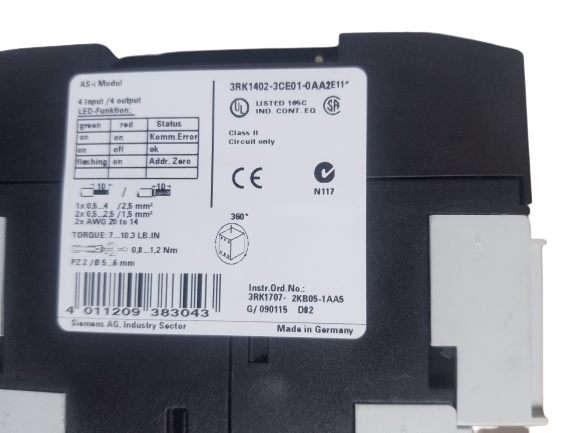

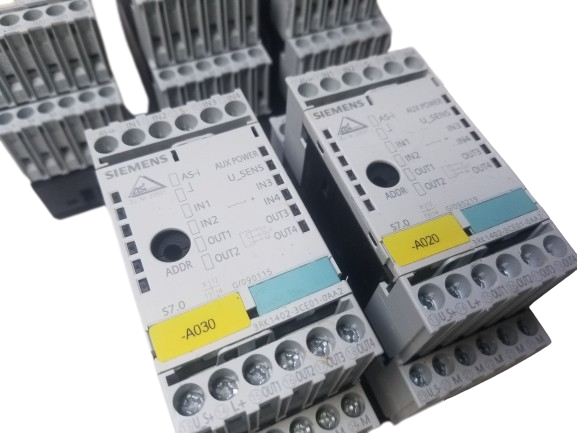

Siemens 3RK1402-3CE01-0AA2E11 AS-i SlimLine module

€100,00
€100,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Siemens 3RK1402-3CE01-0AA2E11Siemens 3RK1402-3CE01-0AA2E11Siemens 3RK1402-3CE01-0AA2E11Siemens 3RK1402-3CE01-0AA2E11

1x Siemens 3RK1402-3CE01-0AA2E11 AS-i SlimLine module
Type 4 inputs / 4 outputs
AS interface total current input max mA 40
operating voltage according to AS-Interface spezification V 26.5 ... 31.6
Addressing front addressing socket
type of electrical connection of the inputs and outputs screw-type terminals
Sensor supply
type of voltage supply for power supply via AUX POWER
input voltage V 20 ... 30
ampacity of the sensor supply for all inputs
● at ambient temperature 40 °C mA 200
Inputs
number of digital inputs 4
type of connection technology 2- and 3-wire technology
Input circuit PNP transistor
type of voltage of the input voltages DC
Inputs switching level High min V 10
input current at digital input
● for signal <1> minimum mA 5
● with signal <0> maximum mA 1.5
Outputs
number of digital outputs 4
type of voltage of output voltages DC
output voltage at DC at 24 V V 22 ... 24
ambient temperature
● during operation °C -25 ... +70
● during storage °C -40 ... +85
protection class IP IP20
Dimensions 45mmx 106mmx 86mm

Price here is per unit
