Siemens 6ES7153-4AA01-0XB0 ET200M IM153-4 PN IO PROFINET Interface Module 2-Port

Siemens 6ES7153-4AA01-0XB0 ET200M IM153-4 PN IO PROFINET Interface Module, 2-Port

PROFINET IO interface module for SIMATIC ET 200M distributed I/O systems

Overview

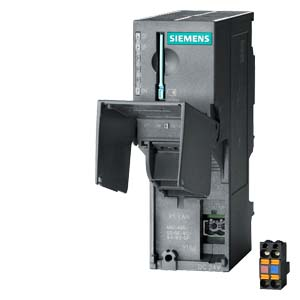

This is a Siemens SIMATIC S7 IM153-4 PN, 6ES7153-4AA01-0XB0, a PROFINET IO interface module for the ET 200M distributed I/O system. It acts as the head module for an ET 200M I/O station, connecting up to 12 standard S7-300 I/O modules to a PROFINET network, and giving a PLC centralized real-time access to all the field data collected across the station.

Key Features

  • Integrated 2-port switch: A single Ethernet interface with a built-in 2-port switch (2 x RJ45 connectors) allows straightforward line-topology wiring between stations without external switches.
  • Real-Time and Isochronous Real-Time communication: Supports both RT and IRT (Class 1 & Class 2) PROFINET communication, suited to applications requiring precise, time-synchronized data exchange.
  • Extensive I/O expansion: Connects up to 12 S7-300 I/O modules within a single ET 200M station, with a terminating module supported at the end of the row.
  • Maintenance-friendly module replacement: Modules can be exchanged without a Programming Device (PG), and the interface module operates without requiring a Micro Memory Card (MMC).
  • Simplified I/O expansion: New I/O modules can be added to the station with minimal reconfiguration effort.

What's Included

Model Function Qty
IM153-4 PN (6ES7153-4AA01-0XB0) PROFINET IO interface module for ET 200M 1

Technical Specifications

Interfaces: 1 x Ethernet with integrated 2-port switch; 2 x RJ45 bus connectors.

I/O compatibility: Up to 12 S7-300 I/O modules per station; terminating module supported.

Communication: PROFINET Real-Time (RT) and Isochronous Real-Time (IRT), Class 1 & Class 2.

Power supply: 24V DC.

Mounting: DIN rail mountable, standard ET 200M module size.

Operating temperature: -25°C to +60°C.

Compatibility & Applications

The IM153-4 PN integrates with SIMATIC S7 PLCs over PROFINET, forming the head module of an ET 200M distributed I/O station built from standard S7-300 I/O modules. It's well suited to scalable industrial automation systems needing real-time, deterministic distributed I/O — including machine control, process automation, and applications requiring precise time-synchronized data exchange via IRT.
