Siemens Simatic S7 Power Supply 6ES7 307-1EA00-0AA0

€80,00
€80,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Siemens Simatic S7 Power Supply 6ES7 307-1EA00-0AA0Siemens Simatic S7 Power Supply 6ES7 307-1EA00-0AA0Siemens Simatic S7 Power Supply 6ES7 307-1EA00-0AA0Siemens Simatic S7 Power Supply 6ES7 307-1EA00-0AA0Siemens Simatic S7 Power Supply 6ES7 307-1EA00-0AA0Siemens Simatic S7 Power Supply 6ES7 307-1EA00-0AA0Siemens Simatic S7 Power Supply 6ES7 307-1EA00-0AA0

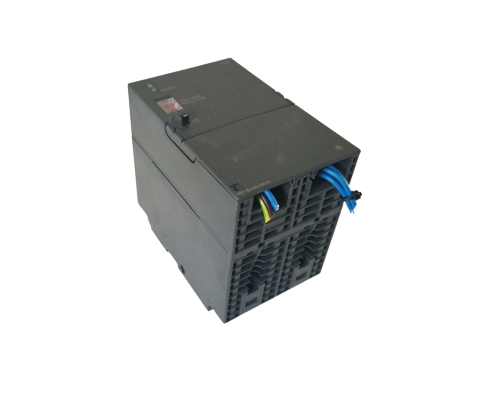

Siemens SIMATIC S7-300 Power Supply PS307, 24V DC / 5A — 6ES7 307-1EA00-0AA0

Regulated single-phase AC-to-DC power supply module for SIMATIC S7-300 automation systems

Overview

This is a Siemens SIMATIC S7-300 PS307 power supply module, 6ES7 307-1EA00-0AA0, a regulated power supply that converts a single-phase 120/230V AC input into a stable 24V DC output at up to 5A. Built with reliable isolation to EN 60950 and electronic, non-latching short-circuit protection, it's designed to power S7-300 automation systems and can also be used as a general load power supply for field devices.

Key Features

  • Regulated 24V DC output: 24V ±5% output, stable at no load, delivering up to 5A continuous current.
  • Single-phase AC input: Accepts 120/230V AC, 50/60 Hz mains supply.
  • Short-circuit and open-circuit protection: Electronic, non-latching protection triggers between 1.1 and 1.3x rated current.
  • Reliable safety isolation: Isolated to EN 60950 for safe integration into control panels.
  • Fast ramp-up: Maximum 2.5s ramp-up time to full output voltage.
  • Dual-use capability: Can power the S7-300 system itself or serve as a general 24V DC load power supply.

What's Included

Model Function Qty
PS 307 (6ES7 307-1EA00-0AA0) S7-300 power supply, 24V DC / 5A 1

Technical Specifications

Input voltage: 120/230 V AC (rated); frequency 50/60 Hz (permitted range 47-63 Hz).

Rated input current: 2 A at 120V; 1 A at 230V. Inrush current 45 A (at 25°C).

Output voltage: 24 V DC (permitted range ±5%, stable at no load).

Output current: 5 A rated (cannot be connected in parallel).

Ramp-up time: Max. 2.5 s.

Short-circuit protection: Electronic, non-latching, 1.1 to 1.3x rated current.

Residual ripple: Max. 150 mVss.

Isolation: Reliable isolation per EN 60950.

Dimensions / weight: 8 x 12.2 x 12.4 cm; 300 g.

Compatibility & Applications

Part of Siemens' SIMATIC S7-300 module family, this power supply is well suited to industrial automation control panels needing a reliable 24V DC source for PLC systems or general field device loads, across manufacturing, process control, and factory automation applications.
