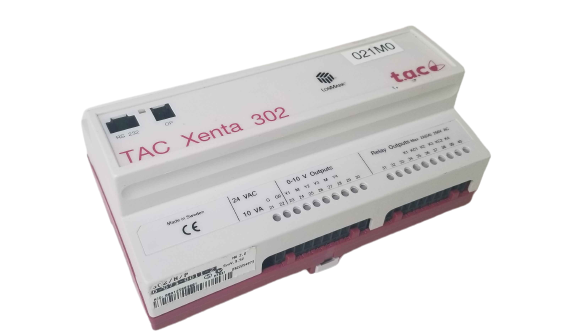

TAC Xenta 302 Programmable Controller — 0-073-0011-2, HW 2.2, SysV 3.74 — Lot of 3

Freely programmable LonWorks-based controller for HVAC building automation

Overview

This lot is 3 units of the TAC (Schneider Electric) Xenta 302, Part No. 0-073-0011-2, HW 2.2 with System version 3.74 — a freely programmable controller with integral LonWorks communication from the TAC Xenta 300 series. Designed for smaller and medium-sized HVAC installations, it provides complete heating and ventilation control functionality including control loops, curves, timer controls, and alarm management, with capacity extendable using up to two remote expansion modules on the LonWorks network.

Key Features

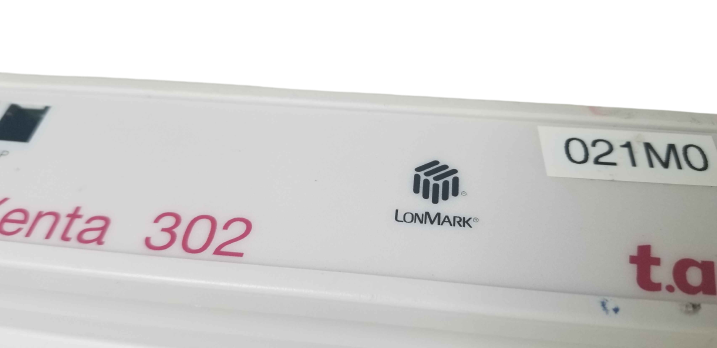

  • LonMark-certified LonWorks communication: Integrates directly into LonWorks-based building automation networks and Schneider Electric's TAC Vista building management system.
  • Complete HVAC functionality: Built-in control loops, curves, timer controls, and alarm management for heating and ventilation applications.
  • Universal inputs: Accepts thermistor and digital input signals for flexible sensor connectivity.

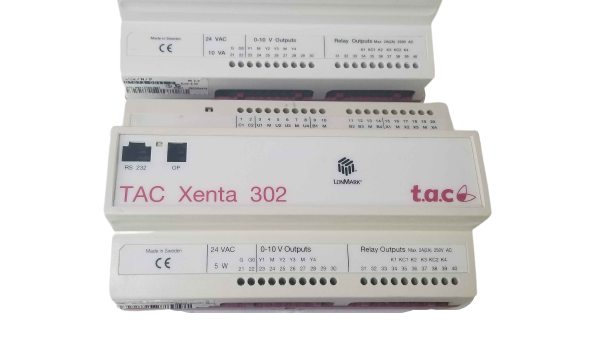

  • 0-10V analog outputs and relay outputs: Relay outputs rated up to 2A at 250V AC for direct switching of connected equipment.
  • Expandable I/O capacity: Supports up to two expansion modules connected over the LonWorks network, which can be located separately from the main controller.
  • Class 2 rated I/O: All inputs and outputs except the relay outputs are Class 2 rated for safe, low-energy circuit operation.

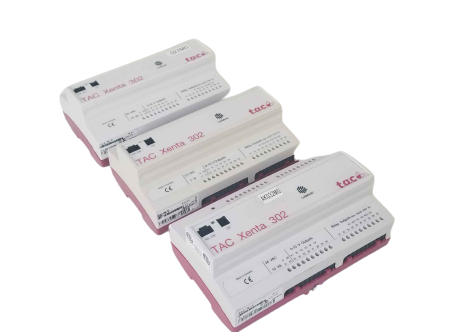

What's Included (Lot of 3)

Model Function Qty
Xenta 302 (0-073-0011-2) Programmable HVAC controller, LonWorks 3

HW 2.2 | System version 3.74 | Made in Sweden

Technical Specifications

Power supply: 24V AC, 10 VA.

Inputs: Universal (thermistor / digital), Class 2 rated.

Outputs: 0-10V analog outputs; relay outputs max. 2A at 250V AC.

Communication: LonMark-certified LonWorks.

Weight: Approx. 300-510g (variant dependent).

Compatibility & Applications

Compatible with Schneider Electric's TAC Vista building management system and general LonWorks-based automation networks, the Xenta 302 is well suited to HVAC control in commercial buildings, energy management applications, and general building automation systems requiring flexible, freely programmable control logic.
