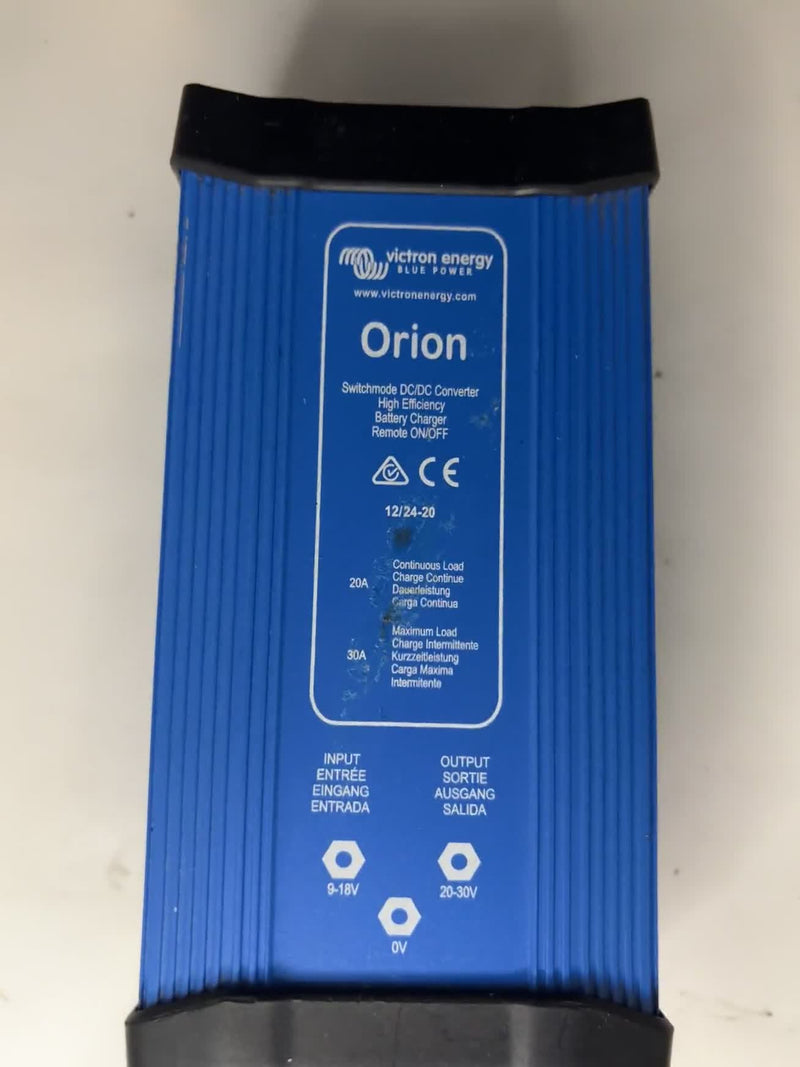

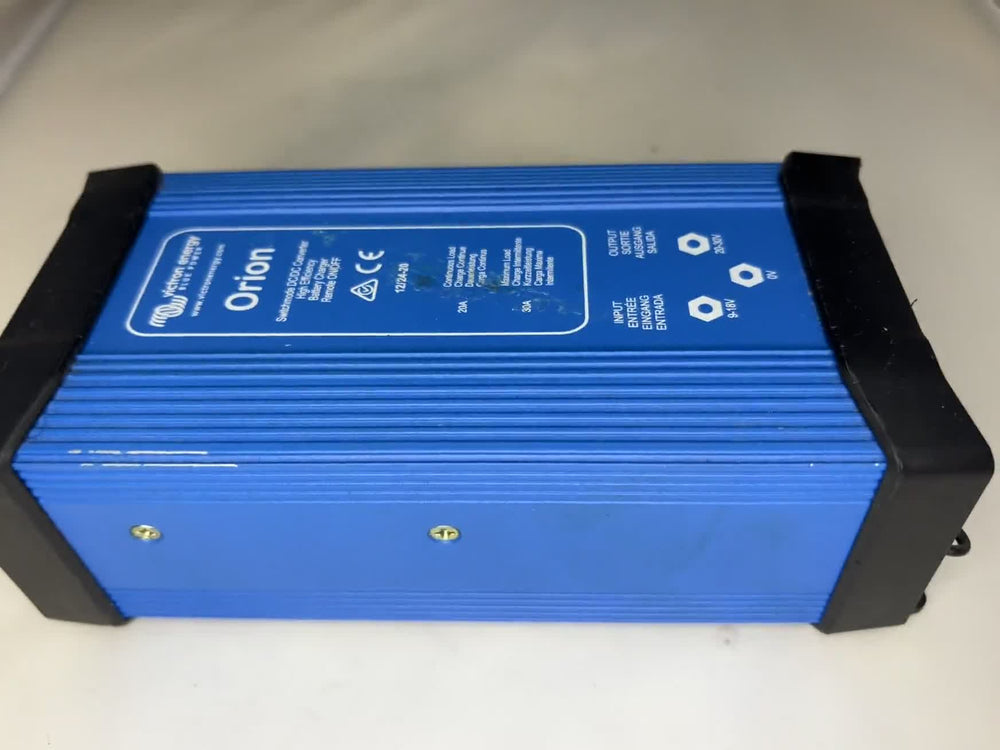

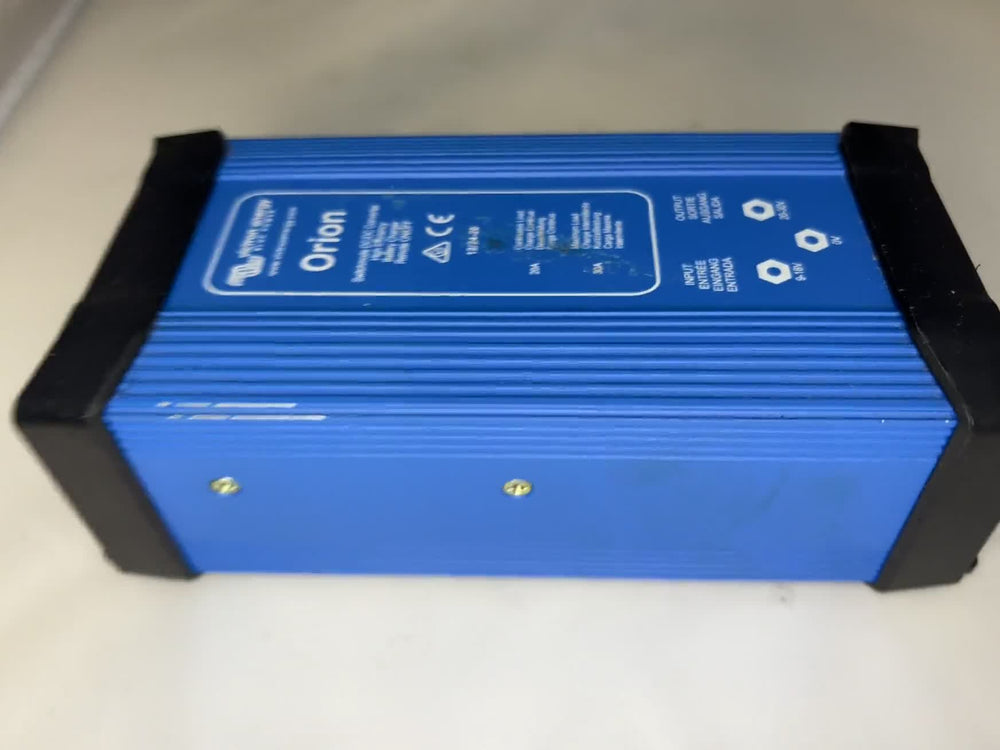

Victron Energy Orion 12/24-20 DC-DC Converter — 12V to 24V, 20A, IP20

Non-isolated switchmode DC/DC converter and 24V battery charger

Overview

This is a Victron Energy Orion 12/24-20, a non-isolated switchmode DC/DC converter that steps a 12V input up to a stable 24V output at up to 20A continuous. Housed in a finned aluminium enclosure that doubles as a heat sink and paired with a temperature-controlled cooling fan, it's built to hold a steady output under sustained load in vehicle, marine, off-grid, and industrial 24V systems. Beyond straightforward voltage conversion, its adjustable output also lets it function as a battery charger, for example topping up a 12V accessory or starter battery inside an otherwise 24V system.

Key Features

  • High-efficiency conversion: Delivers approximately 93% conversion efficiency using synchronous rectification, minimizing heat loss and wasted power.
  • Remote ON/OFF control: A dedicated remote on/off terminal removes the need for a high-current switch in the input wiring, and can be operated by a low-power switch or an engine run/stop signal.
  • Adjustable output voltage: Output can be adjusted from 20V to 30V, allowing the unit to be tuned for straight conversion or battery-charging duty.
  • Parallel-capable for higher current: Multiple units can be connected in parallel (up to five) to scale up total output current for larger power demands.

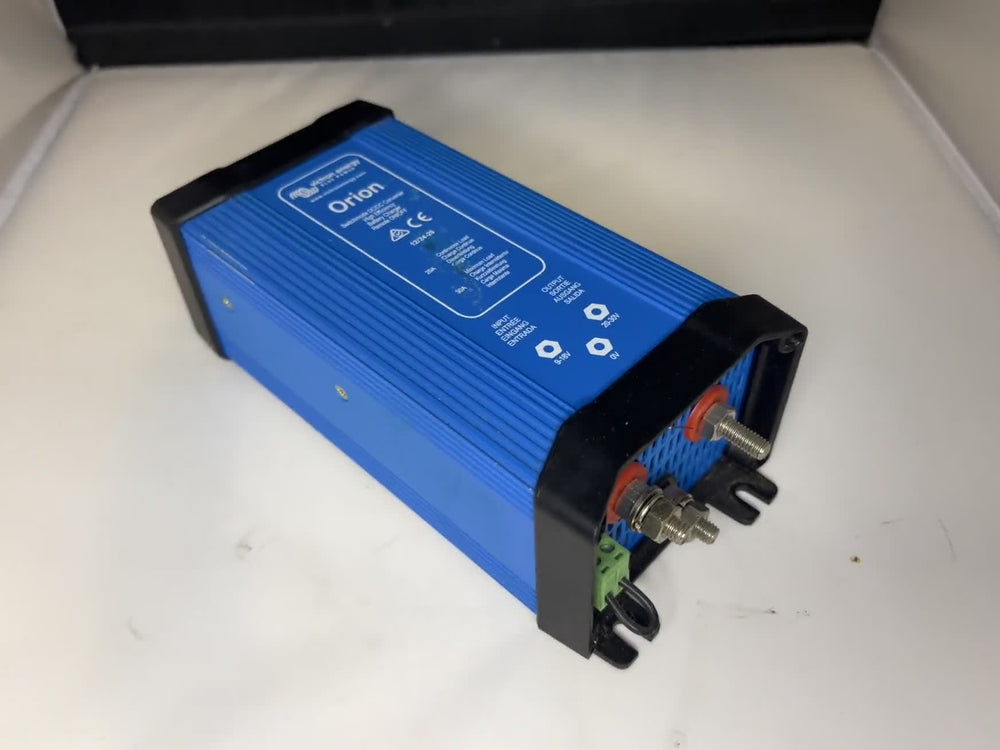

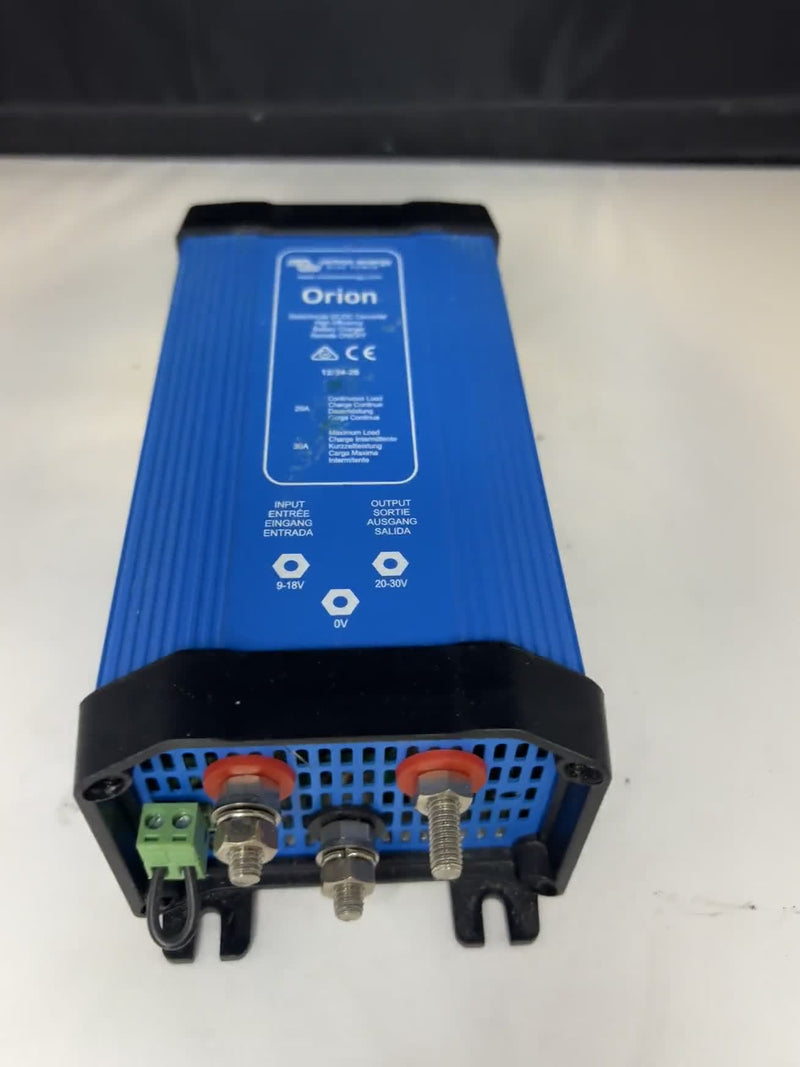

  • Robust high-current terminals: Heavy-duty M6 bolt terminals for input/output wiring, plus a pluggable terminal block for the remote on/off connection.

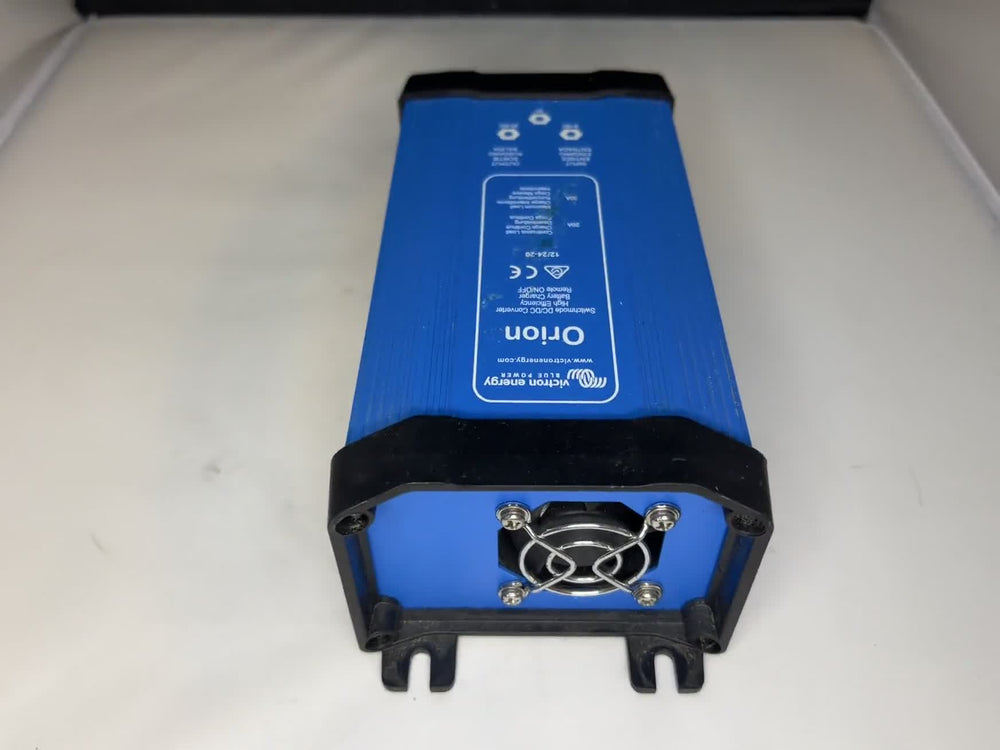

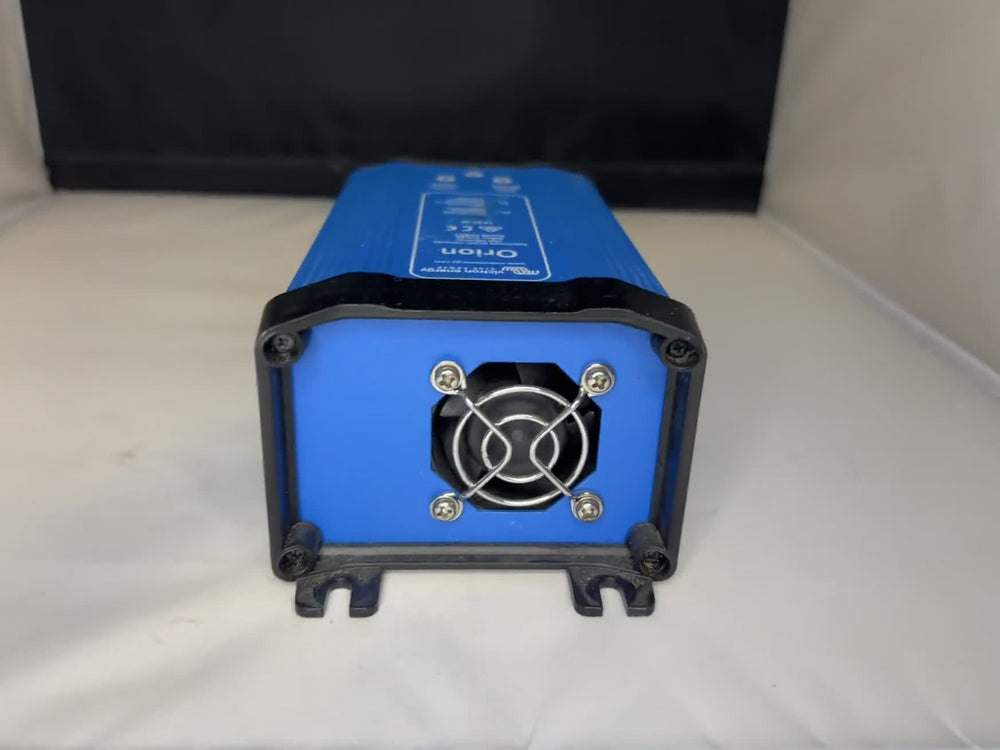

  • Active thermal management: A temperature-controlled cooling fan and protective grille maintain performance under continuous full-rated load.

What's Included

Model Function Qty
Orion 12/24-20 Non-isolated DC-DC converter / battery charger 1

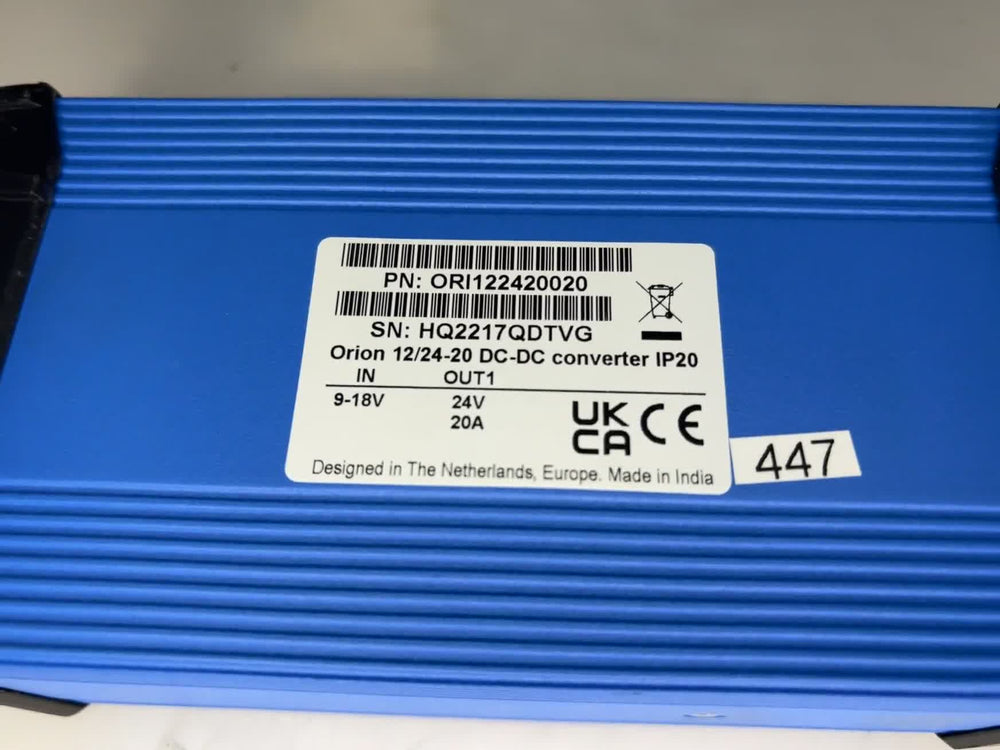

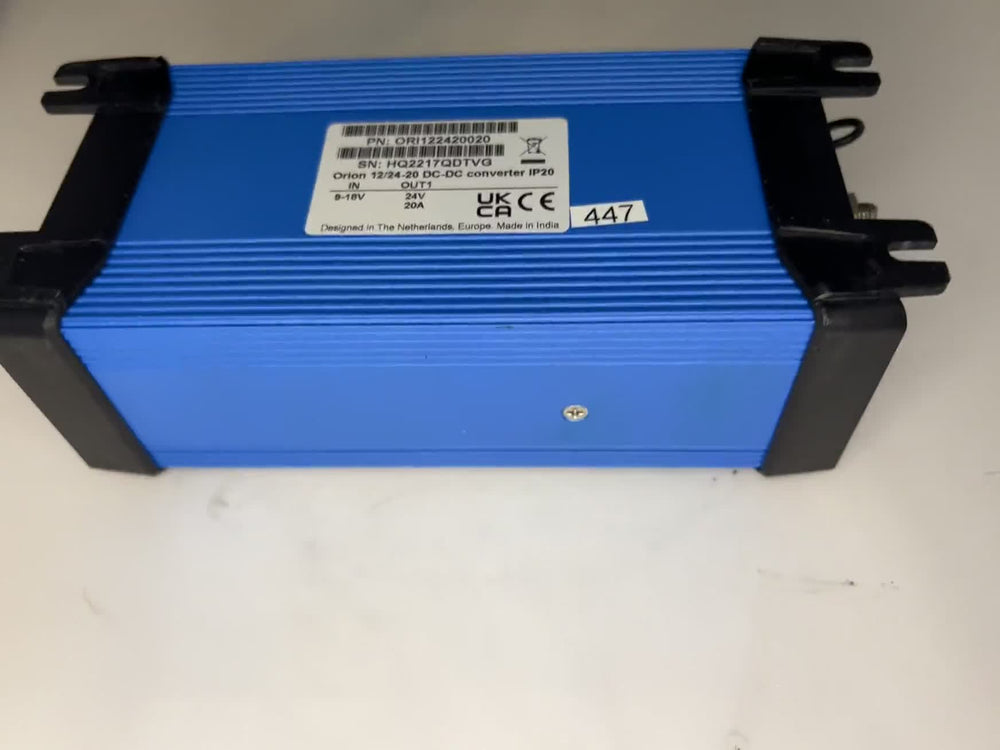

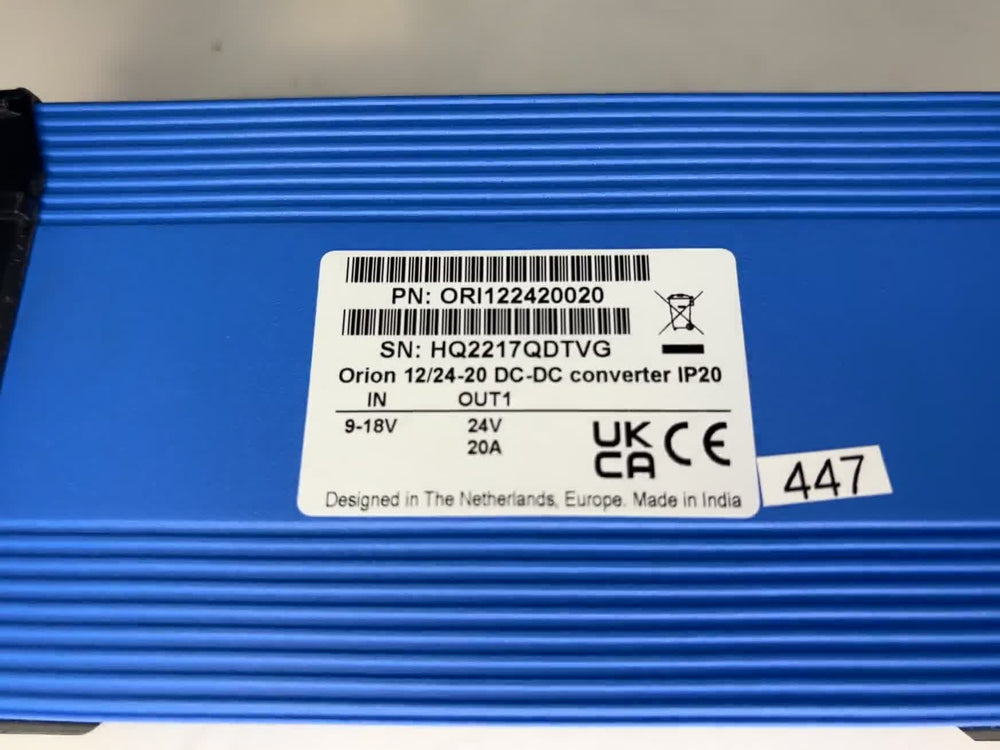

PN: ORI122420020 | SN: HQ2217QDTVG | Designed in the Netherlands, Made in India

Technical Specifications

Input voltage range: 9–18 VDC.

Output voltage: 24V nominal, adjustable 20–30V.

Continuous / maximum output current: 20A continuous, 30A maximum.

Efficiency: Approx. 93%.

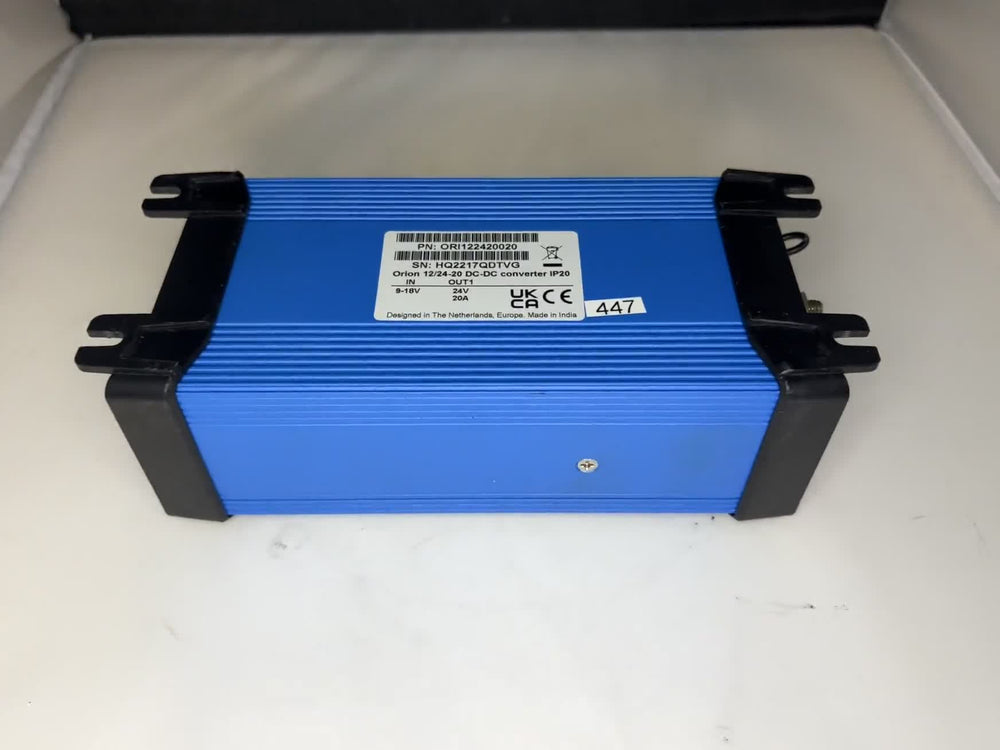

Enclosure: IP20, finned aluminium housing with integrated mounting slots for vertical or horizontal installation.

Compliance: UKCA and CE marked.

Compatibility & Applications

The Orion 12/24-20 is suited to any 24V system that needs a reliable, high-current 12V-to-24V conversion stage — common in trucks, buses, caravans, marine vessels, off-grid installations, and industrial control cabinets. Its remote on/off and parallel-operation capability make it easy to integrate into existing electrical systems, and its adjustable output allows it to double as a charger for a 12V starter or accessory battery within a 24V-based setup.
