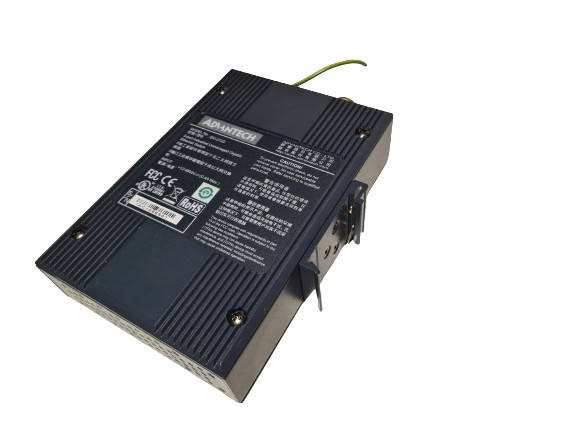

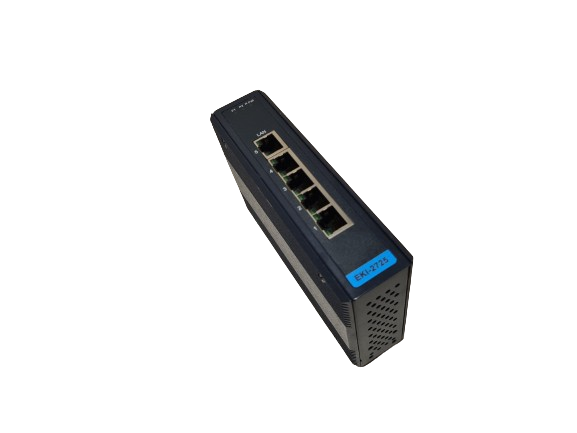

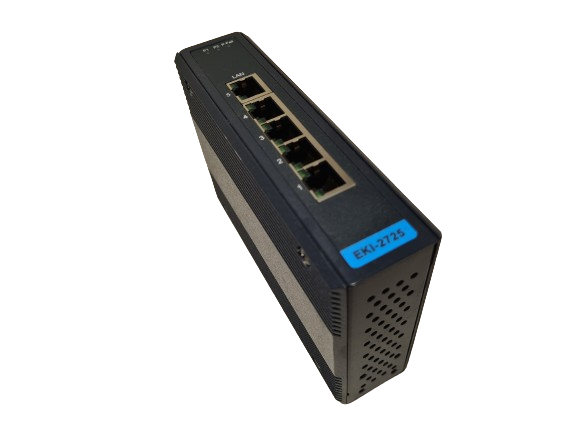

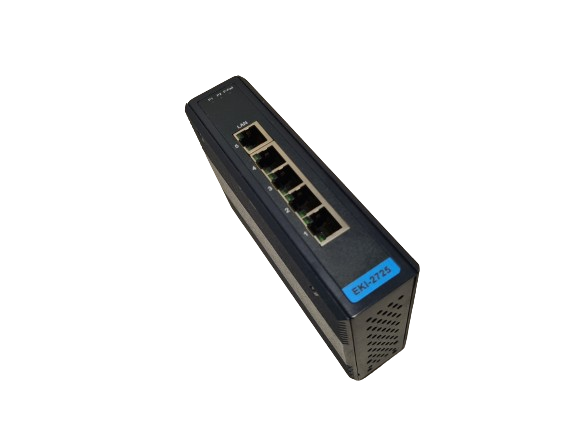

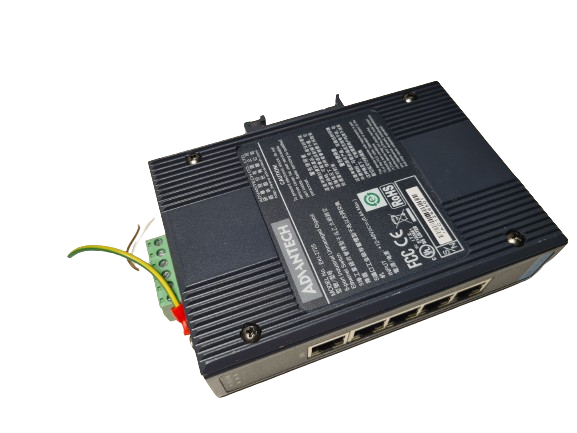

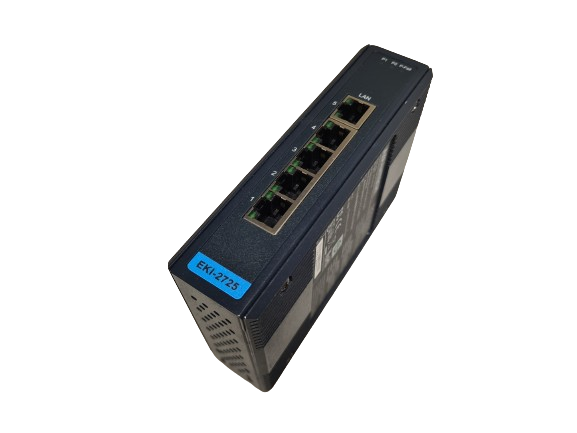

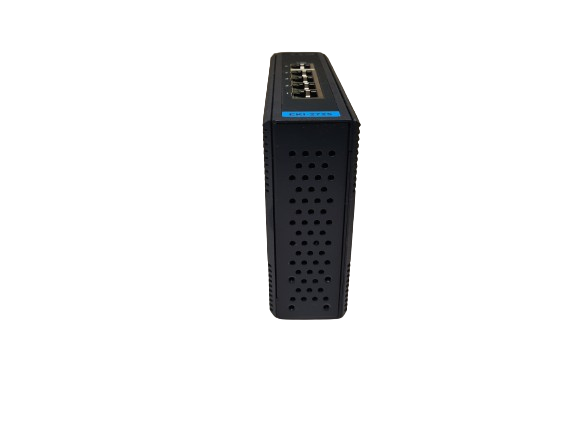

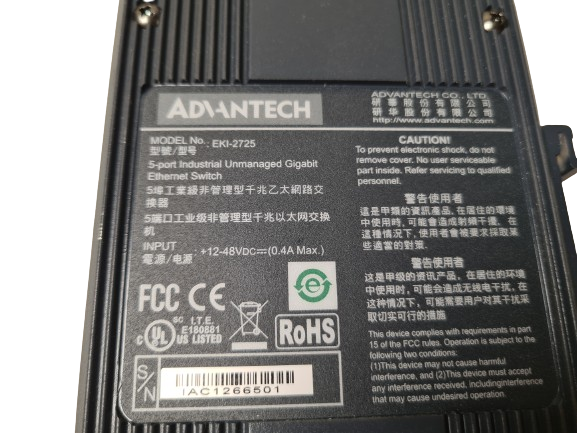

Advantech EKI-2725 Industrial Unmanaged Gigabit Ethernet Switch

5-port DIN-rail Gigabit Ethernet switch with redundant power input for industrial networking

Overview

This is an Advantech EKI-2725 Industrial Unmanaged Gigabit Ethernet Switch, a compact 5-port DIN-rail switch designed for reliable networking in industrial automation environments. With a slim IP30-rated metal enclosure, redundant DC power input, and robust surge and ESD protection, it is built to withstand demanding electrical and environmental conditions while providing straightforward, plug-and-play Gigabit Ethernet connectivity.

Key Features

  • 5 Gigabit Ethernet ports: Supports 10/100/1000Mbps with Auto Negotiation on all ports.
  • Jumbo frame support: Handles jumbo frame transmission up to 9Kbytes for efficient large-payload data transfer.
  • Robust surge and ESD protection: Provides 3,000 VDC surge (EFT) protection on the power line and 4,000 VDC Ethernet ESD protection.
  • Slim DIN-rail metal design: Compact IP30-rated metal mechanism suited to space-constrained control cabinet installation.
  • Redundant power input: Supports dual, redundant 12–48 VDC unregulated power inputs along with a power-fail (P-Fail) relay for fault notification.
  • Wide operating temperature range: Rated for continuous operation from -10°C to 60°C.

What's Included

Model Function Qty
EKI-2725 5-port industrial unmanaged Gigabit Ethernet switch 1

Brand: Advantech | Ports: 5 x RJ-45 | Protection Class: IP30

Technical Specifications

Product type: EKI-2725, industrial unmanaged Gigabit Ethernet switch.

Ports: 5 x RJ-45 Gigabit Ethernet, 10/100/1000Mbps Auto Negotiation.

Jumbo frame support: Up to 9Kbytes.

Surge protection: 3,000 VDC (power line, EFT).

ESD protection: 4,000 VDC (Ethernet).

Housing: Slim, DIN-rail mountable, IP30-rated metal mechanism.

Power input: 2 x unregulated 12–48 VDC (redundant).

Power consumption: Max. 4.6W.

Fault output: 1 relay output (P-Fail).

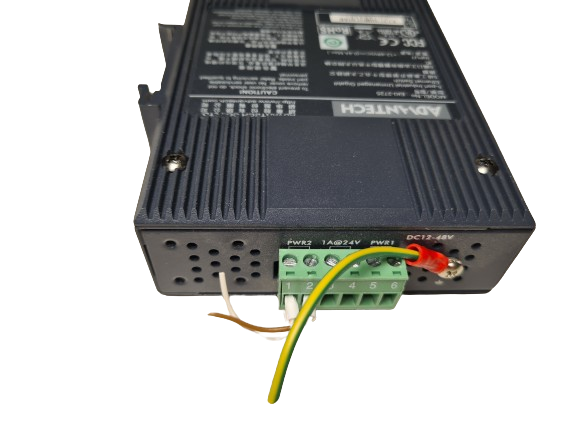

Connectors: 5 x RJ-45; 6-pin removable screw terminal (power & relay).

Operating temperature: -10°C to 60°C.

Compatibility & Applications

This switch is suited to industrial automation and control cabinet networking applications requiring reliable Gigabit Ethernet connectivity, robust electrical protection, and redundant power input for high-uptime operation. Buyers should confirm their DC power supply falls within the 12–48 VDC range and that the P-Fail relay output integrates with their existing fault monitoring or alarm system before installation.
