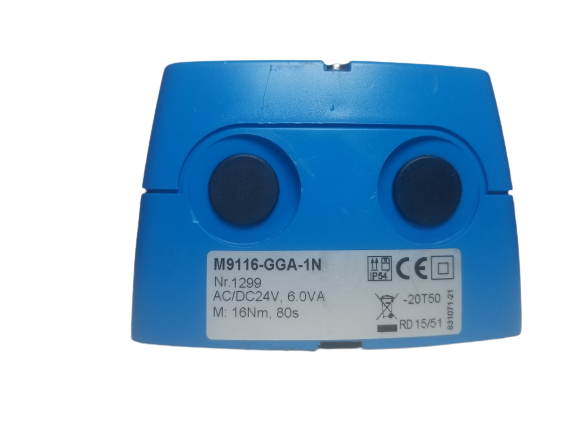

  • Johnson Controls actuator damper M9116-GGA-1N AC/DC24V, 60.VA 16Nm, 80s
  • Johnson Controls actuator damper M9116-GGA-1N AC/DC24V, 60.VA 16Nm, 80s
  • Johnson Controls actuator damper M9116-GGA-1N AC/DC24V, 60.VA 16Nm, 80s
  • Johnson Controls actuator damper M9116-GGA-1N AC/DC24V, 60.VA 16Nm, 80s
  • Johnson Controls actuator damper M9116-GGA-1N AC/DC24V, 60.VA 16Nm, 80s
1 6

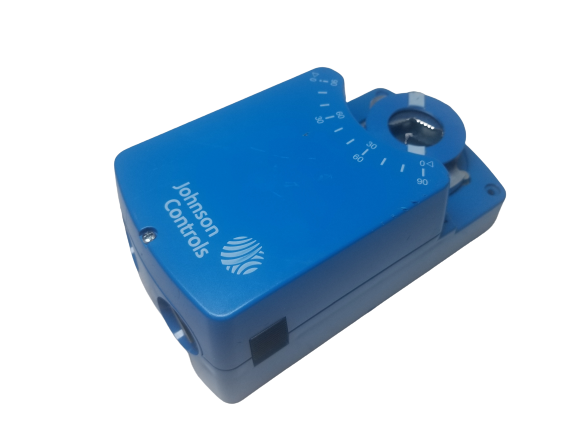

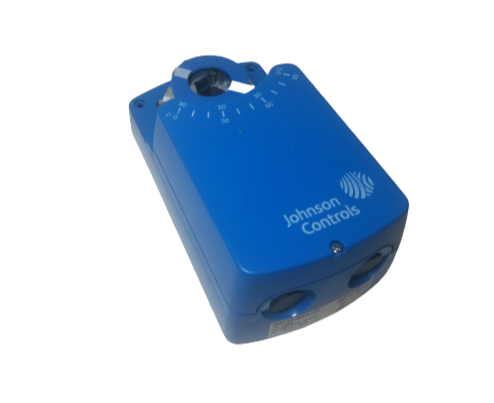

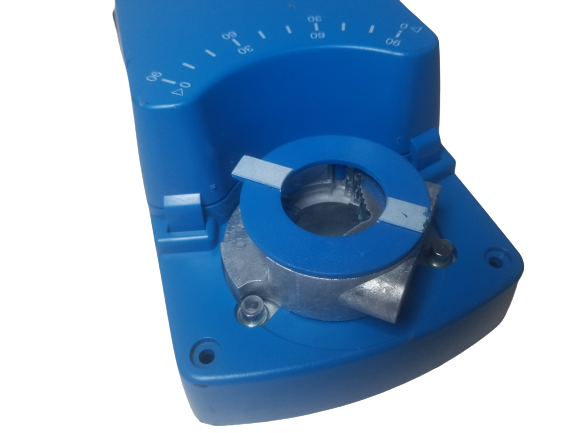

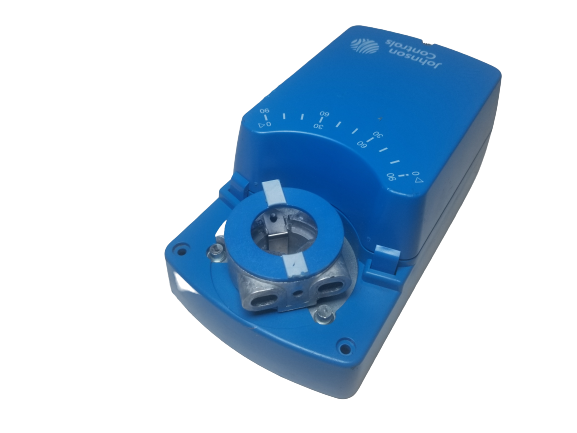

Johnson Controls actuator damper M9116-GGA-1N

€140,00
€140,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Johnson Controls actuator damper M9116-GGA-1N AC/DC24V, 60.VA 16Nm, 80sJohnson Controls actuator damper M9116-GGA-1N AC/DC24V, 60.VA 16Nm, 80sJohnson Controls actuator damper M9116-GGA-1N AC/DC24V, 60.VA 16Nm, 80sJohnson Controls actuator damper M9116-GGA-1N AC/DC24V, 60.VA 16Nm, 80sJohnson Controls actuator damper M9116-GGA-1N AC/DC24V, 60.VA 16Nm, 80s

Johnson Controls M9116-GGA-1N Damper Actuator

Proportional damper actuator for HVAC air control applications

Overview

This is a Johnson Controls M9116-GGA-1N damper actuator, providing a running torque of 140 lb·in (16 N·m) for driving HVAC dampers up to 3 m² in size. Powered from a 24VAC/VDC supply and accepting a proportional 0(2)-10 VDC or 0(4)-20 mA control signal, this actuator is designed for modulating damper control within building automation and HVAC systems.

Key Features

  • High running torque: Provides 140 lb·in (16 N·m) of running torque, suited to larger damper sizes.
  • Proportional control signal: Accepts 0(2)-10 VDC or 0(4)-20 mA control signals for precise modulating control.
  • Damper size compatibility: Suited to dampers up to 3 m².
  • Flexible AC/DC power supply: Operates from a 24VAC/VDC supply at 50/60Hz, with a 6.4 VA rating.
  • Resistive feedback compatibility: Compatible with resistive feedback in the 100 to 10,000 ohm range.
  • Simple electrical connection: Uses screw terminals with 1/2" conduit connectors.
  • 80-second running time: Provides a defined full-stroke actuation time.

What's Included

Model Function Qty
M9116-GGA-1N Proportional damper actuator 1

Model: M9116-GGA-1N | Brand: Johnson Controls | Damper Size: Up to 3 m²

Technical Specifications

Product type: M9116-GGA-1N, damper actuator.

Running torque: 140 lb·in (16 N·m).

Power requirement: 24VAC/VDC.

VA rating: 6.4.

Resistive feedback range: 100 to 10,000 ohms.

Electrical connection: Screw terminals; 1/2" conduit connectors.

Running time: 80 s.

Damper size: Up to 3 m².

Control signals: Proportional 0(2)-10 VDC / 0(4)-20 mA.

Supply voltage: 24 VAC/DC (50/60Hz).

Compatibility & Applications

This actuator is suited to HVAC systems requiring modulating control of dampers up to 3 m² in size, driven by a proportional analog control signal from a building automation controller. Buyers should confirm their control system provides a compatible 0(2)-10 VDC or 0(4)-20 mA signal and that the actuator's torque rating matches their specific damper before installation.
