Delta LYTE 75W DRL-24V75W1AZ Switching Power Supply Module

DIN rail-mount 24V DC power supply with universal AC/DC input range

Overview

The Delta LYTE 75W DRL-24V75W1AZ is a compact switching power supply module delivering a stable 24V DC output at up to 75W (3.125A). It accepts a wide universal AC input range of 85-264Vac (or 120-375Vdc), making it adaptable across different regional power standards. Housed in a lightweight plastic case with convection cooling and a green LED "DC OK" indicator, this power supply is well suited for powering PLCs, sensors, and other 24V control system components in industrial control panels.

Key Features

  • Stable 24V DC output: Delivers up to 75W (3.125A) for powering control system components.
  • Universal input range: Accepts 85-264Vac (nominal 100-240Vac, 47-63Hz) or 120-375Vdc for global compatibility.

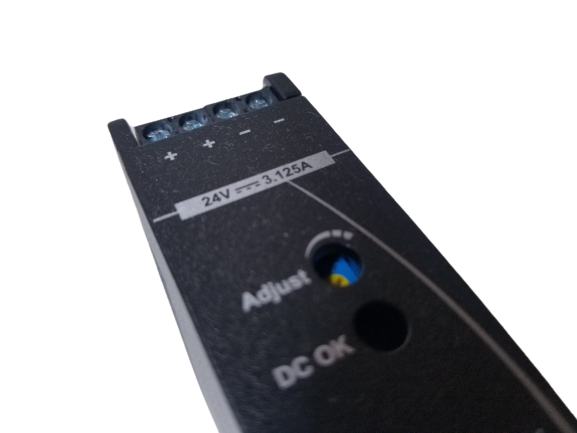

  • DC OK indicator: Green LED provides at-a-glance confirmation of proper output operation.
  • Convection cooling: Fanless design for quiet, maintenance-free operation.
  • Compact, lightweight housing: Plastic case/chassis at just 0.22 kg, suited for space-constrained panel installations.

What's Included

Item Function Qty
Delta LYTE DRL-24V75W1AZ Switching power supply module, 24V/75W 1

Brand: Delta | Series: LYTE | Model: DRL-24V75W1AZ

Technical Specifications

Output: 24V, 75W, 3.125A.

AC input: Range 85-264Vac; nominal 100-240Vac; frequency range 47-63Hz (nominal 50-60Hz).

DC input: Range 120-375Vdc.

Case/chassis: Plastic.

Indicator: Green LED (DC OK).

Cooling system: Convection.

Dimensions (H x W x D): 123.6 x 27 x 102 mm.

Unit weight: 0.22 kg (0.49 lb).

Compatibility & Applications

This power supply is well suited for powering 24V DC control system components — such as PLCs, I/O modules, sensors, and relays — within industrial control panels and machine builds. Its universal AC/DC input range and compact DIN rail-style footprint make it a practical replacement or upgrade part for panel builders and maintenance teams standardizing on 24V control voltage.
