Mitsubishi FR-F740-00380-EC FR-F700 Inverter, 18.5kW, 400/415V AC, 38A

Energy-saving variable frequency drive for general-purpose pumps and fans

Overview

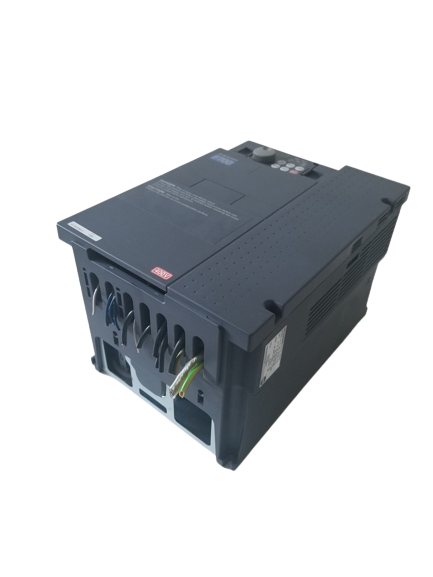

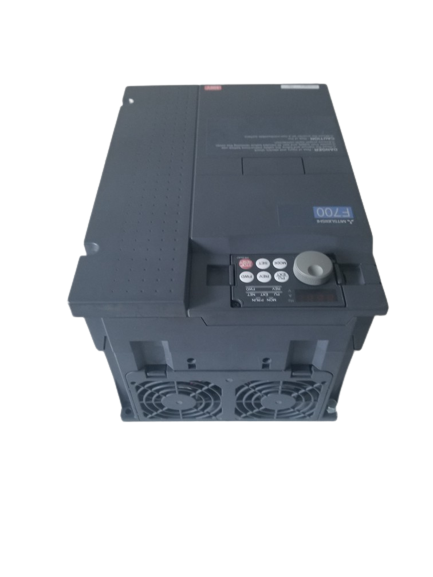

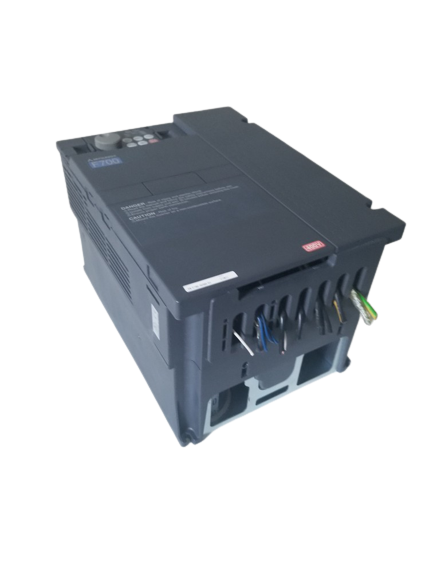

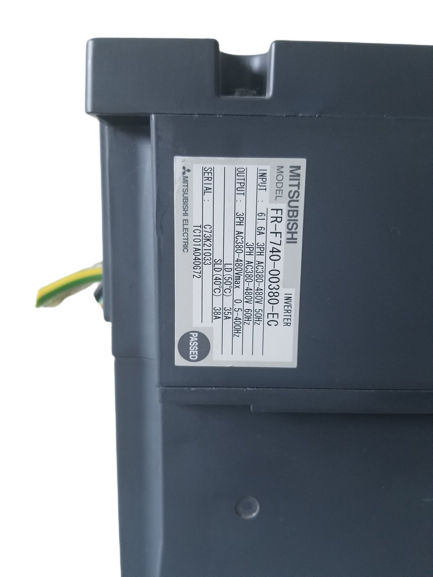

This is a Mitsubishi FR-F740-00380-EC, an 18.5kW inverter from the FR-F700 series, purpose-built for energy-saving control of general-purpose pumps and fans. Rated for a three-phase 400/415V AC supply at 38A, it features Mitsubishi's optimum excitation control (OEC) technology, which combines maximum drive utilization with minimal power consumption. This unit is used, in working condition, weighing 7.5kg with an integrated EMC filter and IP20 protection.

Key Features

  • Optimum excitation control (OEC): Maximizes drive efficiency while minimizing power consumption for fan and pump applications.
  • Integrated EMC filter: Built-in filtering reduces electrical interference without needing external components.
  • Automatic restart after power failure: Maintains process continuity following brief power interruptions.
  • Extended PID function: Supports advanced closed-loop process control for HVAC, water treatment, and building automation.
  • Simple Magnetic Flux Vector Control: Improves torque performance and speed regulation accuracy.
  • 15 preset speeds: Flexible multi-speed operation for varied process requirements.
  • CE version (EC suffix): Varnished PCB construction standard for European Union compliance.

What's Included

Model Function Qty
FR-F740-00380-EC Variable frequency inverter, 18.5kW 1

Condition: Used. Internal part reference: FRF74000380EC.

Technical Specifications

Supply voltage: 400/415V AC (rated range 380-480V, -15%/+10%).

Rated current: 38A.

Power rating: 18.5 kW.

Phases: Three-phase.

Duty type: Variable torque.

Output frequency: 0.5–400 Hz.

IP rating: IP20.

Ambient operating temperature: -10°C to +50°C.

Manufacturer range/series: Mitsubishi Electric FR, F700 series.

Dimensions / weight: 300 (H) x 220 (W) x 190 (D) mm; 7.5 kg.

Compatibility & Applications

Part of Mitsubishi's FR-F700 power-saving inverter series, this drive is well suited to general-purpose pump and fan applications in HVAC, water processing, and building automation, where energy-saving variable-speed motor control is a priority.
