Omron E3X-DA11-S Digital Fiber Amplifier Sensor

High-speed digital fiber optic amplifier with automatic power control and multiple power modes

Overview

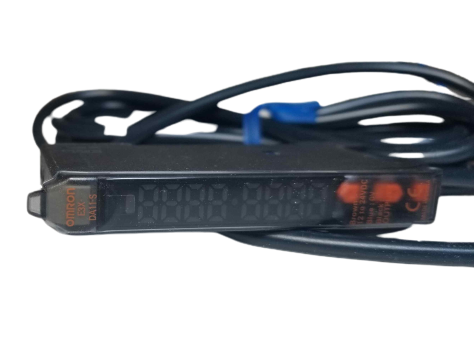

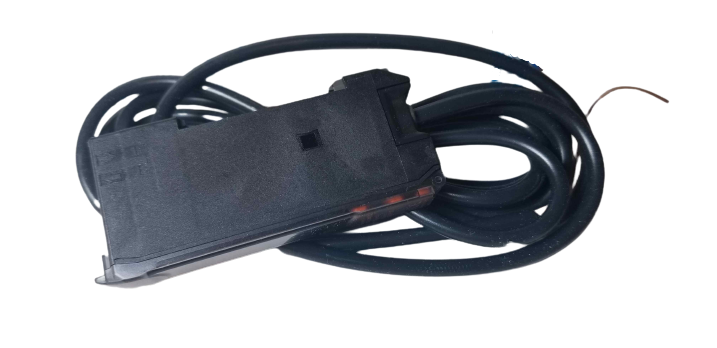

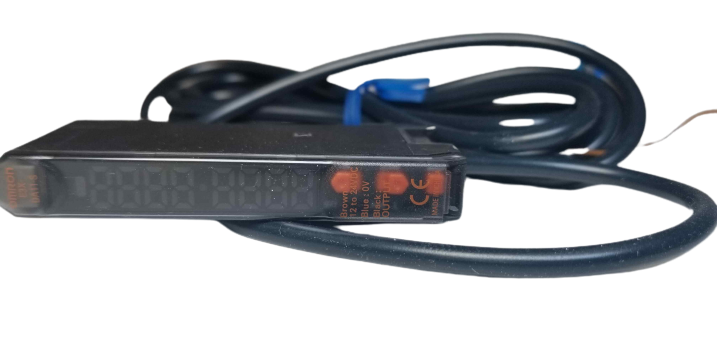

This is an Omron E3X-DA11-S Digital Fiber Amplifier Sensor, designed to provide fast, reliable fiber optic sensing for industrial automation applications. With super-high-speed response, automatic power control, selectable timer functions, and multiple power-saving modes, it offers flexible, precise detection performance. This item is a new open box unit.

Key Features

  • Flexible power supply: Operates on 12-24 VDC ±10%.
  • Multiple power modes: Normal mode, plus ECO1 and ECO2 power-saving modes for reduced consumption.
  • Fast response: Super-high-speed mode with operate/reset response time of 80 μs.
  • Automatic power control (APC): Always enabled, with high-speed emission current control and wide-range APC support.
  • Selectable timer functions: Timer disabled, OFF-delay, ON-delay, one-shot, or ON-delay + OFF-delay, adjustable from 1 ms to 5 s.
  • Built-in protection circuits: Power supply reverse polarity, output short-circuit, and output reverse polarity protection.
  • Flexible control output: NPN/PNP open collector control output and APC alarm output.

What's Included

Model Function Qty
E3X-DA11-S Digital fiber amplifier sensor 1

Brand: Omron | Condition: New, open box

Technical Specifications

Power supply voltage: 12 to 24 VDC ±10%, ripple (p-p) 10% max.

Power consumption (Normal mode): 960 mW max. (40 mA max. at 24 VDC, 80 mA max. at 12 VDC).

Power consumption (ECO1): 720 mW max. (30 mA max. at 24 VDC, 60 mA max. at 12 VDC).

Power consumption (ECO2): 600 mW max. (25 mA max. at 24 VDC, 50 mA max. at 12 VDC).

Control output/APC alarm output: Load power supply voltage 26.4 VDC max.; NPN/PNP open collector; load current 50 mA max.; residual voltage 2 V max.

External input: No-voltage input (contact/transistor).

Protection circuits: Power supply reverse polarity protection, output short-circuit protection, output reverse polarity protection.

Response time (super-high-speed mode): Operate or reset, 80 μs.

Automatic power control (APC): Always enabled; high-speed control of emission current; wide-range APC for the E3X-DA[]R-S.

Timer: Selectable timer disabled, OFF-delay, ON-delay, one-shot, or ON-delay + OFF-delay; adjustable 1 ms to 5 s (1-ms increments 1-20 ms, 10-ms increments 20-200 ms, 100-ms increments 200 ms-1 s, 1-s increments 1-5 s).

Compatibility & Applications

This fiber amplifier is well suited to industrial automation applications requiring fast, precise fiber optic sensing with flexible timer and power-saving options. Buyers should confirm compatibility with their fiber optic sensor heads and 12-24 VDC power supply before use.
