Phoenix Contact 2940391 Relay Module

  • Phoenix Contact 2940391 Relay Module
  • Phoenix Contact 2940391 Relay Module
  • Phoenix Contact 2940391 Relay Module
1 4

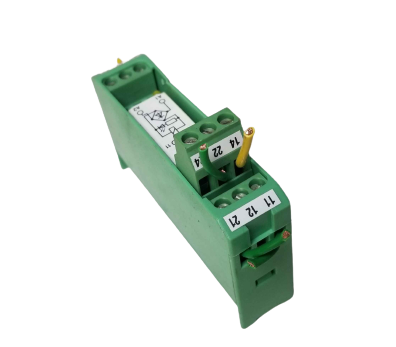

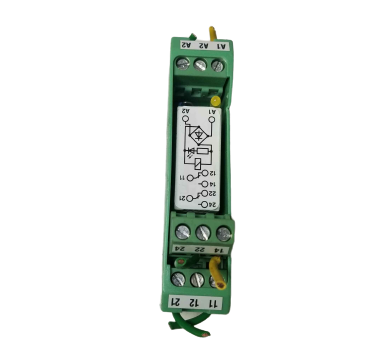

Phoenix Contact 2940391 Relay Module

€40,00
€40,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Phoenix Contact 2940391 Relay ModulePhoenix Contact 2940391 Relay ModulePhoenix Contact 2940391 Relay Module
Phoenix Contact 2940391 Relay Module oil Current 18 mA
Coil Termination Screw
Coil Type Non-Latching
Coil Voltage 24 VAC, 24 VDC
Contact Current Rating 5 A
Contact Form DPDT (2 Form C)
Contact Material Silver Nickel (AgNi)
Contact Termination Screw
Current Rating 5 A
Mounting Style DIN Rail Mount
Packaging Each
Power Consumption 120 W
Product Industrial Relays
Product Type Industrial Relays
Series EMG REL
Switching Voltage 250 VAC, 250 VDC

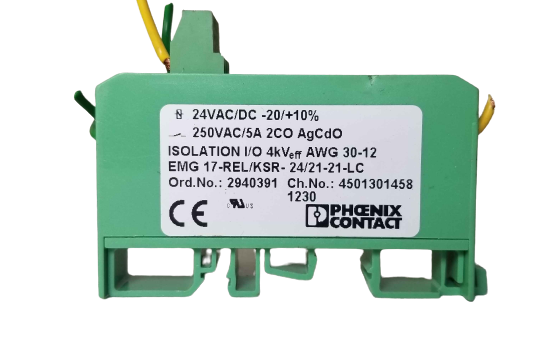

EMG 17-REL/KSR- 24/21-21-LC
Order No.: 2940391
input voltage 24 V AC/DC
Input voltage range in reference to UN 0.8 ... 1.1
Nominal input current at UIN 18 mA
Typical response time 8 ms
Maximum switching voltage 250 V AC/DC
Maximum inrush current 6 A
Limiting continuous current 5 A
General data
Width 17.5 mm
Height 62.5 mm
Depth 75 mm
Test voltage relay winding/relay contact 4 kV AC (50 Hz, 1 min)
Test voltage relay contact/relay contact 1 kV AC (50 Hz, 1 min)
Ambient temperature (operation) -20 °C ... 40 °C
Ambient temperature (storage/transport) -20 °C ... 70 °C
