Phoenix Contact EMR-IAC/1/UC-1A Undercurrent Relay

€250,00
€250,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Phoenix Contact EMR-IAC/1/UC-1A Undercurrent RelayPhoenix Contact EMR-IAC/1/UC-1A Undercurrent RelayPhoenix Contact EMR-IAC/1/UC-1A Undercurrent RelayPhoenix Contact EMR-IAC/1/UC-1A Undercurrent Relay

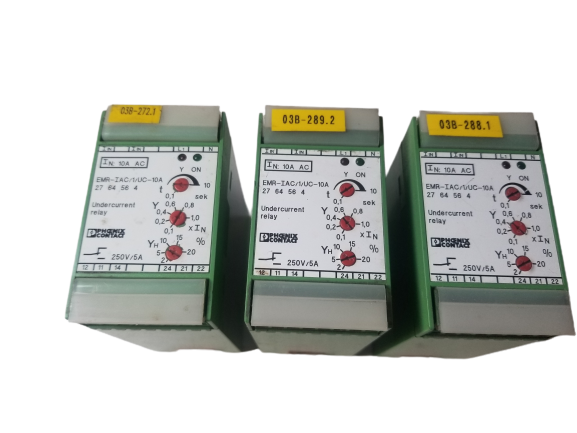

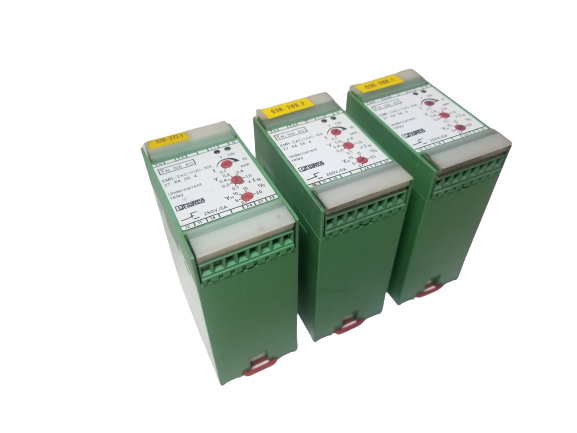

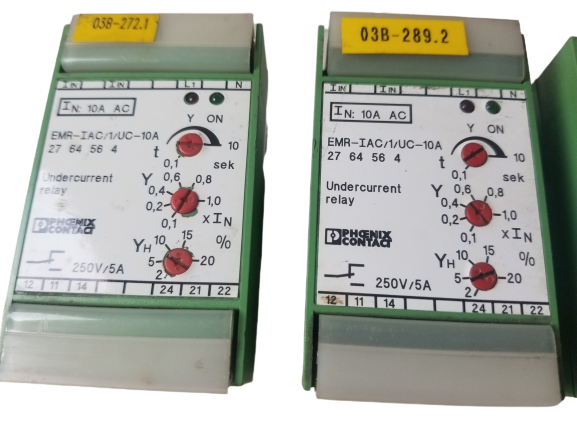

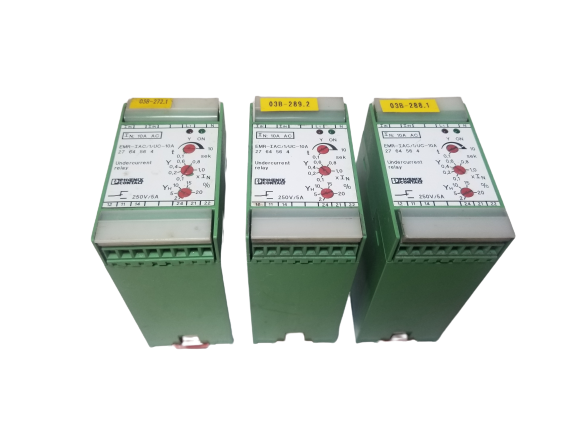

3x Phoenix Contact EMR-IAC/1/UC-1A Undercurrent Relay
Brand: Phoenix Contact
Model: EMR-IAC/1/UC-1A
Product Type: Undercurrent Relay
Made In: Germany

Nominal power consumption < 5 VA
Nominal current IN 1 A AC
Max. input current 4 A AC
Overload capacity 8 A (10 s)
Maximum temperature coefficient < 0.1 %
Setting range of the nominal value 10 % ... 100 % (with reference to IN)
Setting range of the hysteresis 2 % ... 20 % (with reference to the setpoint)
Typical response time 0.1 s ... 10 s
Typical release time 200 ms
Contact type Single contact, 2 changeover contacts
Contact material AgNi 90/10, + 5 µm hard gold-plated
Maximum switching voltage 24 V AC/DC
250 V AC/DC (when the gold layer is destroyed)
Limiting continuous current 0.5 A
5 A (when the gold layer is destroyed)
Maximum inrush current 0.2 A
6 A (when the gold layer is destroyed)
Interrupting rating (ohmic load) max. 5 W (at 24 V DC)
120 W (at 24 V DC - Value applies when the gold layer is destroyed)
40 W (at 48 V DC - Value applies when the gold layer is destroyed)
35 W (at 60 V DC - Value applies when the gold layer is destroyed)
30 W (at 110 V DC - Value applies when the gold layer is destroyed)
55 W (at 220 V DC - Value applies when the gold layer is destroyed)
5 VA (for 24 V AC)
1100 VA (at 250 V AC - Value applies when the gold layer is destroyed)



The price here is per Lot
