Bosch Rexroth IndraControl L40 CML40.2-NP-330-NA-NNN-NW Controller

PLC/motion logic control platform with Ethernet and PROFIBUS connectivity

Overview

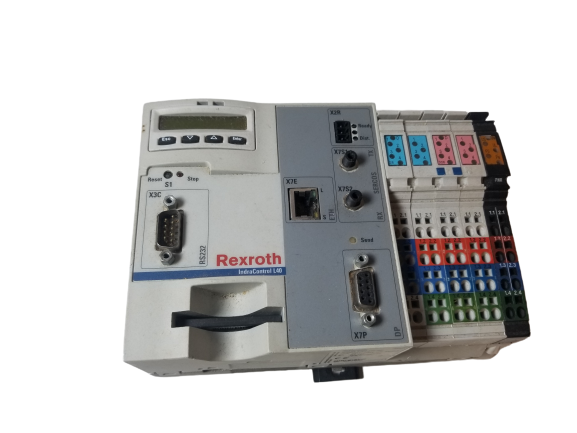

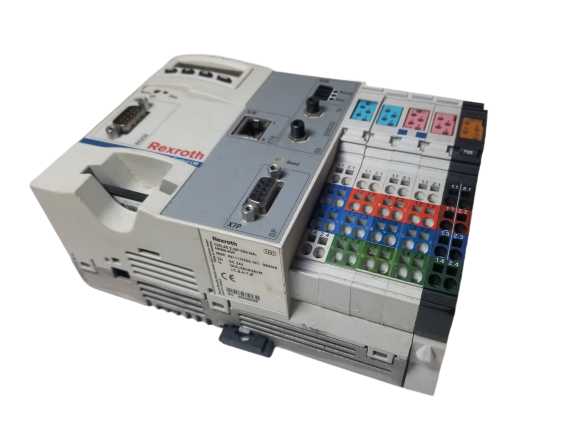

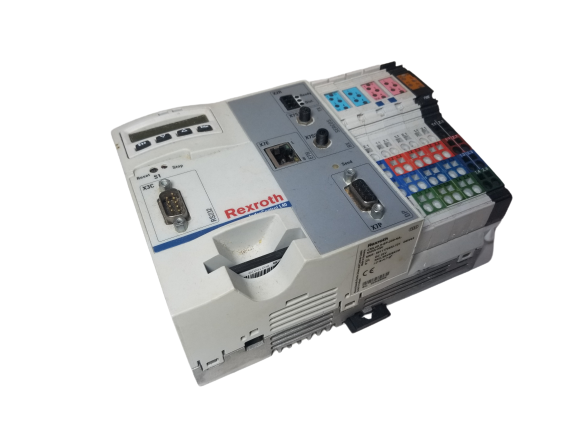

This is a Bosch Rexroth IndraControl L40, CML40.2-NP-330-NA-NNN-NW, an industrial controller from Rexroth's IndraControl L40 product line built on an AMD Geode LX800 processor. It's a platform capable of satisfying both motion logic and PLC applications, offering built-in Ethernet and RS-232 interfaces plus optional PROFIBUS DP and SERCOS communication modules, all in a compact DIN-rail mounted enclosure.

Key Features

  • Combined PLC and motion logic platform: AMD Geode LX800, 500 MHz processor handling both standard PLC control tasks and motion-related logic applications.
  • Built-in communication interfaces: RS-232 (D-sub, 9-pin), Ethernet (RJ-45, 8-pin), and a compact flash card slot for program storage and data logging.
  • Optional fieldbus expansion: ProfiBus DP (D-sub female, 9-pin) and SERCOS (fiber optic Tx/Rx) interfaces available for demanding fieldbus and motion control networks.
  • 8 digital inputs and 8 digital outputs: Standard onboard I/O for direct connection to field devices, expandable with additional Inline I/O terminals.
  • 8-digit LCD display: Onboard status display for local diagnostics and monitoring.
  • Segmented power terminal protection: Voltage jumper-based segmentation of the main power circuit, protecting power terminals and the unit from overvoltage conditions.

What's Included

Model Function Qty
CML40.2-NP-330-NA-NNN-NW PLC/motion logic controller 1

Technical Specifications

Processor: AMD Geode LX800, 500 MHz.

Memory: Min. 64 MB DRAM, min. 128 kbytes NvRAM.

I/O: 8 digital inputs, 8 digital outputs.

Communication: Ethernet (RJ-45), RS-232 (D-sub 9-pin), compact flash slot; optional ProfiBus DP and SERCOS.

Power supply: 24V DC (external), typ. 9W consumption (without additional modules/I/O).

Protection rating: IP20.

Dimensions / weight: 120 x 175.4 x 75.9 mm; approx. 0.76 kg.

Compatibility & Applications

Part of the Bosch Rexroth IndraControl L40 series and compatible with Rexroth accessories including blowers, SRAM modules, DeviceNet masters, and various digital/analog I/O terminals, this controller is well suited to industrial automation applications combining standard PLC logic with motion control requirements, connected via Ethernet or PROFIBUS-based automation networks.
