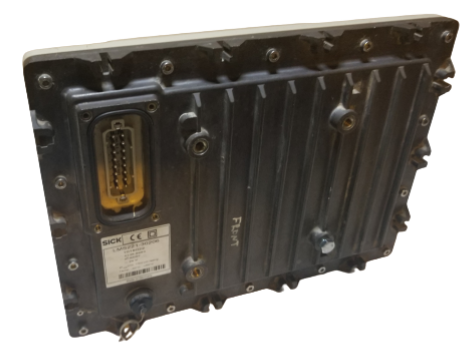

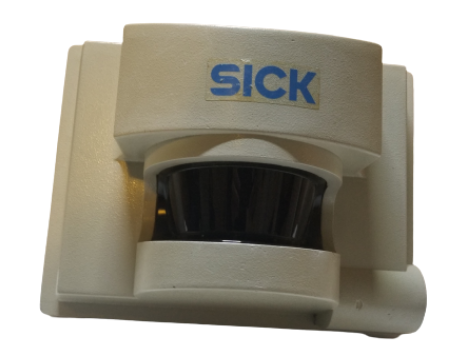

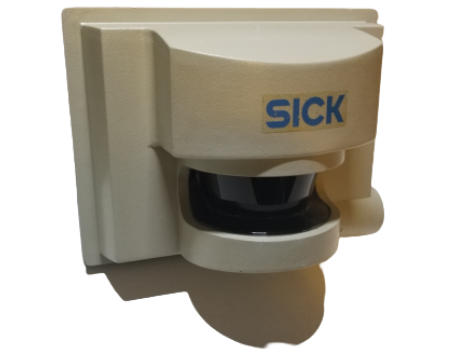

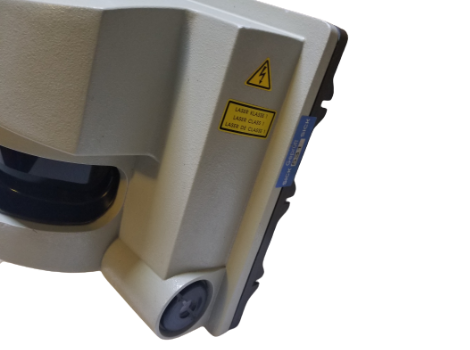

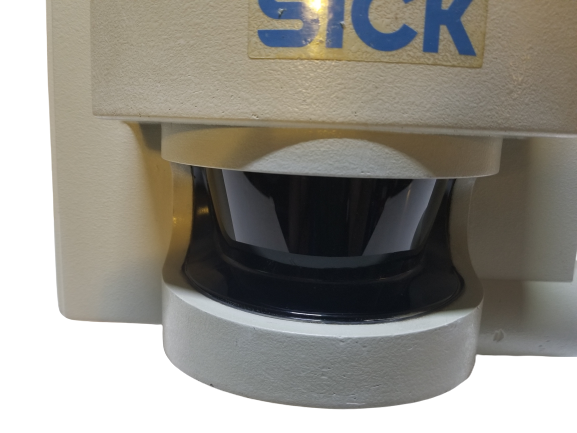

Sick 1018022 LMS221-30206 Laser Scanner Lidar Sensor use for robot or Arduino

€1.400,00
€4.000,00
€1.400,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Sick 1018022 LMS221-30206 Laser Scanner Lidar Sensor use for robot or ArduinoSick 1018022 LMS221-30206 Laser Scanner Lidar Sensor Use For Robot Or ArduinoSick 1018022 LMS221-30206 Laser Scanner Lidar Sensor Use For Robot Or ArduinoSick 1018022 LMS221-30206 Laser Scanner Lidar Sensor Use For Robot Or ArduinoSick 1018022 LMS221-30206 Laser Scanner Lidar Sensor Use For Robot Or Arduino

The Sick LMS221-30206 Laser Scanner Lidar Sensor is a versatile and reliable sensor used for robotics, Arduino projects, and other automation systems. With its high scanning accuracy and robust build, it’s perfect for outdoor applications and distance measurement tasks.

Product Specifications:

  • Model: Sick LMS221-30206
  • Part Number: 1018022
  • Type: Laser Scanner Lidar Sensor
  • Field of Application: Outdoor
  • Light Source: Infrared (905 nm)
  • MTBF (Mean Time Between Failures): 50,000 hours
  • Laser Class: 1, Eye-safe (EN/IEC 60825-1, 21CFR 1040.10)
  • Aperture Angle: 180°
  • Scanning Frequency: 75 Hz
  • Angular Resolution Options:
    • 0.25°
    • 0.5°
    • 1°
  • Heating: Yes
  • Operating Range: 0 m ... 80 m
  • Max. Range (with 10% Reflectivity): 30 m
  • Fog Correction: Yes
  • Performance:
    • Response Time: ≥ 13 ms
    • Detectable Object Shape: Almost any
    • Systematic Error: ± 35 mm (typical)
    • Statistical Error: ± 10 mm (typical)
  • Integrated Application: Field Evaluation
  • Number of Field Sets: 2 field triples (6 fields)
  • Simultaneous Evaluation Cases: 1 (3 fields)

Interfaces:

  • Serial (RS-232, RS-422): Yes
    • RS-232: 9.6 / 19.2 kBd
    • RS-422: 9.6 / 19.2 / 38.4 / 500 kBd
  • Switching Inputs: 1
  • Switching Outputs: 3
  • Optical Indicators: 0
  • Device Connectivity:
    • No Ethernet, CAN bus, PROFIBUS DP, PROFINET, or DeviceNet

Electrical and Mechanical:

  • Electrical Connection: 1 x 16-pin plug
  • Operating Voltage: ≤ 24 V DC
  • Power Consumption: 30 W + 140 W heating
  • Housing Material: Aluminum die-cast base plate with PU covering
  • Housing Color: Gray (RAL 7032)
  • Enclosure Rating: IP 67
  • Protection Class: II (VDE 0106/IEC 1010-1)
  • Weight: 9 kg
  • Dimensions:
    • Length: 241 mm
    • Width: 351 mm
    • Height: 265 mm
