Siemens Air Duct Temperature Regulator RLM162

Regular price
€250,00
Regular price
Sale price
€250,00
Siemens Air Duct Temperature Regulator RLM162Siemens Air Duct Temperature Regulator RLM162Siemens Air Duct Temperature Regulator RLM162

1x Siemens Air Duct Temperature Regulator RLM162


Actuators and controls must meet the following specification: ·

Control input: modulating, DC 0…10 V ·

Operating voltage: AC 24 V

Setting range nominal setpoint 0…50 °C

Setting range setpoint changeover 0…10 K

P-band 1…50 K

Integral action time with PI control selectable (600 / 180 / 120 s)

Dead zone with heating and cooling in sequence 1.5 K

Control outputs Y1, Y2 Voltage Current DC 0…10 V, continuous max. 1 mA

Switching output (Q13–Q14) Voltage Current AC 24…230 V max. 2 A

Max. cable length copper cable 1.5 mm2 For signal input B9 For switching inputs D1, D2 80 m 80 m

Contact sensing (inputs D1–M, D2–M) DC 6…15 V, 3…6 mA

Note:

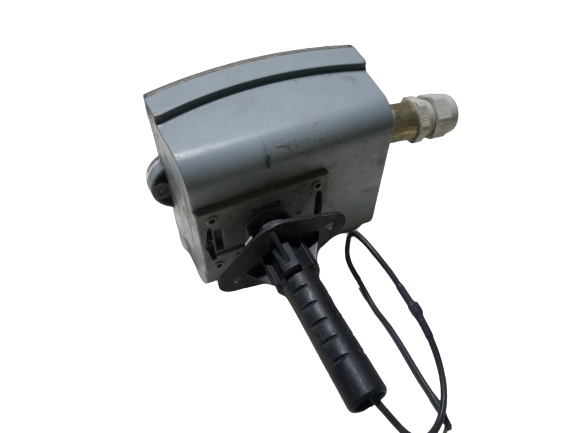

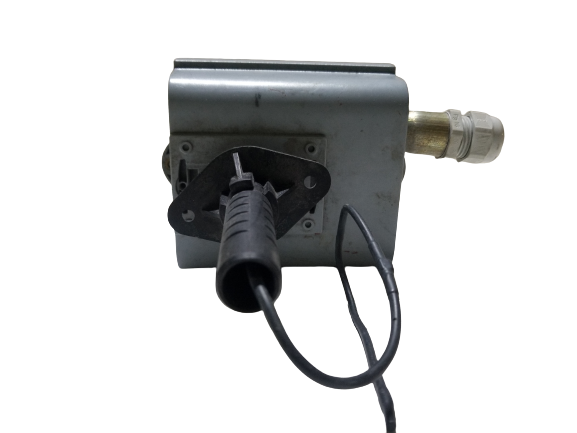

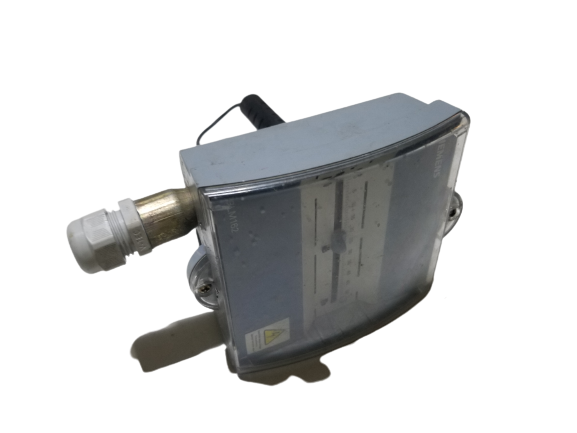

All photos show the actual appearance of the item for sale.
If you need more information about item, please feel free to contact us.
